Pg 3.27 S23P
Swivel Pivot pin fitting under
dome cap.
Head horizontal pivot fitting.
Idler Way, 2 Grease fittings plus shaft and
bearing assembly.
Infeed Rollers
Spring Post &
Cylinder Eye
Angle Brake
Vise Jaw &
Wear Plate

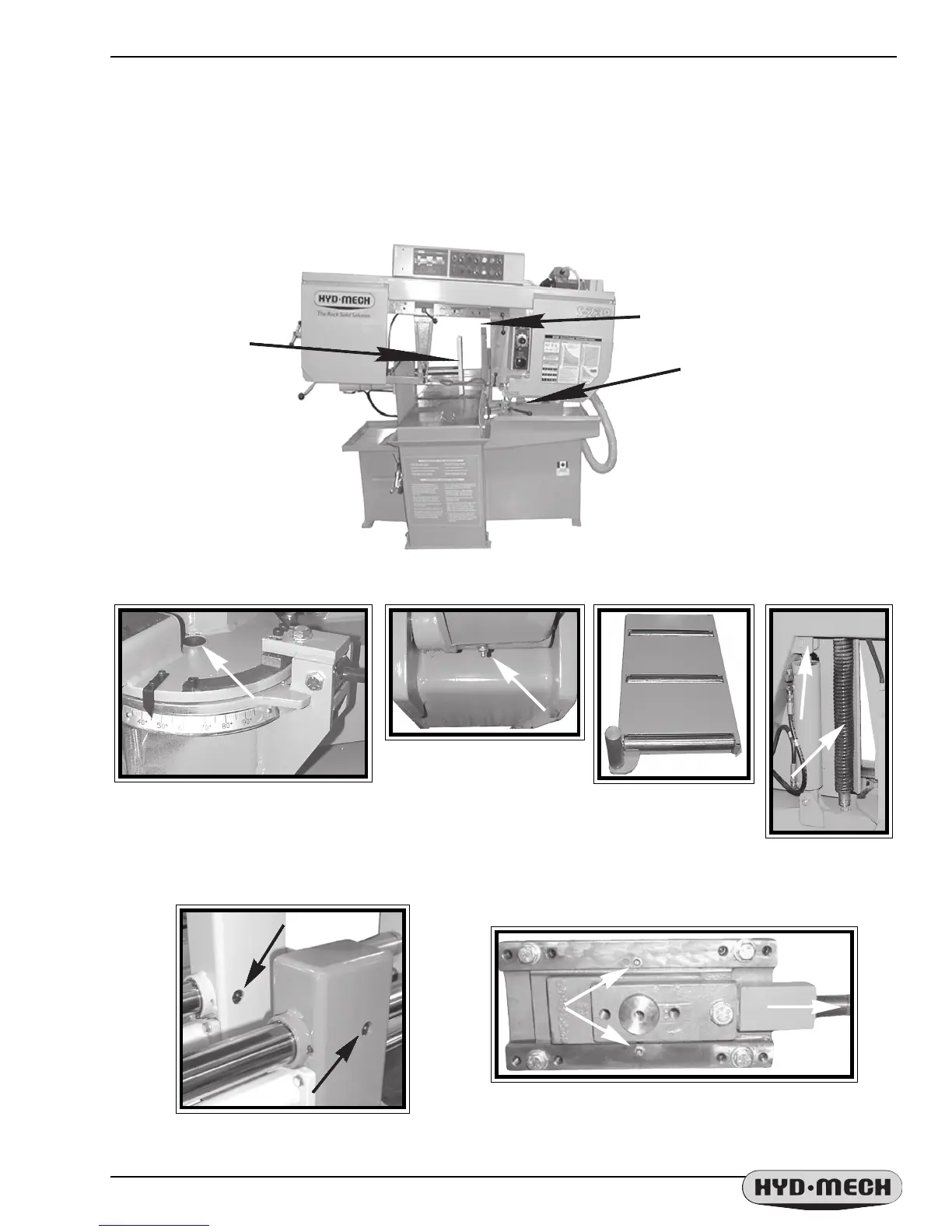

S-23P Front View - Surface Lubrication
Guide Arm Rail
LUBRICATION
The S-23P was designed to minimize the maintenance requirements. Moving assemblies and contact faces
need lubrication on a regular schedule which would depend on the frequency of use. The lubrication requirements
of the S-23P are pr
imarily the saw pivot points which are equipped with grease fittings and metal to metal surfaces
( S ) that require lubrication to prevent wear and seizure, as shown on this page and page.
NONO
NONO
NO
TE: TE:
TE: TE:
TE:
HyHy
HyHy
Hy
d-Mecd-Mec
d-Mecd-Mec
d-Mec
h rh r
h rh r
h r
ecommends Monthly lubricaecommends Monthly lubrica
ecommends Monthly lubricaecommends Monthly lubrica
ecommends Monthly lubrica
tion.tion.
tion.tion.
tion.
Vise shaft grease nipples.
S-23P has only one on the fixed
vise.
