Hyd-Mech V18 - Terminal Block 2 (TB2) Details

4.3
TERMINAL BLOCK 2

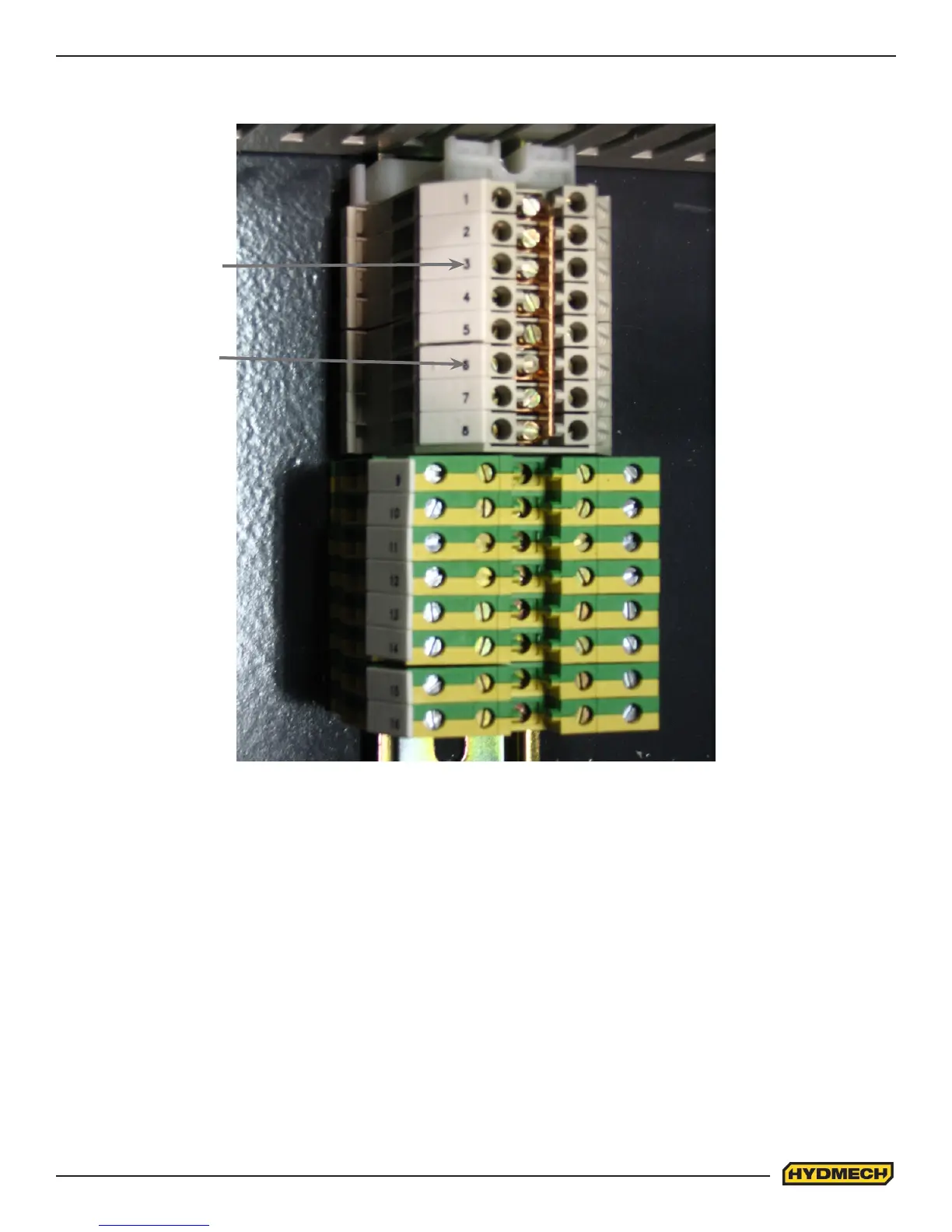

A close up view of TB2 is shown.
Page 4.1 shows the position of TB2 in the control panel.
For example, if the electrical schematic shows a terminal, described as
This indicates that the terminal is located on din rail TB2 and is terminal #3.
would indicate that the terminal is mounted on TB2 and is terminal #6.
TB2
3
TB2
6
TB2
3
TB2
6
