Hyd-Mech V18 - Terminal Block 6 (TB6) Details; Terminal Block 5 (TB5) Usage Note

4.6
TERMINAL BLOCK 6

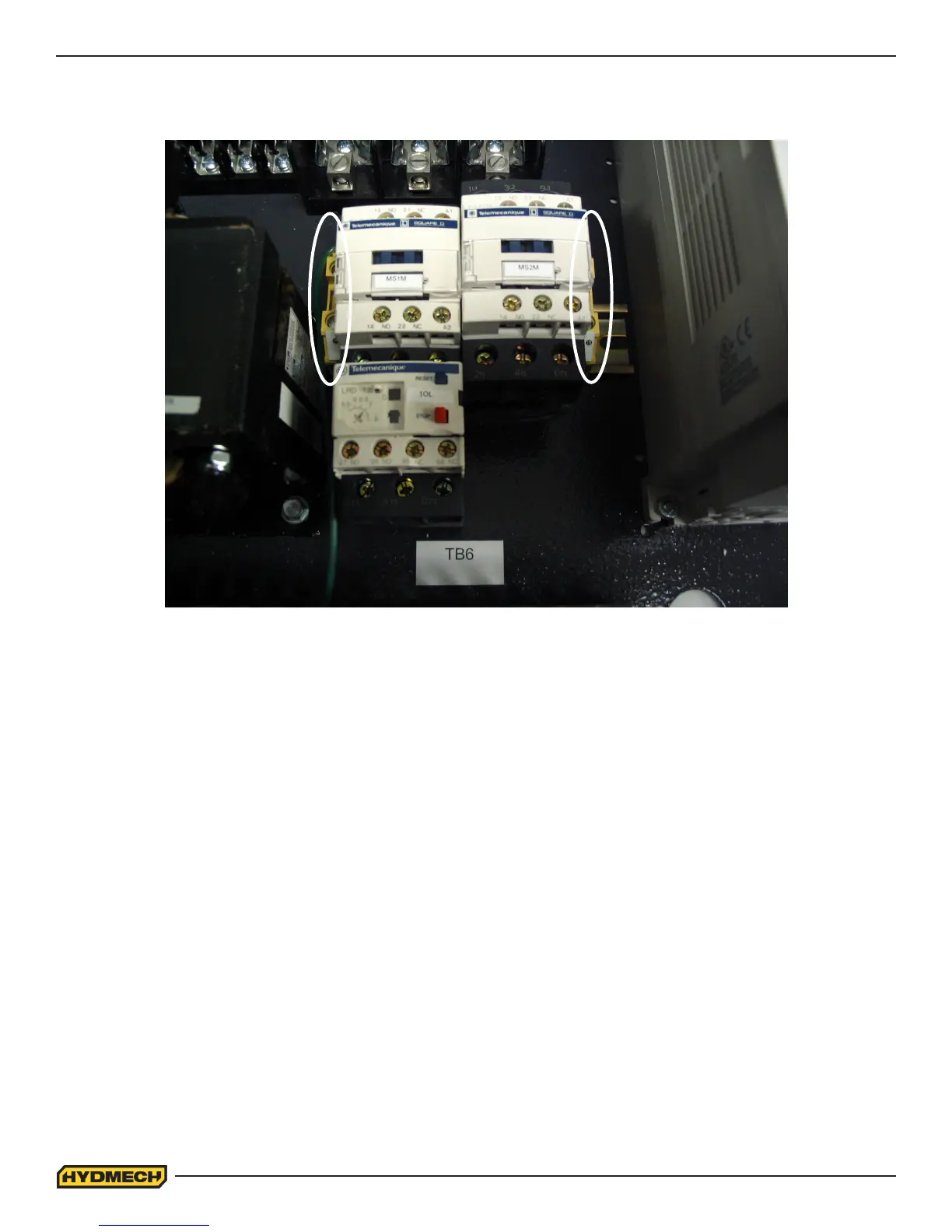

TB6 Contains ground terminals (partially visible) mounted either side of the contactors MS1M &
MS2M and are indicated on the schematic as:
The mounting location in the control panel is shown on page 1.
TB6
1
TB6
2
&
