Hyd-Mech V18 - Terminal Block 4 (TB4) HMI Panel

4.7
TERMINAL BLOCK 4

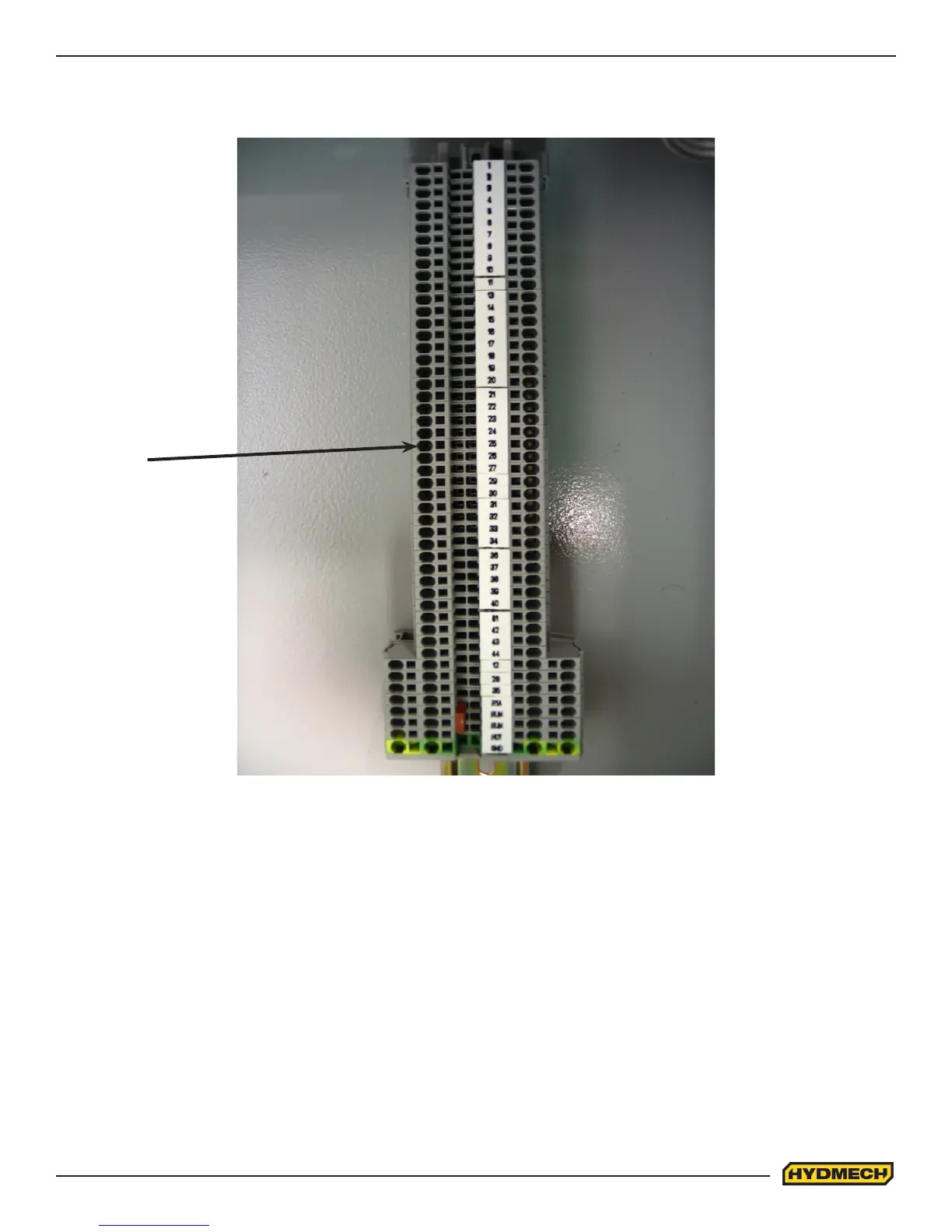

TB4 is located in the HMI panel (Human Machine Interface). This houses the selector switches and push buttons.
As in the main panel, the same concept applies. For example:
This indicates that the terminal is located on din rail TB4 and is terminal #25.
TB4
25
TB4
25
