Hydac EDS 3000 User Manual

Mat No.: 669756 / Revised: 05.04.2018 E
16

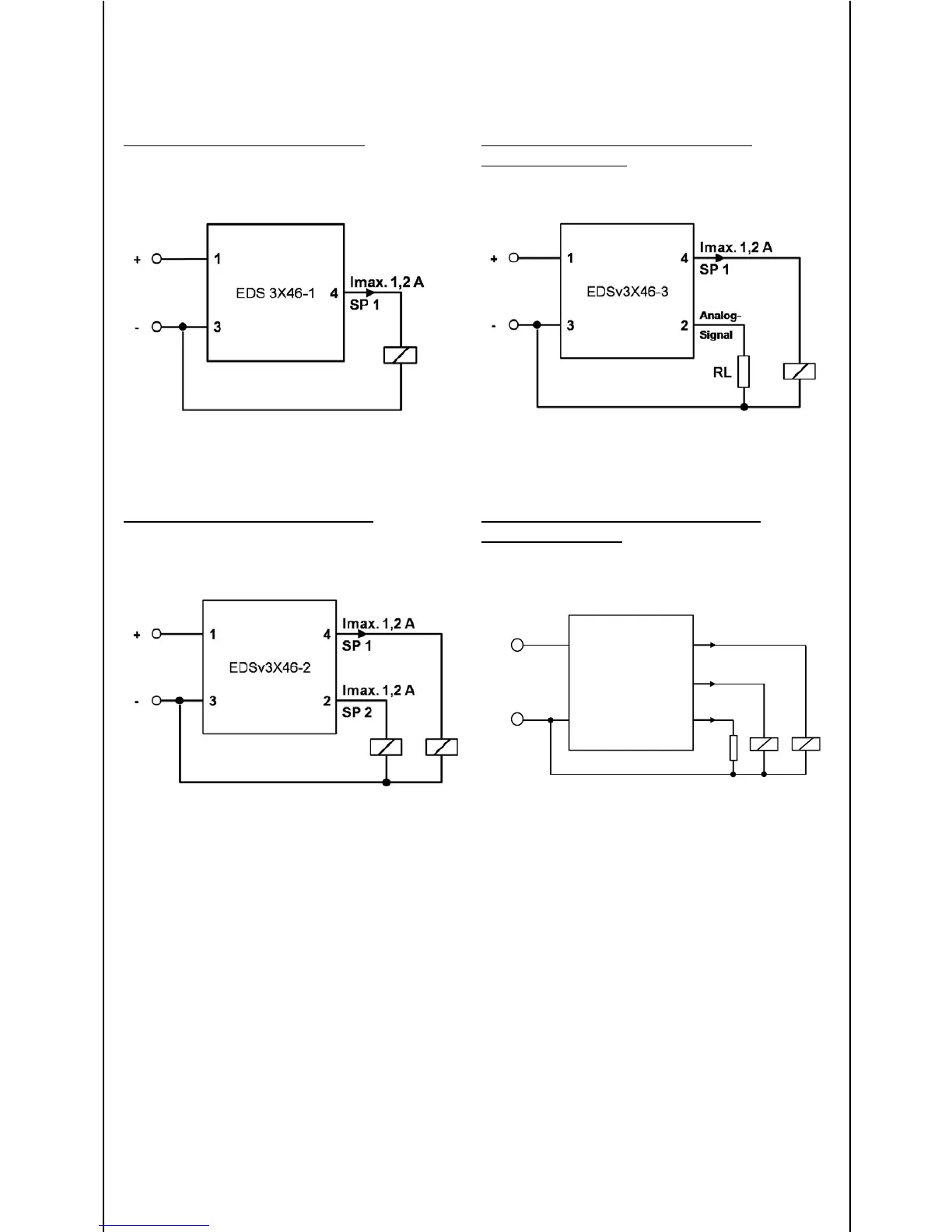

10 Wiring diagrams
Design with 1 switching output: Design with 1 switching output and
1 analogue output:
Plug: 4 pole, M12x1 Plug: 4 pole, M12x1
Design with 2 switching outputs: Design with 2 switching outputs and
1 analogue output
Plug: 4 pole, M12x1 Plug 5 pole, M12x1
Imax. 1.2 A
SP 1
+
-
Imax. 1.2 A
SP 2
Analog-
Signal
RL
1
3
2
4
EDS 3X48-5
5
