Hydac EDS 3000 User Manual

Mat No.: 669756 / Revised: 05.04.2018 E
7
6 DIgital display

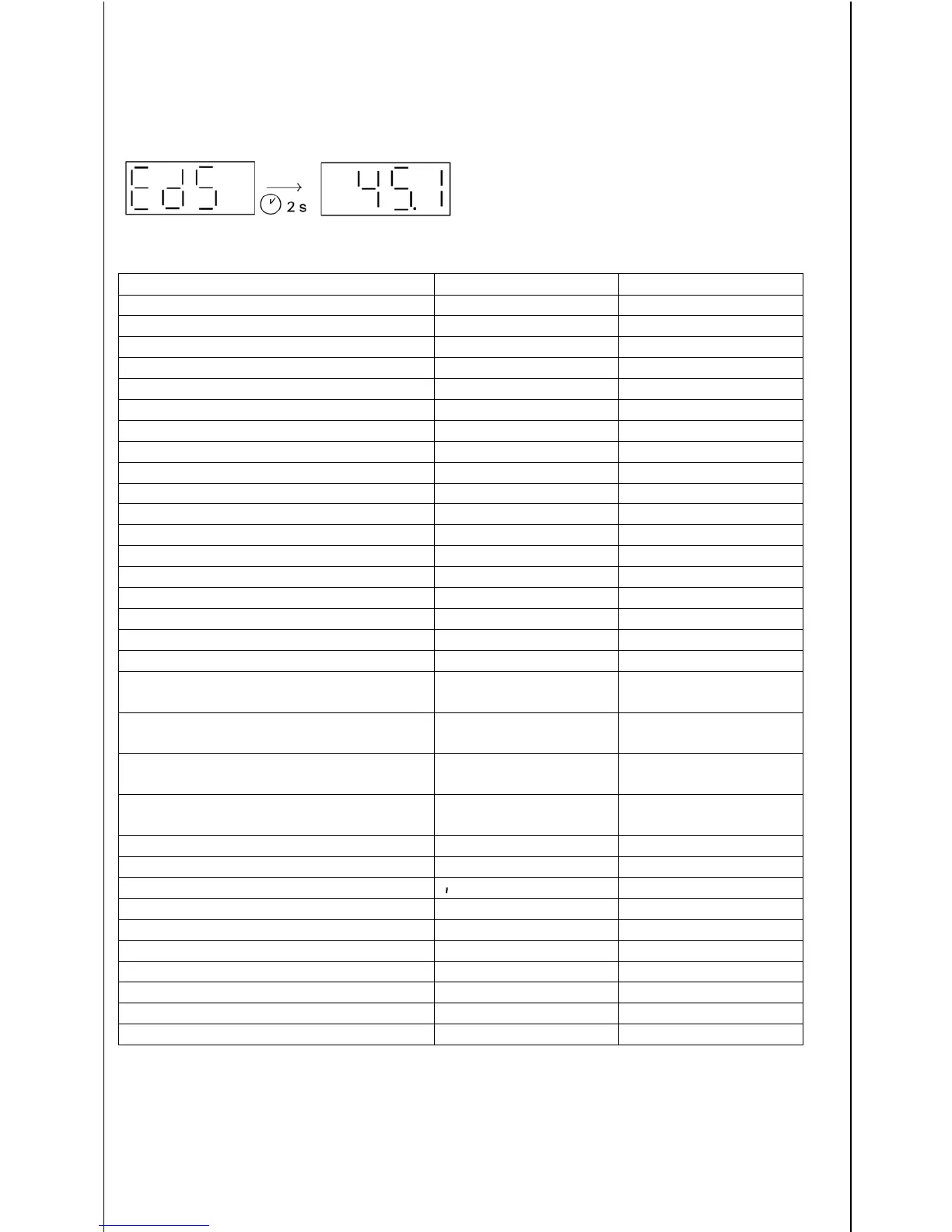

Once the power supply has been switched on, the device briefly flashes "EdS", and then
begins to show the current pressure.
Reading the digital display
Designation 7-segment displa
y
A
SCII
Switch point, output 1
sp1
SP1
Reverse switch point, output 1
rp1
RP1
Switch point, output 2
sp2
SP2
Reverse switch point, output 2
rp2
RP2
Pressure window upper value, output 1
fk1
FH1
Pressure window lower value, output 1
fl1
FL1
Pressure window upper value, output 2
fk2
FH2
Pressure window lower value, output 2
fl2
FL2
Reset
res
RES
Switch delay time, output 1
ds1
dS1
Switch delay time, output 2
ds2
dS2
Reverse switch delay time, output 1
dr1
dR1
Reverse switch delay time, output 2
dr2
dR2
Output 1
ov1
Ou1
Output 2
ov2
Ou2
Output 3
Ov3
Ou3
Current output
i
I
Voltage output
v
U
Normally open when hysteresis
function is active
kno
HNO
Normally open when window function
is active
fno
FNO
Normally closed when hysteresis
function is active
knc
HNC
Normally closed when window function
is active
fnc
FNC
Unit conversion
vni
Uni
Units in bar
bar
Bar
Units in MPa
mpa
MPa
Units in psi
psi
psi
Maximum value
ki
HI
Error display
err
ERR
Display
dis
DIS
Reset
rES
rES
Reset is completed
---
---
Extended functions
ef
EF
