Hypertherm HyPerformance Plasma HPR260 - Install the Ignition Console

INSTALLATION
3-12 HPR260 Manual Gas Instruction Manual

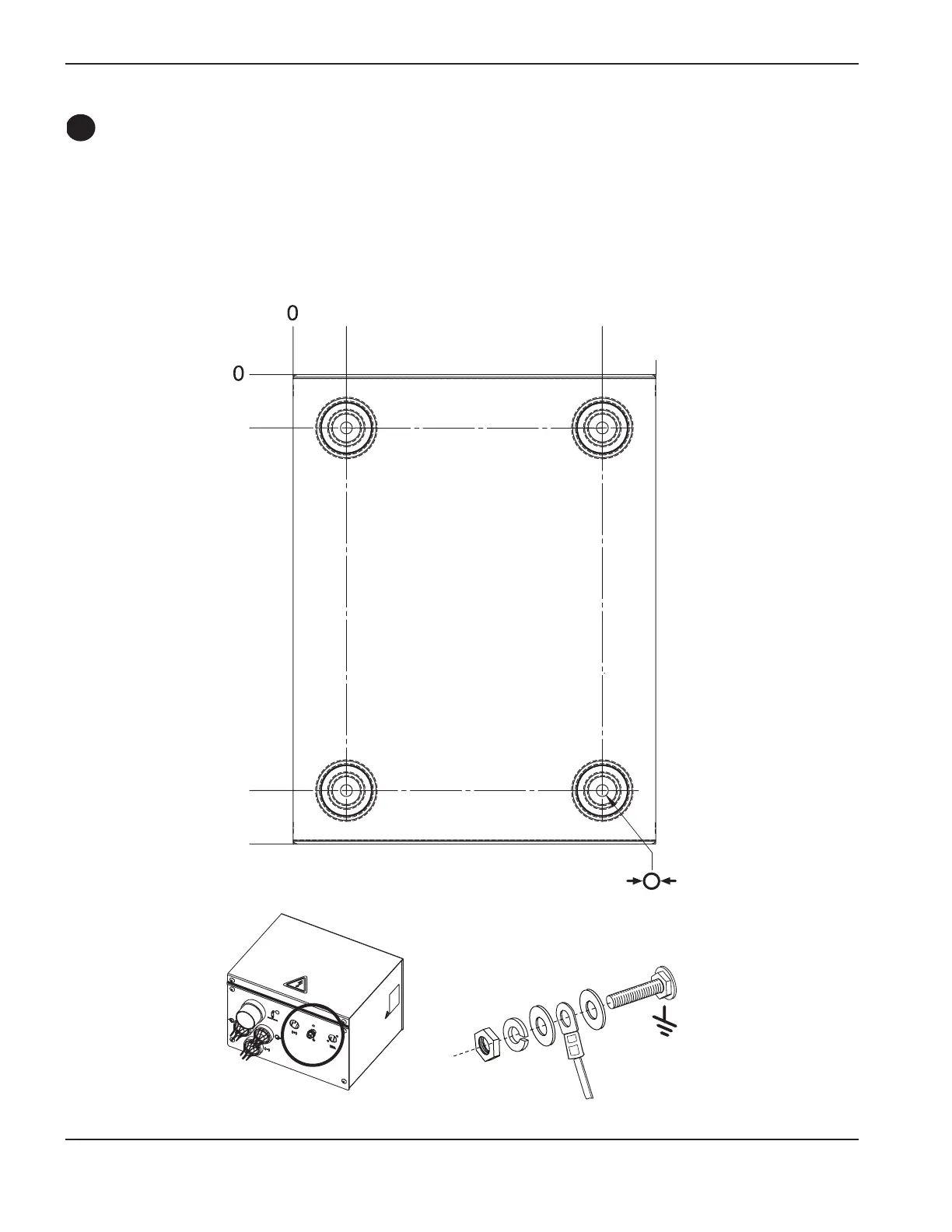

Install the ignition console
• Mount the ignition console on the gantry (bridge) for the RHF configuration.
• Mount the ignition console on the power supply for the LHF configuration.
• Allow room to remove the top for servicing.
B
7 mm
.028"
(4 places)
32 mm
1.25"
32 mm
1.25"
184 mm
7.25"
279 mm
11.00"
248 mm
9.75"
216 mm
8.50"
Ignition console grounding
