INSTALLATION
3-14 HPR260 Manual Gas Instruction Manual
3

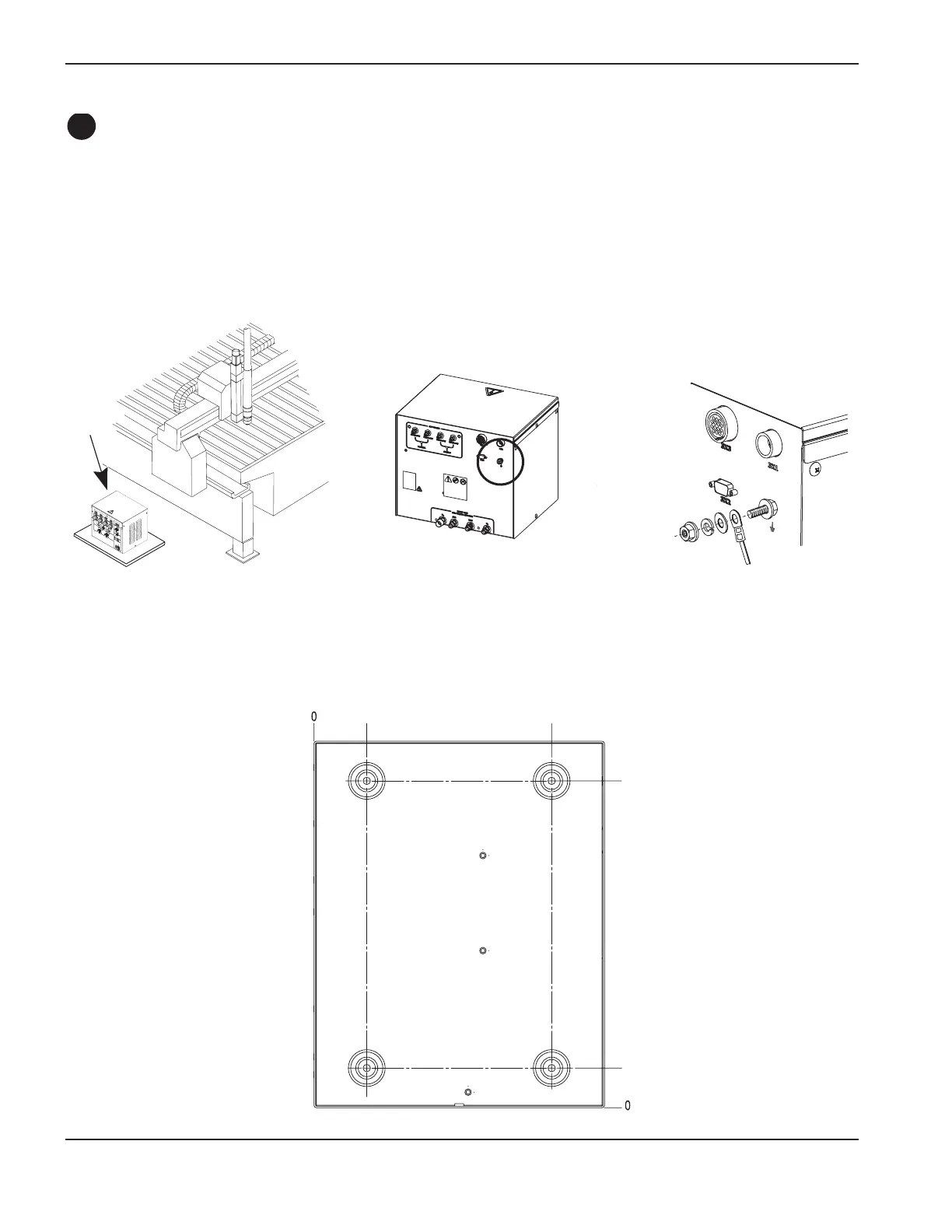

Placement of the gas console
• Mount the gas console near the cutting table. Allow room to remove the top and right side cover for servicing.
Preferred orientation is shown in the figure below. The maximum length of cables between the power supply and
gas console is 75 m (250 ft). The maximum length of cables and hoses between the gas console and the off-
valve assembly is 20 m (65 ft).
C
Preferred gas console orientation
38.1 mm
1.5"
314.5 mm
12.38"
228.6 mm
9.0"
50.8 mm
2.0"
Gas console grounding

Hypertherm HyPerformance Plasma HPR260 Specifications

General

Cutting Capacity Mild Steel	38 mm
Output Current	30-260 A
Input Voltage	200-600 V, 3-PH
Gas Supply	Oxygen, Air, Nitrogen
Duty Cycle	260 A at 100%
