Hypertherm HyPerformance Plasma HPR260 User Manual

OPERATION
3
4-4 HPR260 Manual Gas Instruction Manual
1. Turn ON the power.
2. Follow instructions below using the settings provided in the Cut charts.
Position # Instruction
1 Select PLASMA GAS.
2 Select SHIELD GAS.
3, 4 & 7 Position switch (7) to SET PREFLOW (3-4). Set plasma preflow (3). Set shield preflow (4)
5, 6 & 7 Position switch (7) to SET CUTFLOW (5-6). Set plasma cutflow (5). Set shield cutflow (6).
7 Position switch (7) to RUN.
8 Position switch (8) to SET AMPS. Set amperage using knob above switch (8). Switch 8 can be in any
position while operating.
System is ready to cut.
*The 3-digit display is for reference. The current shown during cutting may vary by +/- 2 amps from the current shown
when the amperage is set.

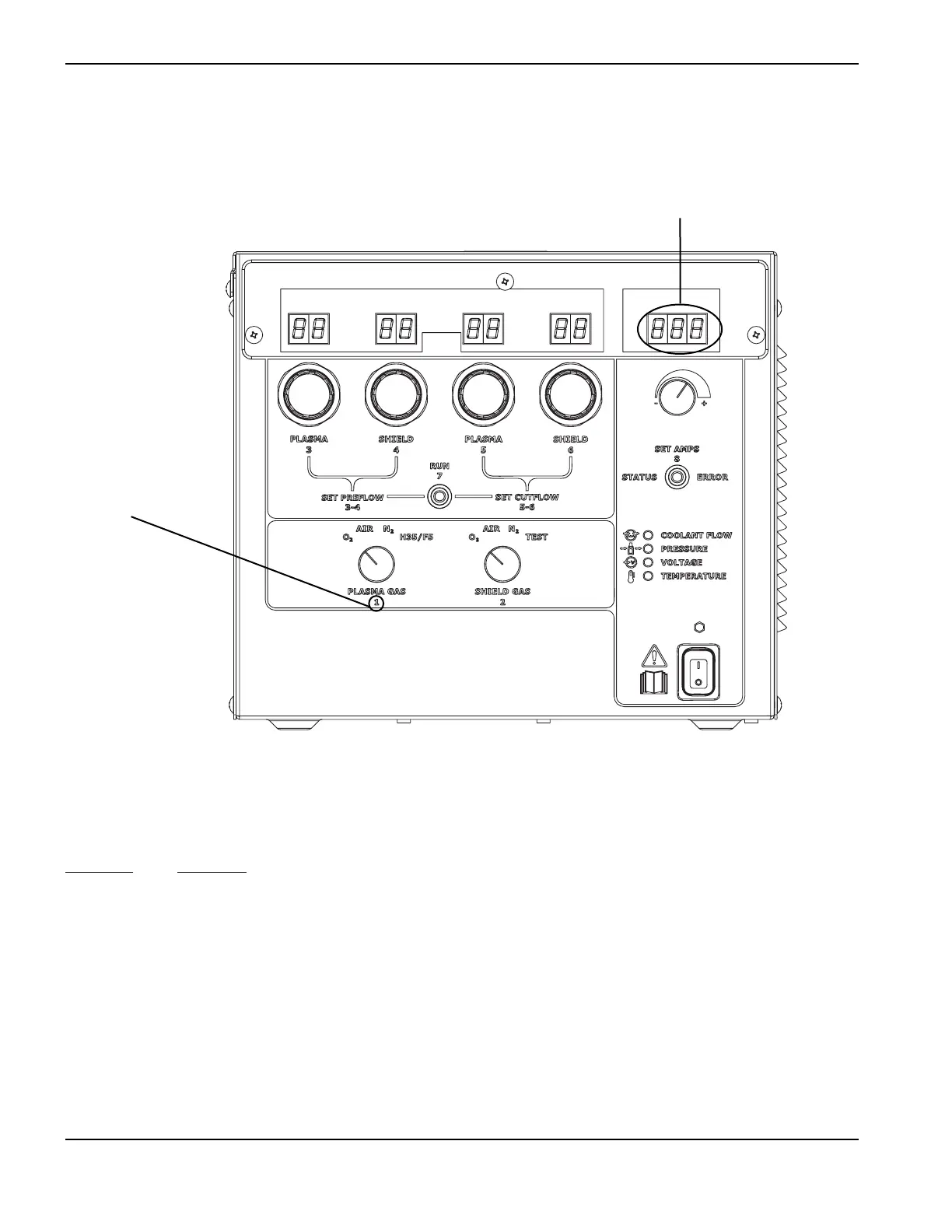

Manual gas console operation
The term “position number” refers to the numbers on the front panel of the gas console.
Position number
3-digit display*

Hypertherm HyPerformance Plasma HPR260 Specifications

General

Cutting Capacity Mild Steel	38 mm
Output Current	30-260 A
Input Voltage	200-600 V, 3-PH
Gas Supply	Oxygen, Air, Nitrogen
Duty Cycle	260 A at 100%
