Hypertherm HyPerformance Plasma HPR260 User Manual

INSTALLATION
3-30 HPR260 Manual Gas Instruction Manual
3

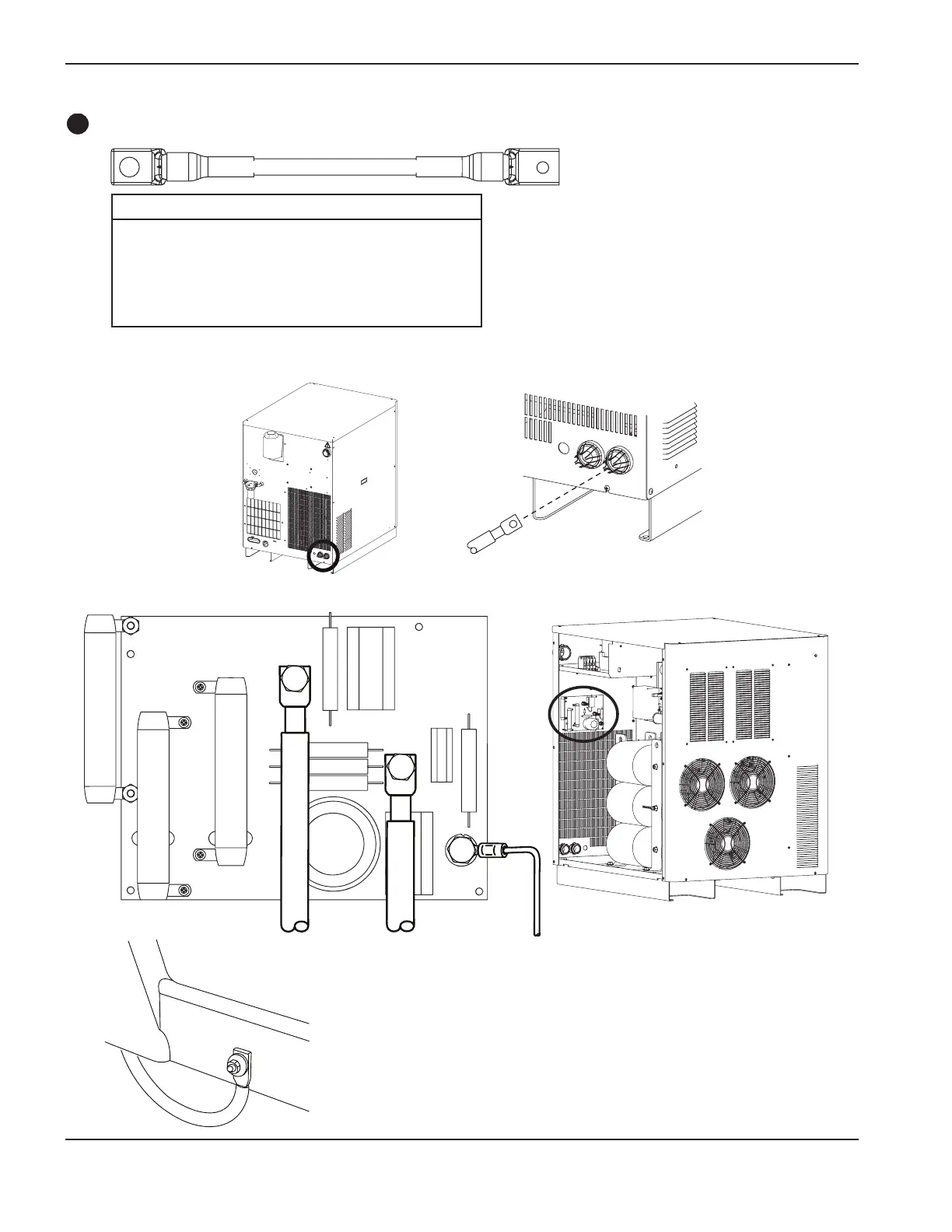

Work lead
11
Work lead
Work lead
Lower frame of work table (typical).
Work table
Power supply
Part no. Length Part no. Length
123816 3 m (10 ft) 123775 25 m (82 ft)
123817 4.5 m (15 ft) 123776 35 m (115 ft)
123773 7.5 m (25 ft) 123777 45 m (150 ft)
123818 10 m (35 ft) 123778 60 m (200 ft)
123774 15 m (50 ft) 123779 75 m (250 ft)
123819 20 m (65 ft)

Hypertherm HyPerformance Plasma HPR260 Specifications

General

Cutting Capacity Mild Steel	38 mm
Output Current	30-260 A
Input Voltage	200-600 V, 3-PH
Gas Supply	Oxygen, Air, Nitrogen
Duty Cycle	260 A at 100%
