APPENDIX C – BEVEL CUTTING
HPR260 Manual Gas Instruction Manual c-13

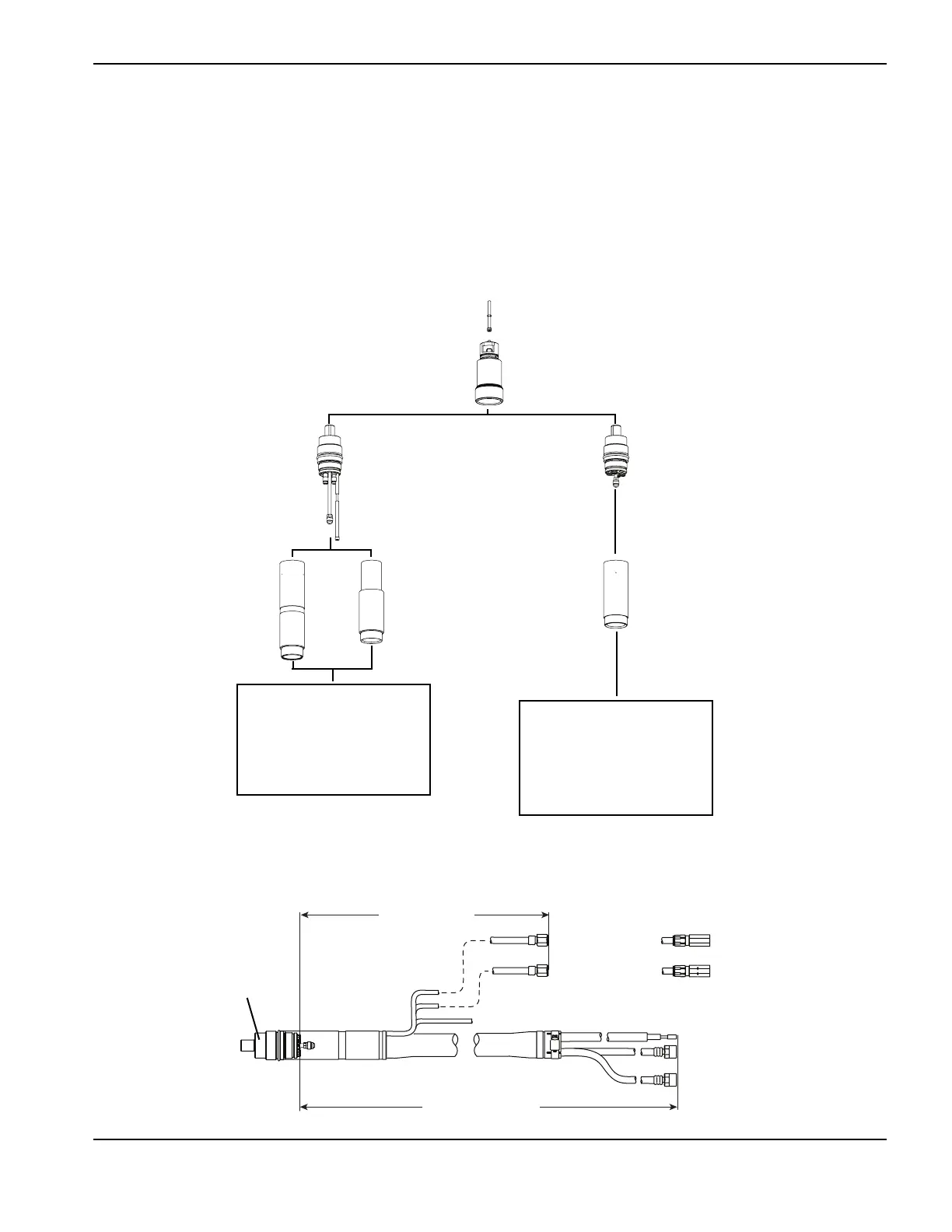

Part selection
Note: Standard consumables can be used for bevel cutting, but are not optimized for bevel cutting.
Water tube 220571 or 220700 must be installed in the HPR torch when using consumables specifically designed for
bevel cutting. The bevel quick-disconnect with the short torch-mounting sleeve has push-to-connect fittings and must be
used with the specific lead sets listed in this section.
Torch 220162
Used in all applications
Bevel quick-disconnect 220573
short torch-mounting sleeve
(included in 220573)
Torch sleeve: standard
220232
Torch sleeve: extended
220516
Standard quick-disconnect 220163
Leads with push-to-connect fittings
and 1.83 m (6 ft) gas leads
OR
Leads with push-to-connect fittings
and 2.5 m (8.17 ft) gas leads
Leads with standard fittings and
1.83 m (6 ft) gas leads
OR
Leads with standard fittings and
2.5 m (8.17 ft) gas leads
Quick-disconnect assembly
Gas lead length
Overall lead length
See table 1
next page
See table 2
next page
To RHF console
Water tube 220571
(220700 for 130A mild steel)
Standard leads
to off-valve
fittings
Bevel leads
to off-valve
fittings
4
