INSTALLATION
HPR260 Manual Gas Instruction Manual 3-33
3

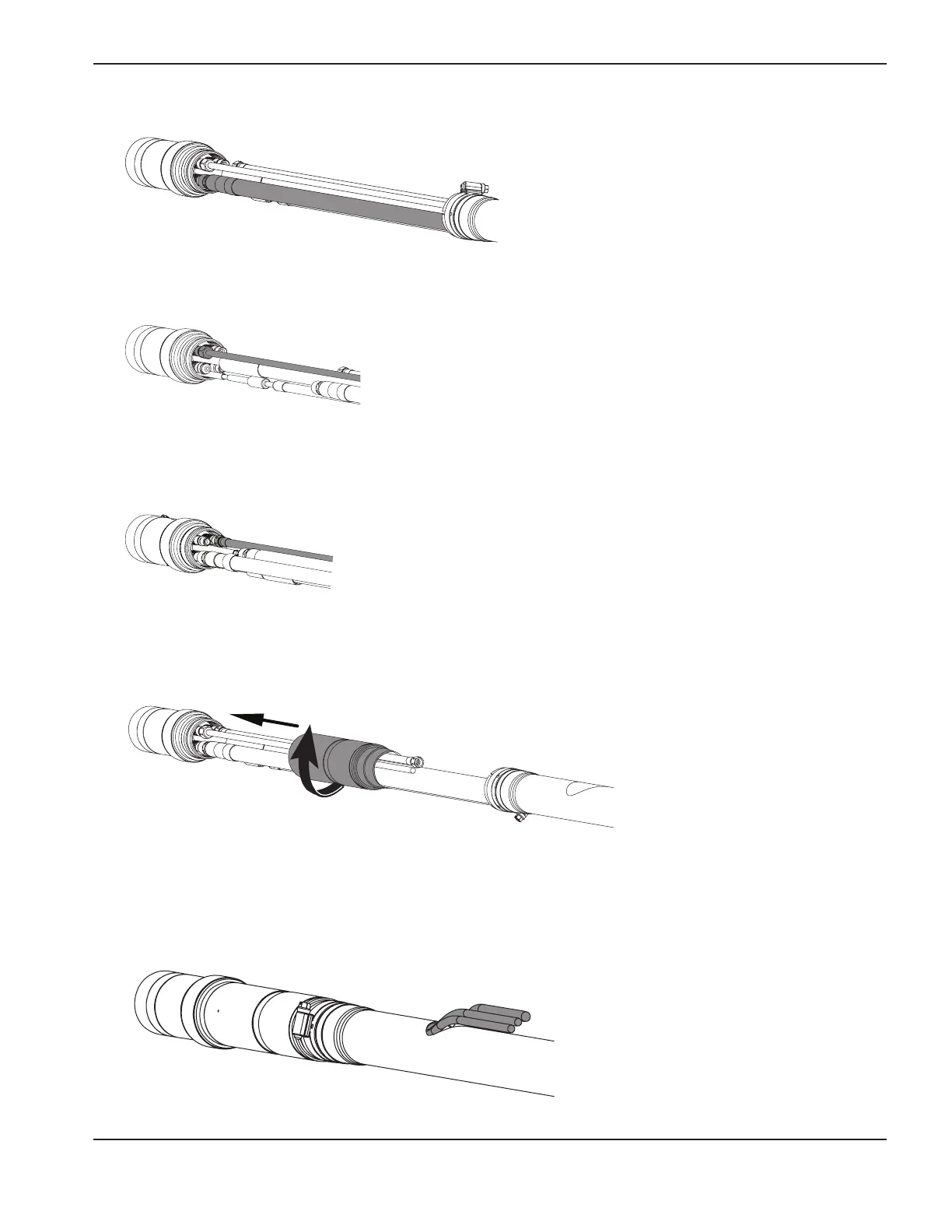

7. Connect the coolant return hose (red).
8. Connect the plasma gas hose.
9. Connect the shield gas hose.
10. Slide the torch sleeve over connections and screw it onto the torch body.
11. Slide the braided cover up to the torch sleeve. Make sure that the plasma, shield and vent hoses are routed through
the hole in the braided cover. Loosen the hose clamp on the braided cover, slide the braided cover and clamp over
the sleeve and tighten the clamp.

Hypertherm HyPerformance Plasma HPR260 Specifications

General

Cutting Capacity Mild Steel	38 mm
Output Current	30-260 A
Input Voltage	200-600 V, 3-PH
Gas Supply	Oxygen, Air, Nitrogen
Duty Cycle	260 A at 100%
