4 – Operation
Operation
Three screens are used to operate the pump: the primary screen, the settings screen, and the maintenance
screen.
Primary screen
Pump off
Touch this symbol to disable the intensifier and turn OFF the primary motor.
Pump on
Touch this symbol to turn ON the primary motor and to enable the intensifier. Pressure in the system increases
until it reaches the setpoint. When the pump is on, the primary screen shows a stroking intensifier.

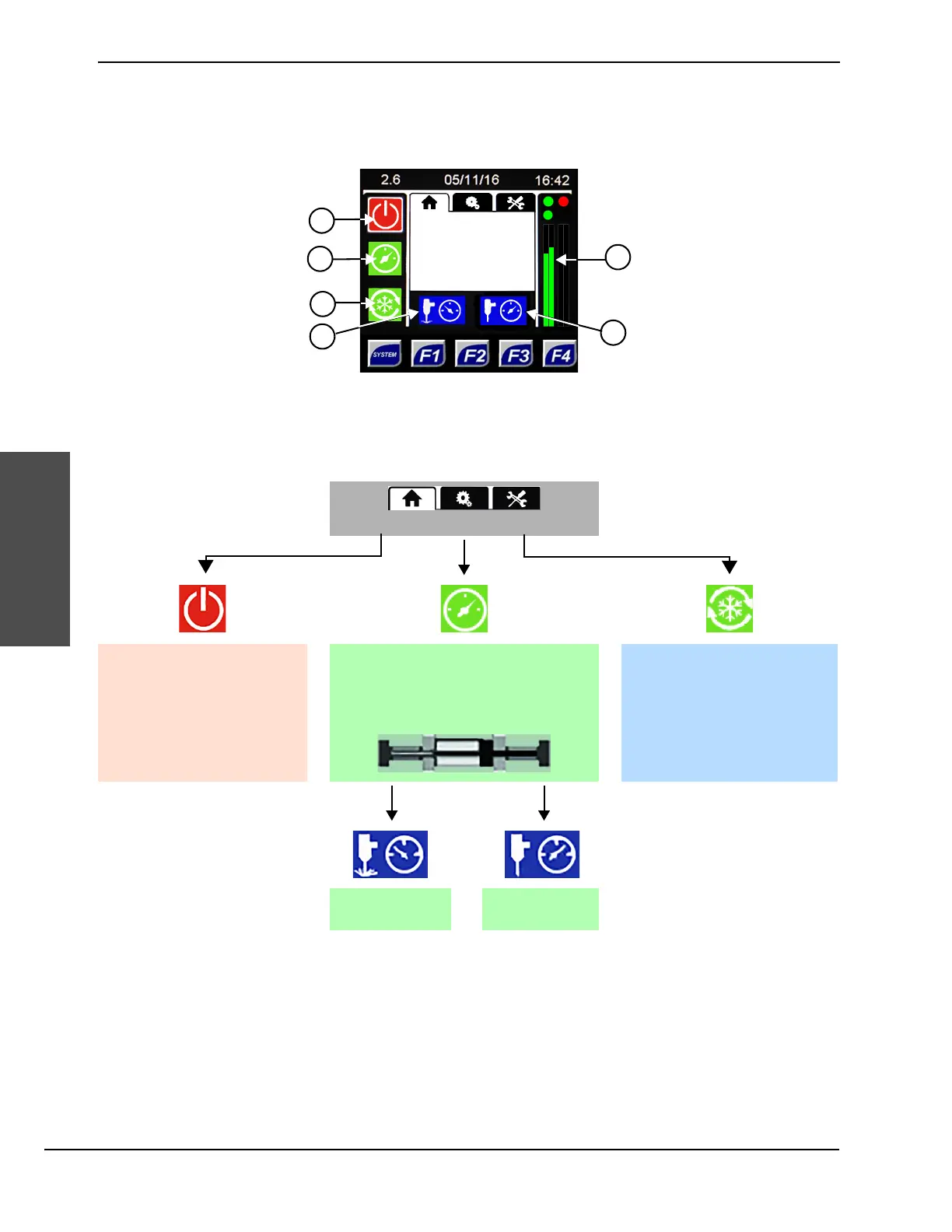

Primary screen
Pump off Pump on Cooling mode on
• Motor off
• Intensifier disabled
• Motor on
• Intensifier enabled
• Hydraulic pump enabled
• Motor on
• Intensifier disabled
• Hydraulic pump enabled
Pierce-pressure
mode
Cut-pressure
mode
1
2
3
6
4
5
1 Pump off
2 Pump on
3 Cooling mode on
4 Pierce-pressure mode
5 Intensifier and pump status indicator
6 Cut-pressure mode
