Hypertherm Powermax 125 Field Service Bulletin

Torch Alignment Guide for Bevel Cutting

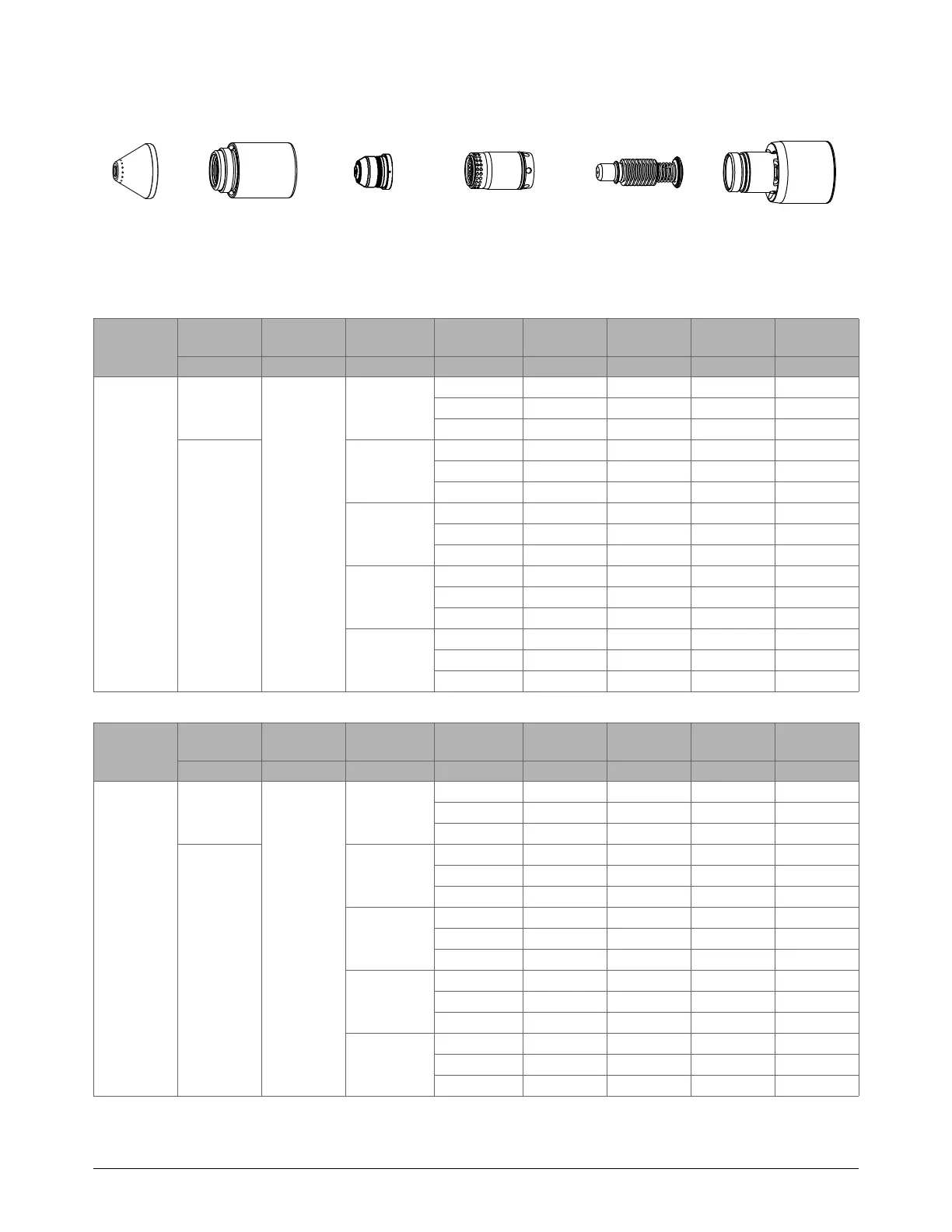

12 811280 Field Service Bulletin Powermax125 / MAXPRO200
Powermax125 – Mild steel – Air
Metric
Bevel type
Current Clearance
Material
thickness
Cut angle Cut speed Pierce delay Kerf offset Edge offset
A mm mm degrees mm/min seconds mm mm
V cut
105
9.1
6
22.5 2540 0.5 2.3 4.8
37.5 2540 0.6 2.7 7.3
45.0 2327 0.7 3.1 9.1
125
12
22.5 1603 0.5 2.8 7.8
37.5 1245 0.6 3.5 12.7
45.0 1028 0.7 4.1 16.1
16
22.5 994 0.7 3.1 9.8
37.5 772 1.2 3.8 16.1
45.0 638 2.1 4.5 20.5
20
22.5 686 1.4 3.4 11.7
37.5 533 2.8 4.2 19.5
45.0 440 1.0* 4.9 24.9
25
22.5 474 1.0* 3.7 14.0
37.5 368 1.0* 4.5 23.7
45.0 304 1.0* 5.2 30.2
English
Bevel type
Current Clearance
Material
thickness
Cut angle Cut speed Pierce delay Kerf offset Edge offset
A inches inches degrees in/min seconds inches inches
V cut
105
0.360
1/4
22.5 100.0 0.5 0.09 0.20
37.5 99.4 0.6 0.11 0.30
45.0 84.7 0.7 0.12 0.37
125
1/2
22.5 57.4 0.5 0.11 0.32
37.5 44.6 0.6 0.14 0.52
45.0 36.8 0.7 0.16 0.66
5/8
22.5 39.7 0.7 0.12 0.38
37.5 30.8 1.2 0.15 0.63
45.0 25.4 2.1 0.18 0.80
3/4
22.5 29.3 1.4 0.13 0.44
37.5 22.8 2.8 0.16 0.74
45.0 18.8 1.0* 0.19 0.94
1
22.5 18.2 1.0* 0.14 0.56
37.5 14.1 1.0* 0.18 0.95
45.0 11.7 1.0* 0.21 1.21
* Edge start only.
220976
Shield
220977
Retaining cap
220975
Nozzle
220997
Swirl ring
220971
Electrode

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
