Hypertherm Powermax 125 Field Service Bulletin

Torch Alignment Guide for Bevel Cutting

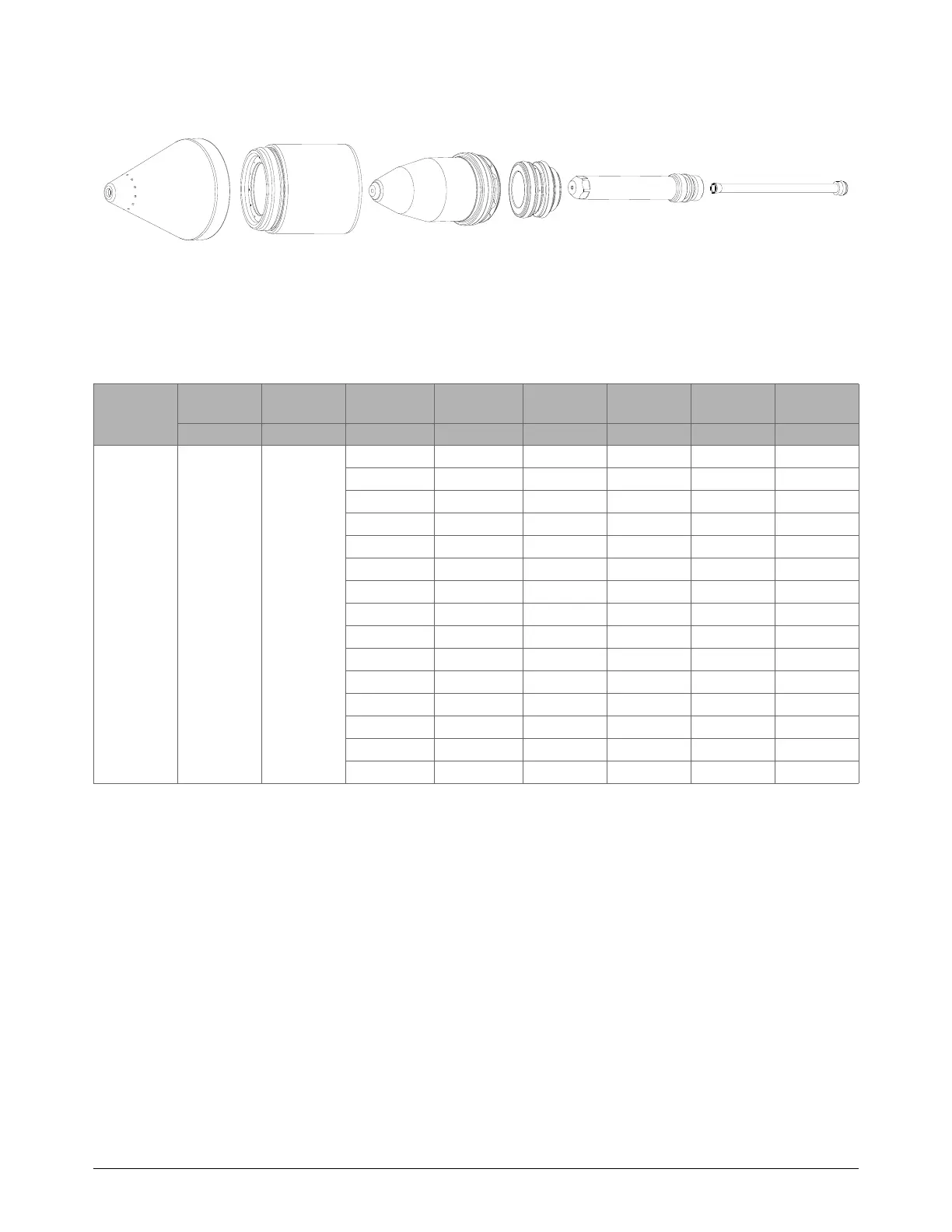

Powermax125 / MAXPRO200 Field Service Bulletin 811280 17
MAXPRO200 – Mild steel – 130 A – O
2
Plasma / Air Shield
Metric
Bevel type
Current Clearance
Material
thickness
Cut angle Cut speed Pierce delay Kerf offset Edge offset
A mm mm degrees mm/min seconds mm mm
V cut 130 7.6
6 22.5 2540 0.2 3.3 5.8
6 37.5 2540 0.3 3.9 8.5
6 45.0 2540 0.4 4.4 10.4
10 22.5 2008 0.5 3.6 7.7
10 37.5 1662 0.6 4.4 12.1
10 45.0 1411 0.6 5.2 15.2
12 22.5 1595 0.6 3.8 8.8
12 37.5 1271 0.7 4.7 13.9
12 45.0 1045 0.8 5.6 17.6
16 22.5 1007 0.8 4.3 11.0
16 37.5 744 1.0* 5.5 17.8
16 45.0 573 1.0* 6.7 22.7
20 22.5 636 1.0* 4.9 13.2
20 37.5 436 1.0* 6.4 21.8
20 45.0 314 1.0* 7.9 27.9
* Edge start only.
420735
Shield
220935
Retaining cap
420828
Nozzle
220529
Swirl ring
420824
Electrode
420823
Water tube

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
