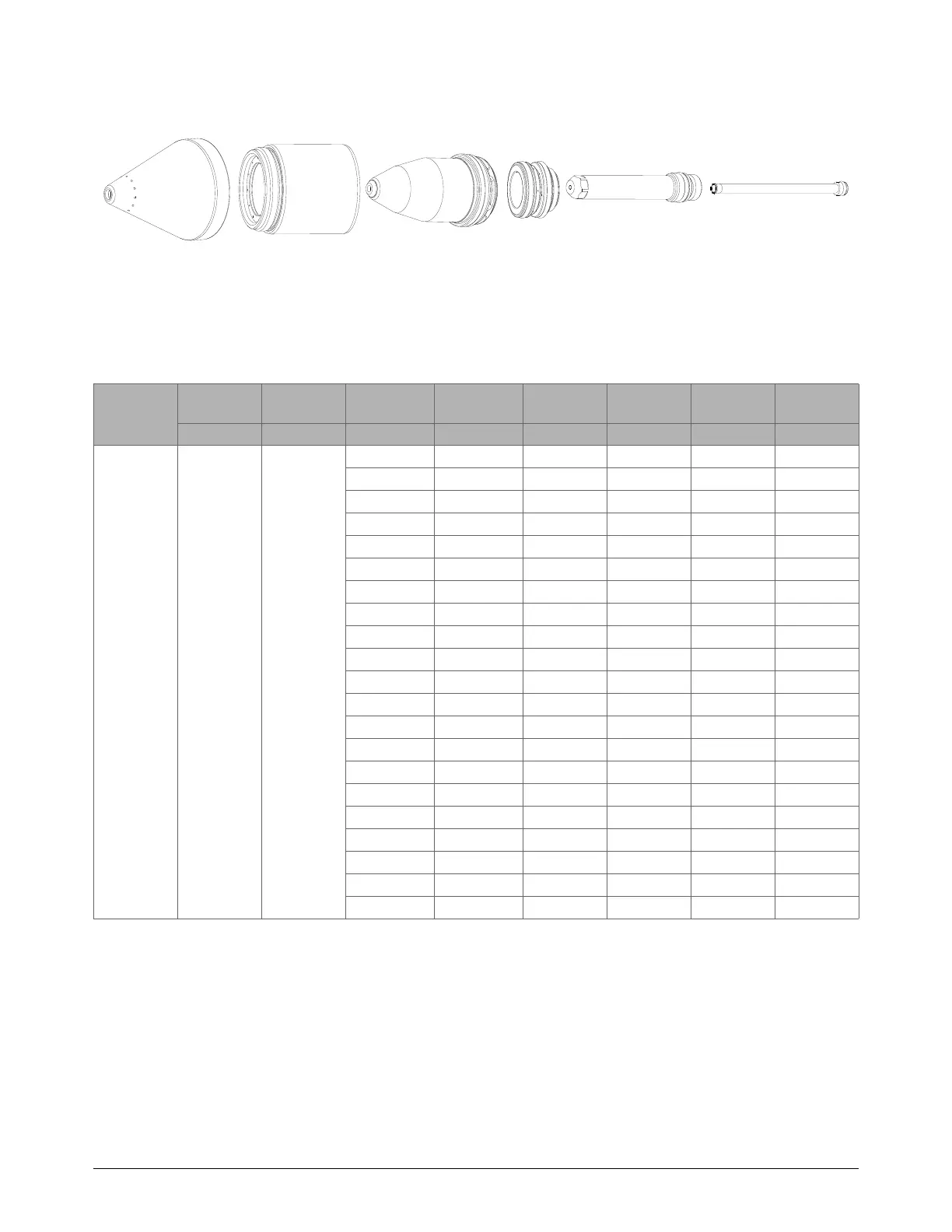

Torch Alignment Guide for Bevel Cutting
Powermax125 / MAXPRO200 Field Service Bulletin 811280 13
MAXPRO200 – Mild steel – 200 A – O
2
Plasma / Air Shield
Metric
Bevel type
Current Clearance
Material
thickness
Cut angle Cut speed Pierce delay Kerf offset Edge offset
A mm mm degrees mm/min seconds mm mm
V cut 200 7.6
10 22.5 2540 0.5 4.0 8.1
10 37.5 2469 0.7 4.7 12.4
10 45.0 2204 0.8 5.5 15.5
12 22.5 2400 0.7 4.1 9.1
12 37.5 2049 0.9 5.1 14.3
12 45.0 1788 1.0 5.9 17.9
16 22.5 1742 1.1 4.6 11.2
16 37.5 1411 1.3 5.6 17.9
16 45.0 1176 1.5 6.5 22.5
20 22.5 1265 1.4 4.9 13.2
20 37.5 972 1.7 6.0 21.4
20 45.0 774 1.0* 6.9 26.9
25 22.5 848 1.0* 5.3 15.6
25 37.5 610 1.0* 6.3 25.5
25 45.0 459 1.0* 7.3 32.3
32 22.5 484 1.0* 5.5 18.8
32 37.5 317 1.0* 6.6 31.1
32 45.0 221 1.0* 7.5 39.5
38 22.5 299 1.0* 5.7 21.4
38 37.5 181 1.0* 6.7 35.9
44 22.5 185 1.0* 5.8 24.0
* Edge start only.
420737
Shield
220935
Retaining cap
420733
Nozzle
220488
Swirl ring
420732
Electrode
420823
Water tube
