Hypertherm Powermax 125 Field Service Bulletin

Torch Alignment Guide for Bevel Cutting

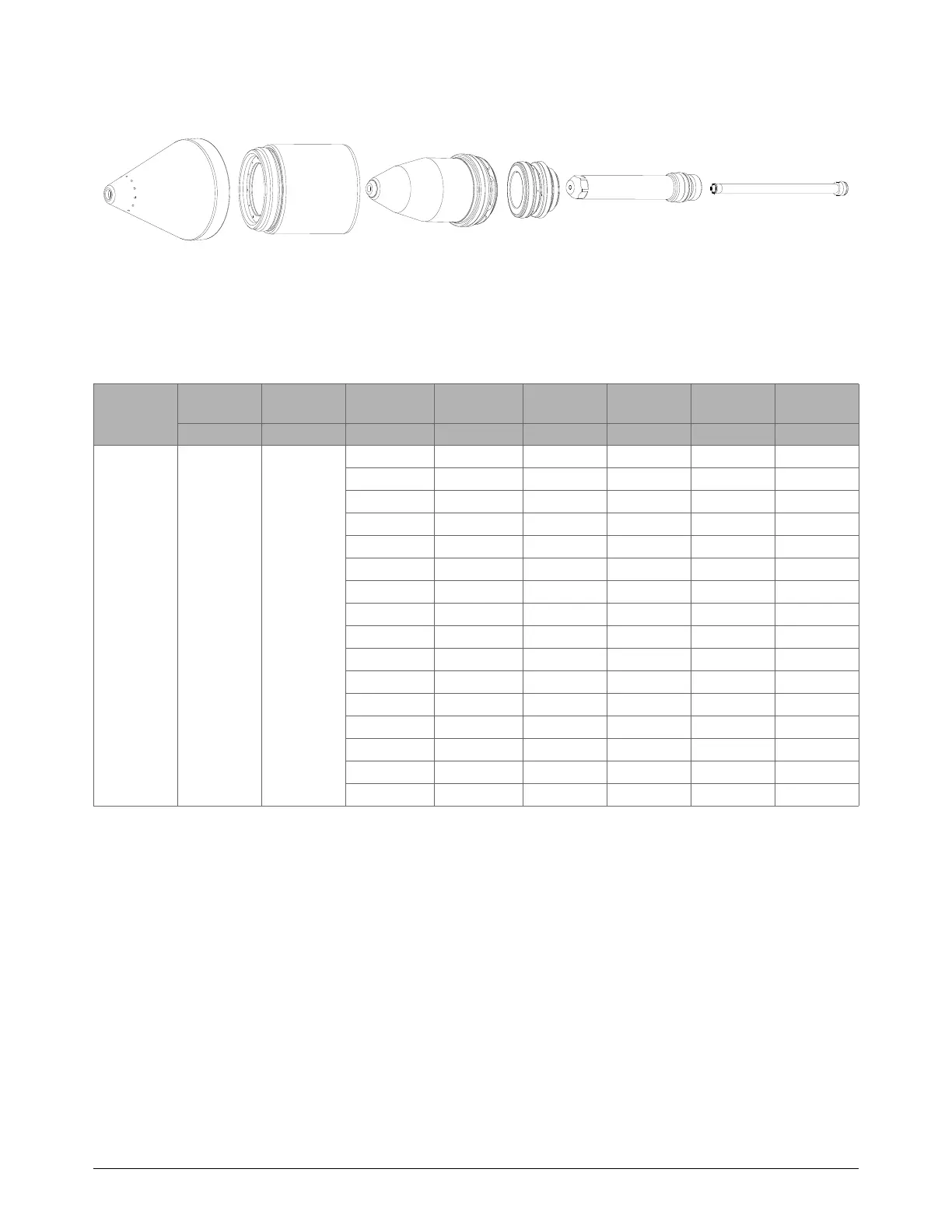

20 811280 Field Service Bulletin Powermax125 / MAXPRO200
MAXPRO200 – Mild steel – 130 A – Air Plasma / Air Shield
English
Bevel type
Current Clearance
Material
thickness
Cut angle Cut speed Pierce delay Kerf offset Edge offset
A inches inches degrees in/min seconds inches inches
V cut 130 0.360
0.250 22.5 100.0 0.3 0.13 0.24
0.250 37.5 100.0 0.4 0.16 0.35
0.250 45.0 100.0 0.4 0.18 0.43
0.375 22.5 86.0 0.5 0.14 0.30
0.375 37.5 70.6 0.6 0.17 0.46
0.375 45.0 59.5 0.7 0.20 0.58
0.500 22.5 57.6 0.7 0.16 0.36
0.500 37.5 44.2 0.9 0.19 0.58
0.500 45.0 35.2 1.0 0.22 0.72
0.625 22.5 38.6 0.9 0.17 0.43
0.625 37.5 27.7 1.0* 0.20 0.68
0.625 45.0 20.9 1.0* 0.23 0.86
0.750 22.5 25.8 1.0* 0.17 0.49
0.750 37.5 17.4 1.0* 0.21 0.78
0.750 45.0 12.4 1.0* 0.24 0.99
1.000 22.5 11.6 1.0* 0.18 0.60
* Edge start only.
420735
Shield
220935
Retaining cap
420829
Nozzle
220488
Swirl ring
420824
Electrode
420823
Water tube

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
