SETUP
0
powermax1250 Operator Manual 3-5
CAUTION: When using the standard model power supply (CE model is 3PH only)
with a single-phase power source, replace the supplied power cord
with a 6 AWG (16mm
2
) 3-wire power cord. The power cord must be
connected by a licensed electrician.
Single-phase power cord (not for CE model)
Power cord installation

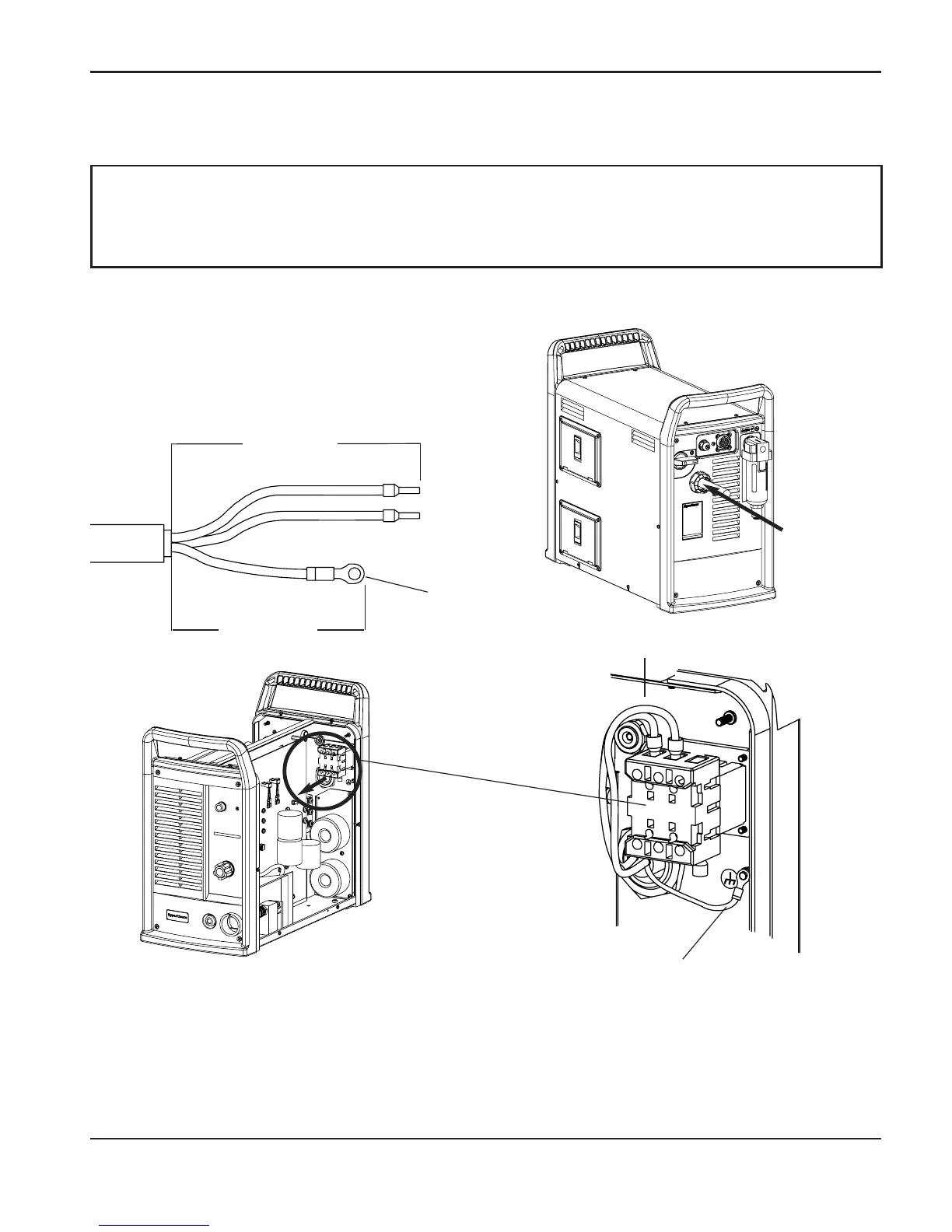

Strip and prepare the power cord wires as
shown below:
Plug installation
The plug must be connected to the power cord by a licensed electrician.
L1
#10
Ground
L2
4” (102 mm)
7” (178 mm)
Route lead
through
strain relief
and tighten.
Power Switch
Ground
L1 & L2
To Next Page
