SETUP
1
powermax1250 Operator Manual 3-15

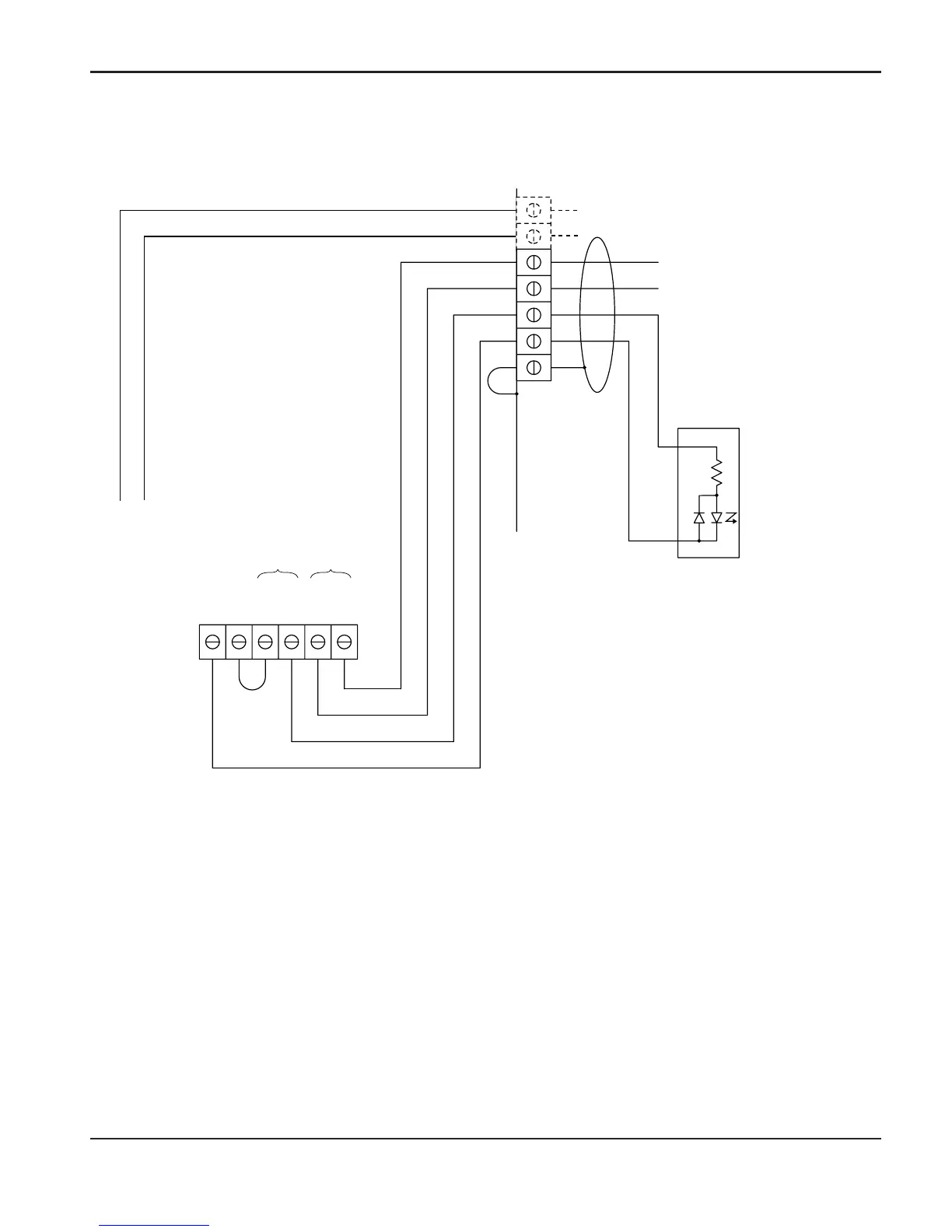

Driving an industrial isolated input module
Move black (BLK) wire to
ground (GND) and add
jumper wire as shown.
+
–
Notes:
• Customer-supplied
isolated input module.
• Pins 5 and 6 are used only
on systems that include the
PowermaxEdge cable with
voltage divider.
Start
Signal
Shield
13
12
14
3
4
6
5
V-div +
V-div -
Isolated input
module
J19
GND 24VDC BLK YEL RED WHT
XFER START
BLK
J16 J15
