SETUP
1
powermax1250 Operator Manual 3-13

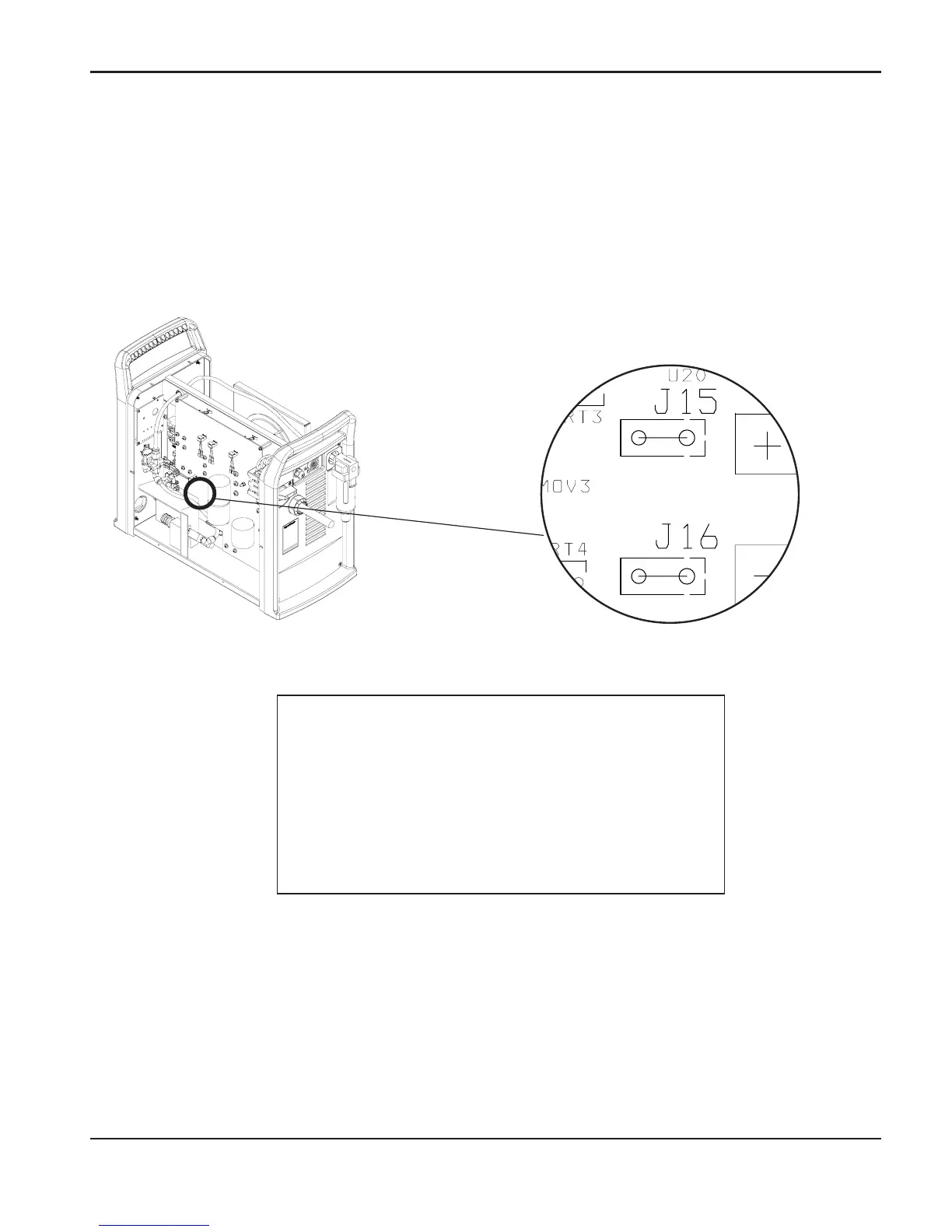

4. Find the power board, as shown below. Use insulated type 1/4" faston terminal ends to
connect to J15 and J16.
Note: 120VAC or 24 VAC must be sourced externally.
Signal: Arc voltage (torch height control)
Type: Output
Notes: Full arc voltage. No voltage divider.
300VDC maximum. (Signal not available
on rear panel connector.)
J15 +VDC
J16 -VDC
5. Tighten the strain relief.
6. Replace the cover
