SPECIFICATIONS

Operator Manual

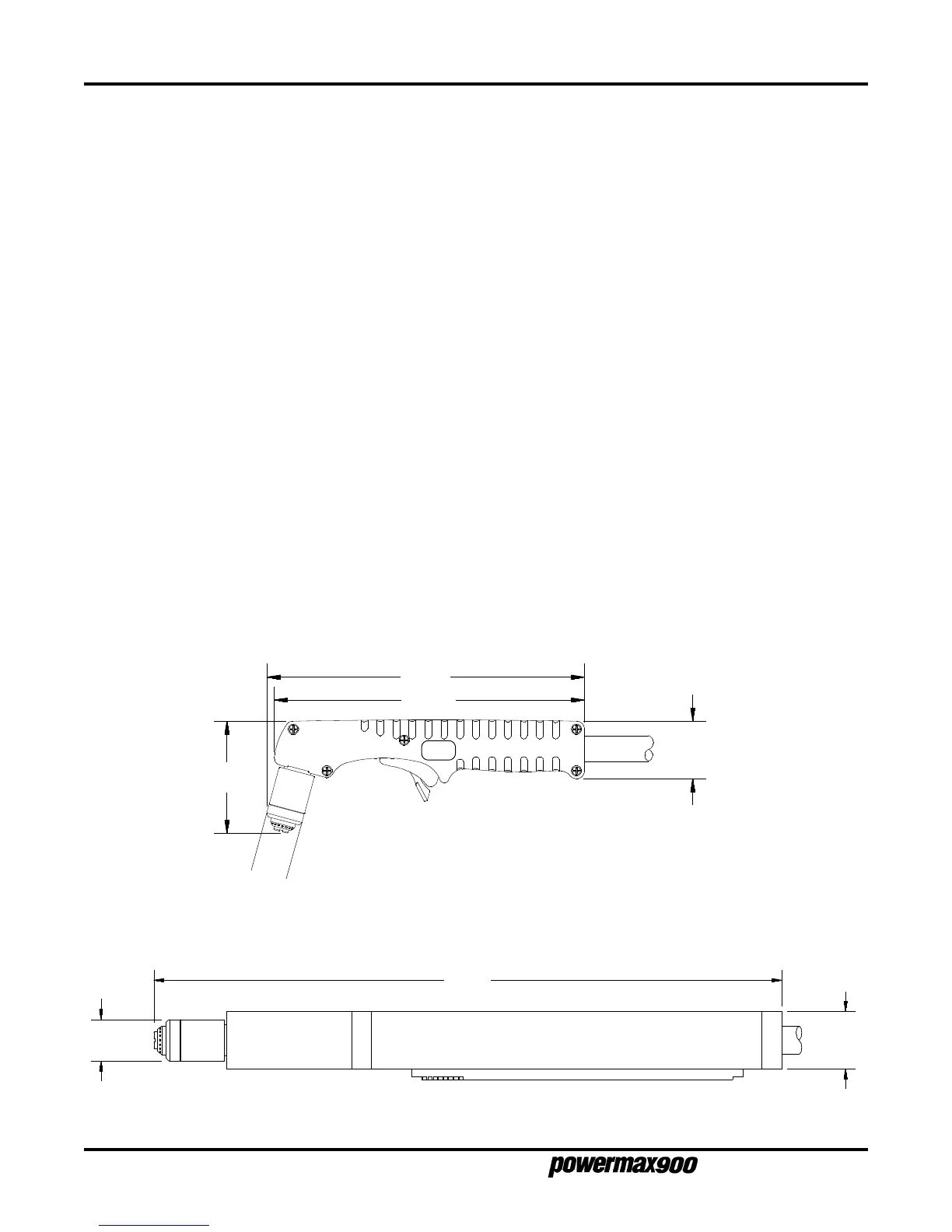

Figure 2-3 PAC125T Torch with Dimensions

Weight .................................................................. 65 pounds (30 kg) without wheels

72 pounds (33 kg) with wheels

128 pounds (58 kg) for 600V and 230V-CE

power supplies

Gas Type .............................................................. Air or Nitrogen

Gas Quality, Air .................................................... Clean, dry, oil-free

Gas Quality, Nitrogen ........................................... 99.995% pure

Gas Inlet Pressure................................................ 90 psi (6.2 bar)

Gas Flow .............................................................. 360 scfh/6 scfm at 90 psi (170 l/min at

6.2 bar) supplied to power supply pressure

regulator

Power Supply pressure regulator setting ............. 70 psi (4.8 bar) flowing

PAC125 TORCHES

Maximum 55A Cutting Capacity (PAC125T) ........ 7/8" (22 mm) @ 50% duty cycle

Maximum 55A Cutting Capacity (PAC125M) ....... 1/2" (13 mm) @ 50% duty cycle

Maximum 39A Cutting Capacity (PAC125M) ....... 3/8" (9.5 mm) @ 100% duty cycle

Maximum current at 50% duty cycle .................... 55 amps

Gouging Capability (metal removal rate) .............. 6.3 pounds (2.9 kg)/hr

Weight PAC125T.................................................. 4.5 pounds (2 kg) with 25 ft (7.6 m) lead

7 pounds (3.2 kg) with 50 ft (15 m) lead

Weight PAC125M ................................................. 7 pounds (3.2 kg) with 25 ft (7.6 m) lead

9.5 pounds (4.3 kg) with 50 ft (15 m) lead

Figure 2-4 PAC125M Torch with Dimensions

15.06"

1.38"1.00"

PAC125M Machine Torch Assembly

1.00"

3.10"

8.72"

8.50"

1.58"

PAC125T Hand Torch Assembly

PAC125T
