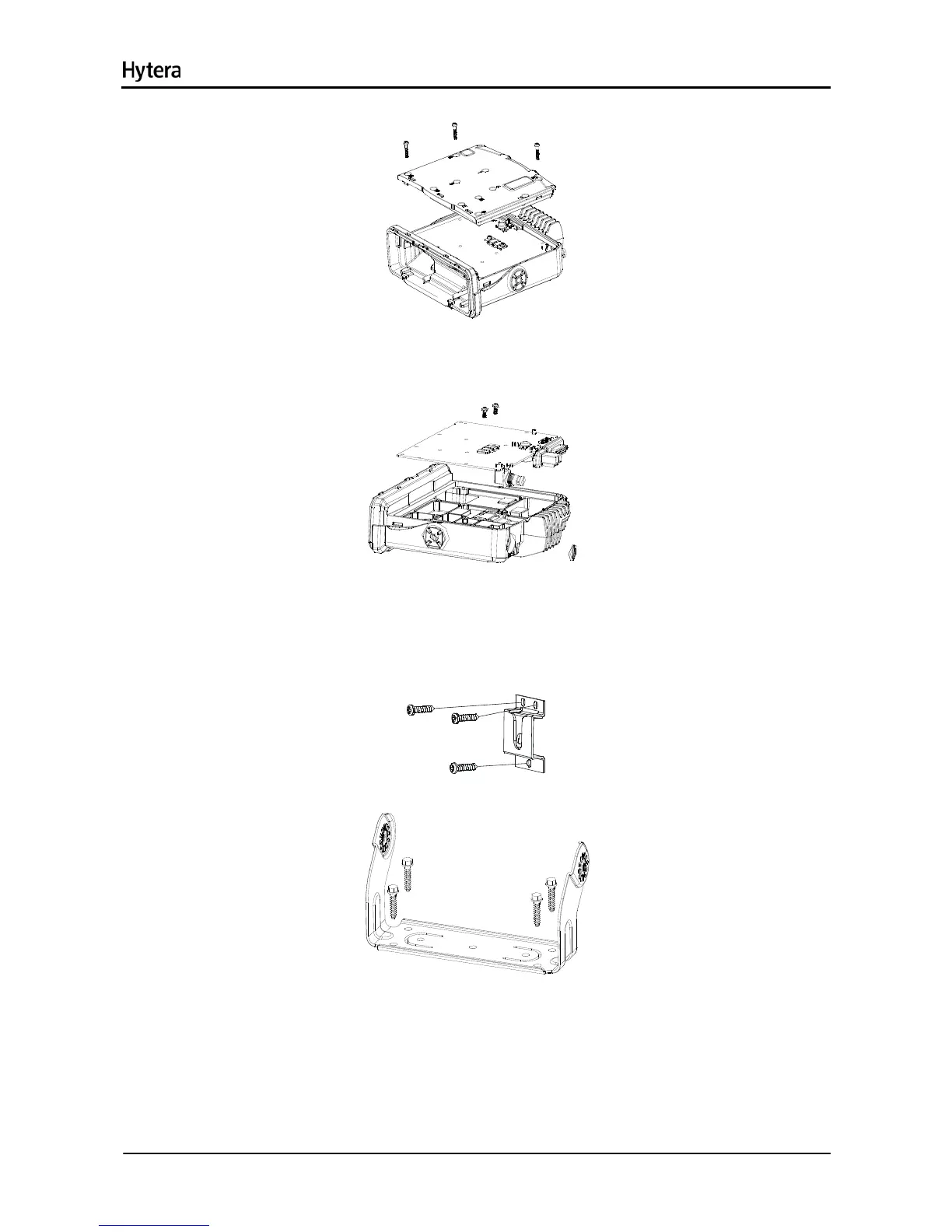

6. Loosen the screw fixing the antenna connector and two screws fixing the PA module. Then take the
PCB out.
Assembly
To assemble the radio, perform the above steps in a reverse way. In addition, the following procedures
shall be performed:
1. Fix the microphone hanger with three self-tapping screws (white, 4.0X16).
2. Fix the radio bracket with four or six self-tapping screws (black, 4.8X20).
3. Fasten the two adjustment screws, each of which has a silicone rubber pad.
