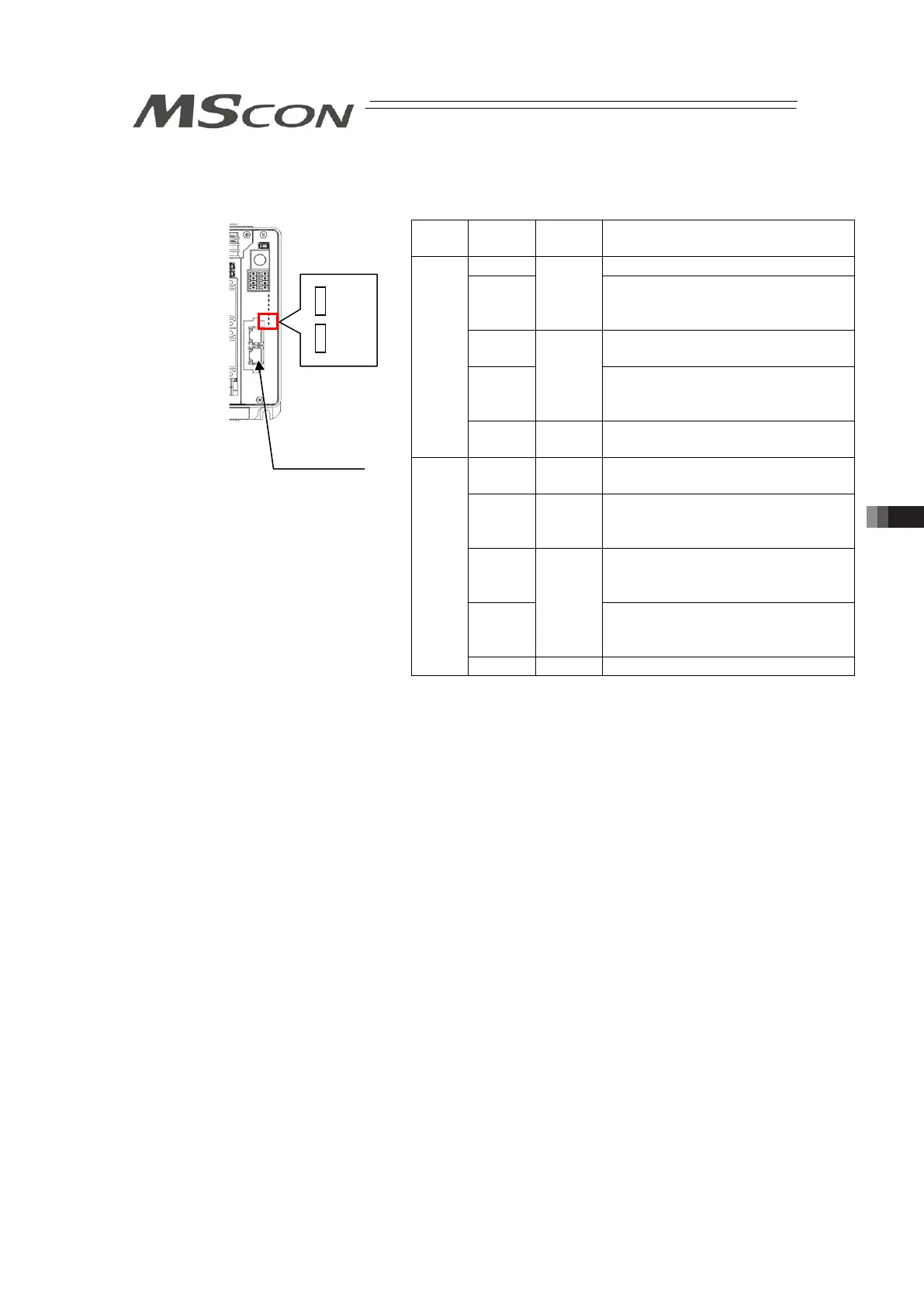

3.10 Field network status LEDs
229
3.10.5 EtherNet/IP
NS
MS
{ : Illuminating, × : OFF, : Flashing
Name
Lamp
status
Color Description
NS
{
Green
Online (normally)
Online (Even though the network
is established normally, the master
does not identify as MSCON)
{
Orange
Communication error (IP address
duplication, etc.)
Communication error
(Communication timeout has been
detected)
× –
Power is OFF or IP address not
established
MS
{
Green
Communication in normal
condition
–
Construction information setting is
not completed or the scanner
(master) is in idling condition
{
Orange
Hardware breakdown (The
replacement of the board is
required)
Light error such as initializing error
and setting violation can be
recovered by re-establishing
× – Power OFF
Field
Network
Connector
Field
Network
Status
LED
