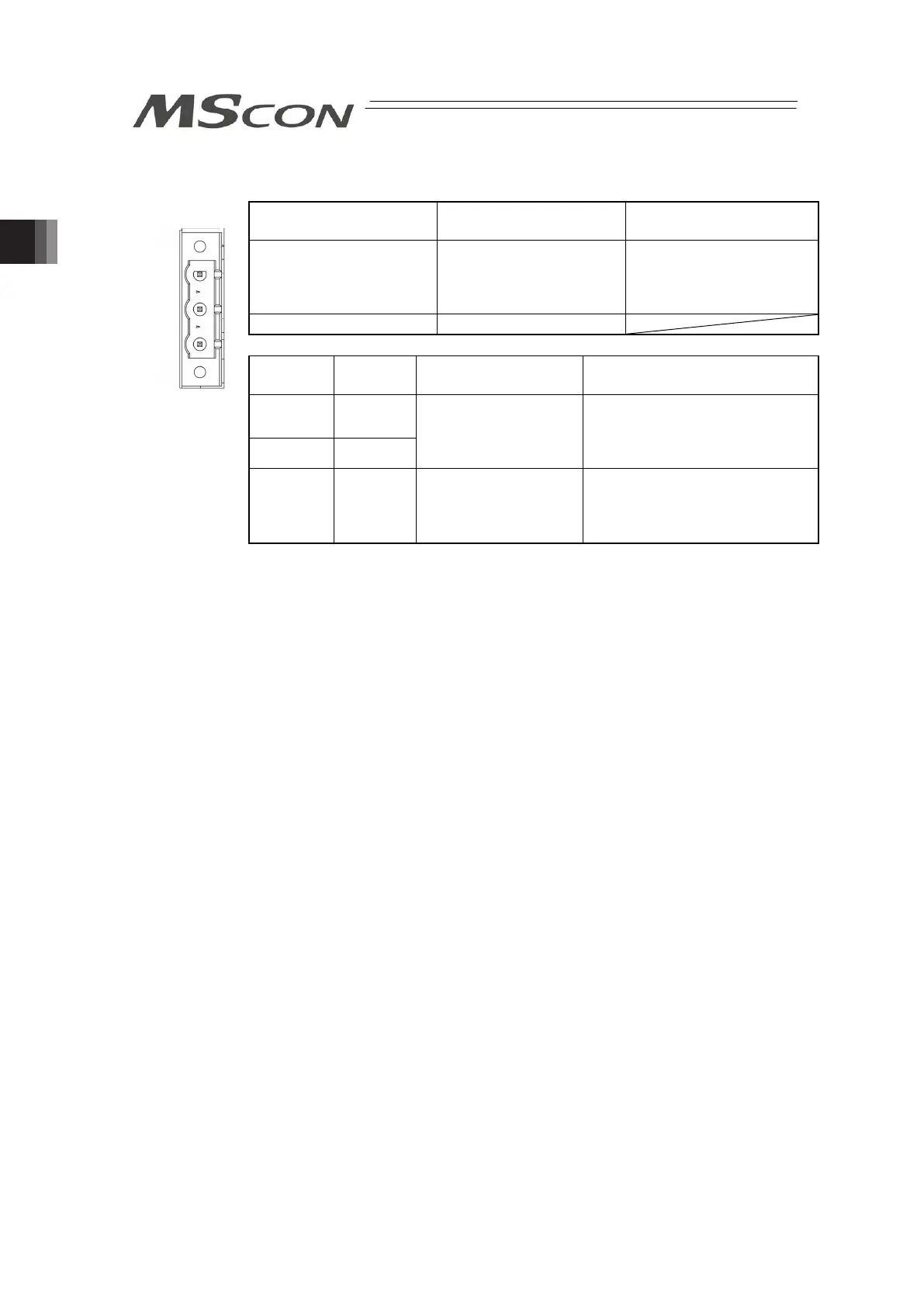

(2) Drive (Motor) Power Supply Input Connector
Power Supply Input
Connector
Model Remarks
Cable Side MC2.5/3-STF-7.62 Enclosed in standard
package
Manufactured by
PHOENIX CONTACT
Controller Side MC2.5/3-GF-7.62
Pin No.
Signal
Name
Contents Applicable Cable
1 N
2 L
Motor Power Input
(100V AC or 200V AC …
to be determined when
ordered)
KIV3.5 to 1.25mm
2
(AWG12 to16)
Select the cable thickness
allowable for the current figured
out in the power capacity.
3 PE
Functional Ground
Cable
It is connected to PE of the
motor cable and screw terminal
for protective grounding inside
the unit.
Front view of
connector on
controller side
PE
L
N
