3.1 Basic Operation
64
Operation
Pattern

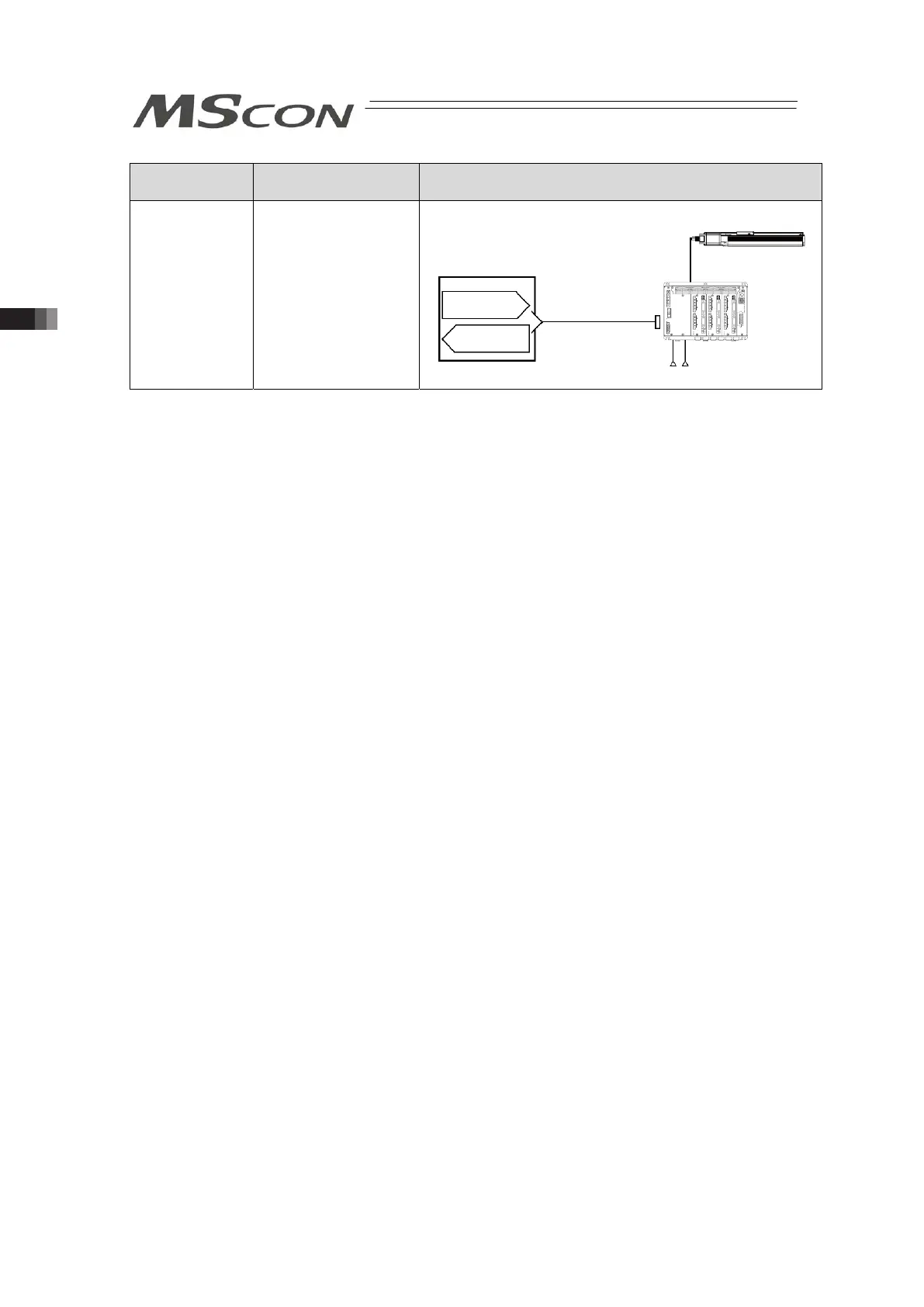

Contents Overview
Remote I/O Mode
Five types
(Note 1)
of control
same for PIO are available.
Note : It is to be switched
with PIO patterns
(driver board
parameters)
+24V 100V/200V AC
Target Position No.
Control Signal
PLC
Completed Position No.
Status Signal
Communication with Fieldbus
Dedicated Cable
Electric Cylinder
Note 1: Available PIO pattern numbers: 0, 1, 2, 4 and 5
[See 3.4.10 Control Signal for Remote I/O Mode.]
