IAI PCON-CFB series - When Using Absolute Battery Unit

Chapter 7 Absolute Reset and Absolute Battery
POWER CON
PCON-CB/LC
175
[2] When Using Absolute Battery Unit
1)
Detach the absolute battery connector first, and then remove the absolute battery unit cover
retaining screws (2 places) to detach the cover. At this time, pull out the battery cables from
the opening on the cover.
2)
Take out the battery.
Follow the reversed steps to put the battery back ON.

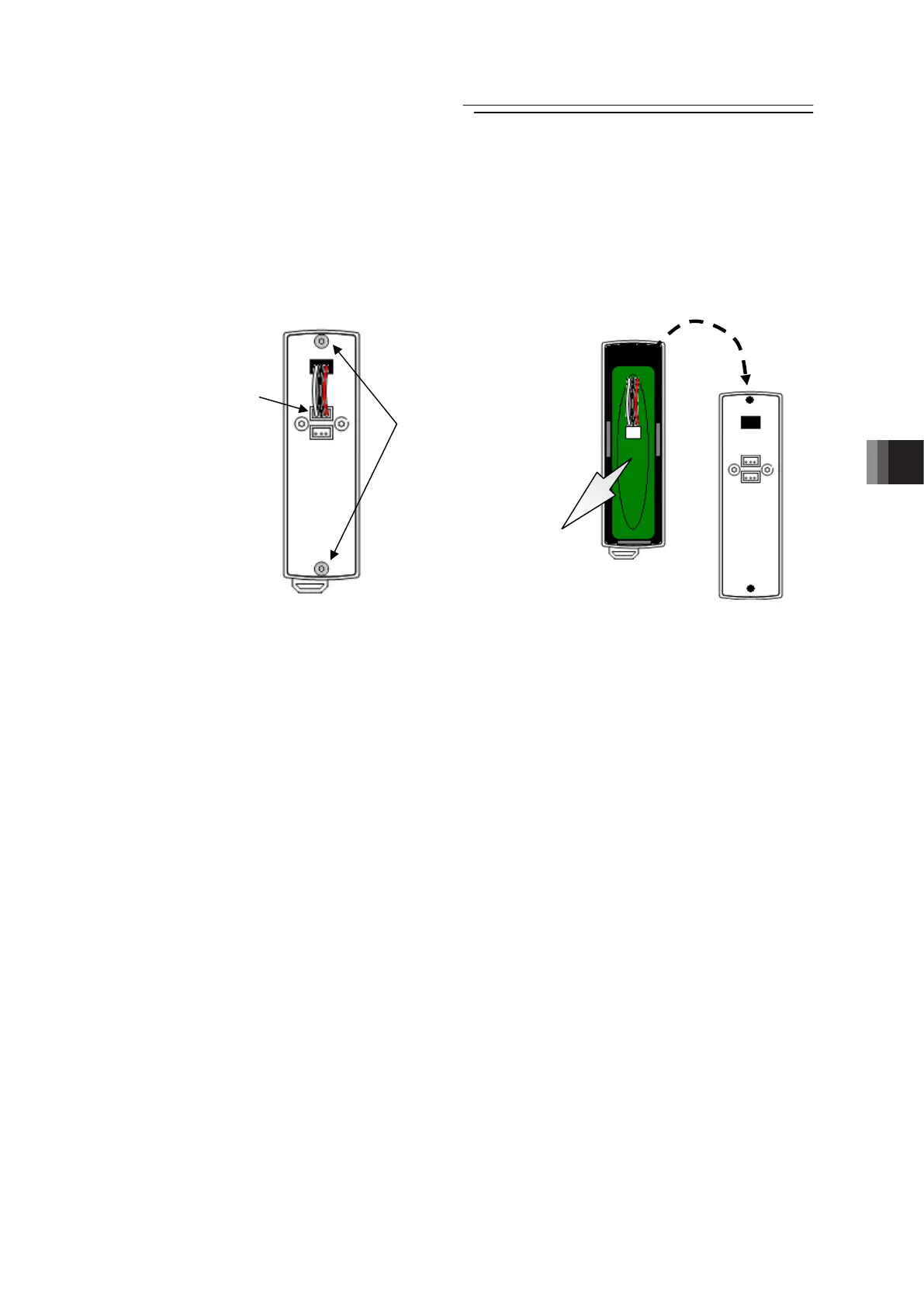

Absolute Battery Unit
Cover Retaining Screws
(Two Locations)
Absolute Battery
Connector
