2) Connection Cable

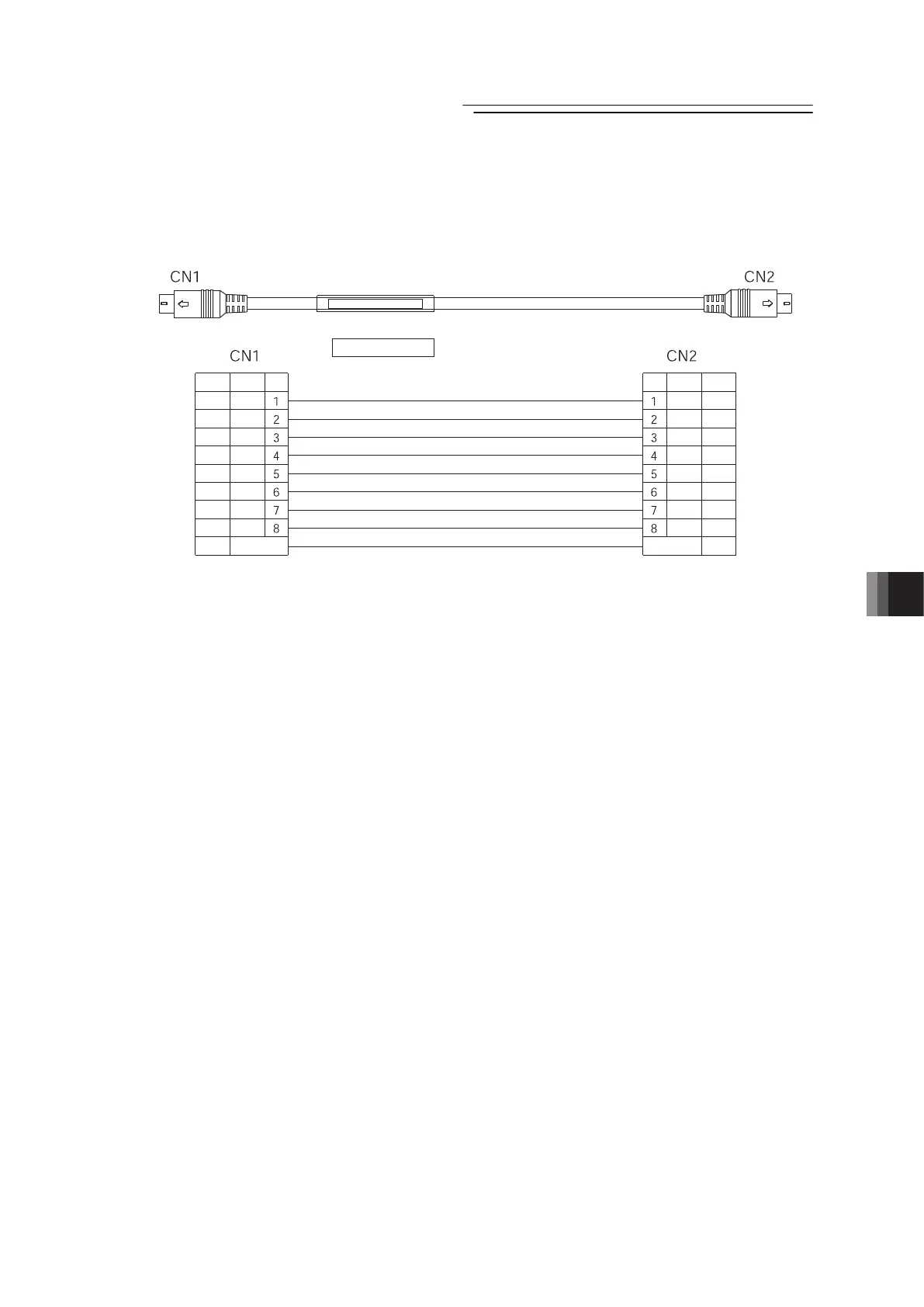

● Controller/TP Adaptor Connection Cable
Use this cable to connect the controller and TP adapter (RCB-LB-TG).
Model : CB-CON-LB005 (standard cable length : 0.5m)
Maximum cable length : 2.0m
Color Signal No. Color Signal No.
BR
YW
RD
OR
BL
GN
PL
GY
Shield
BR
YW
RD
OR
BL
GN
PL
GY
Shield
8PIN MIN DIN Connector (overmolded) 8PIN MIN DIN Connector (overmolded)
SGA
SGB
5V
ENBL
EMGA
24V
GND
EMGB
FG
SGA
SGB
5V
ENBL
EMGA
24V
GND
EMGB
FG
CB-CON-LB
□□□
