4. Appendix

202

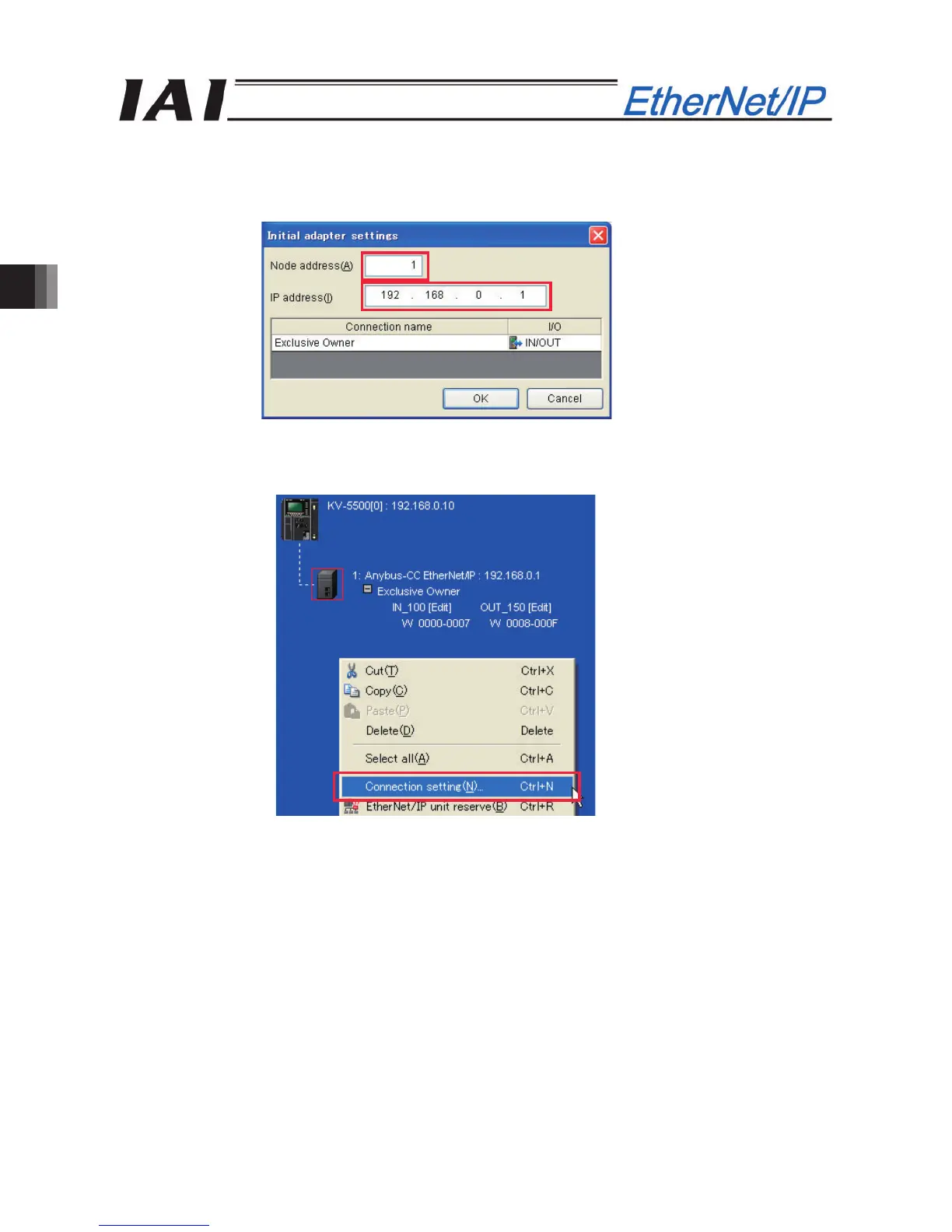

[4] When the device is registered in the tree below the PLC, the “Default Adapter Settings” dialog box appears.

Set the IP address and node address here.

* The node address is an internal address used by the PLC. It has nothing to do with the IP address. Assign

a unique value to each PLC.

[5] Select “Anybus-CC EtherNet/IP” you have just registered in the scan list area, and then click the right

mouse button and select “Set Connection.”
