IAI pcon User Manual

3. SCON-CA
83

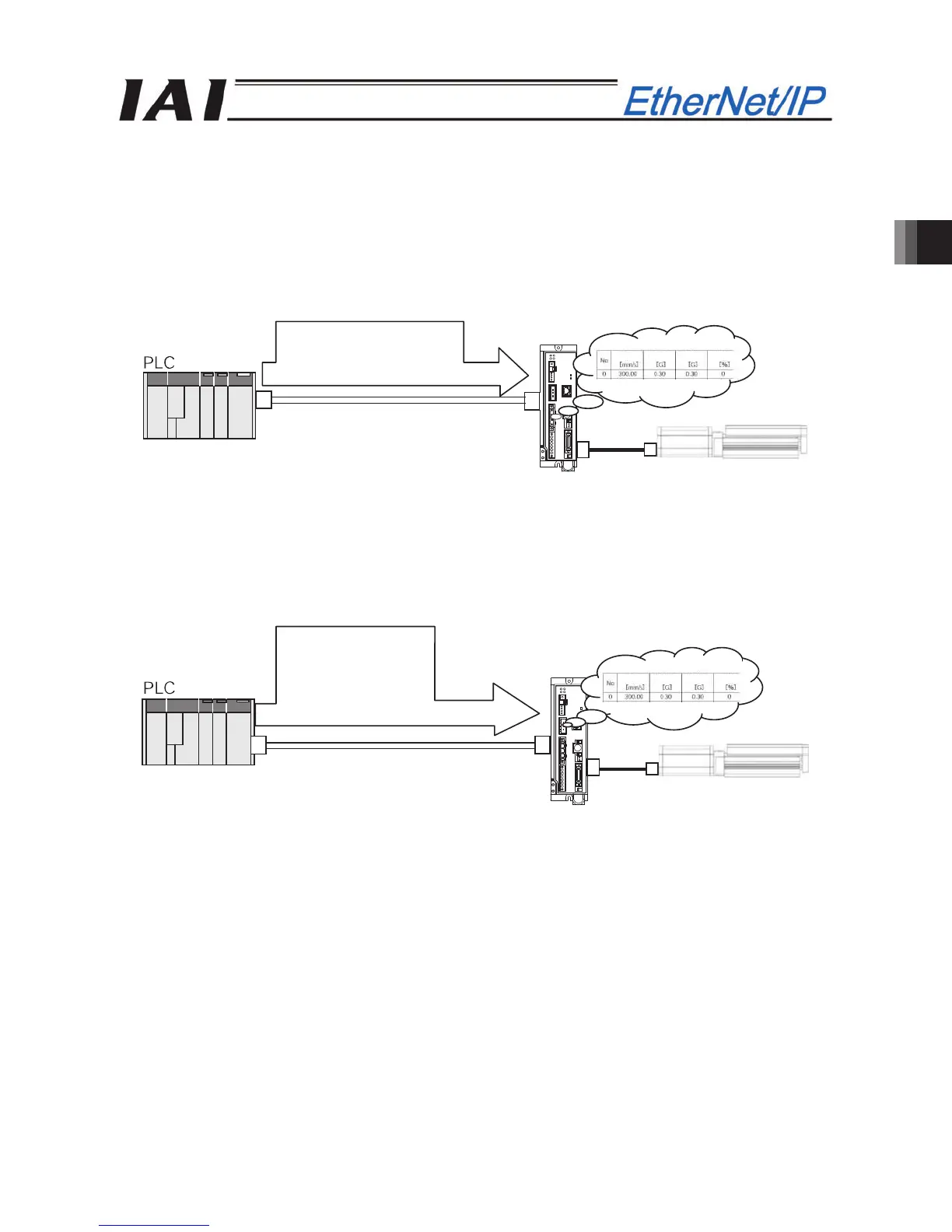

[2] Position/simple direct mode: In this mode, the actuator is operated by specifying position numbers.
You can select whether to specify the target position directly as a value, or
use a value registered in the position data table, by switching a control
signal.
For the speed, acceleration/deceleration, positioning band, etc., values
preregistered in the position data table are used. Up to 768 position data
points can be set.
Number of occupied bytes: 8 bytes
Target position: 100.00 mm
+
Position No. 0
SCON-CA supporting
EtherNet/IP
A
ctuato
r
Speed
A
cceleration
Push
Deceleration
[3] Half direct mode: In this mode, the actuator is operated by specifying the speed,
acceleration/deceleration and pressing current, in addition to the target position,
directly as values.
Number of occupied bytes: 16 bytes
SCON-CA supporting
EtherNet/IP
A
ctuato
r
Target position: 100.00 mm
Positioning band: 0.10 mm
Speed specification:
100.0 mm/sec
A
cceleration/deceleration:
0.30 G
Pressing current: 50%
Speed
A
cceleration
Push
Deceleration
