IAME MINI SWIFT 60CC - USA User Manual

7
MAN-85 – USA
3.5

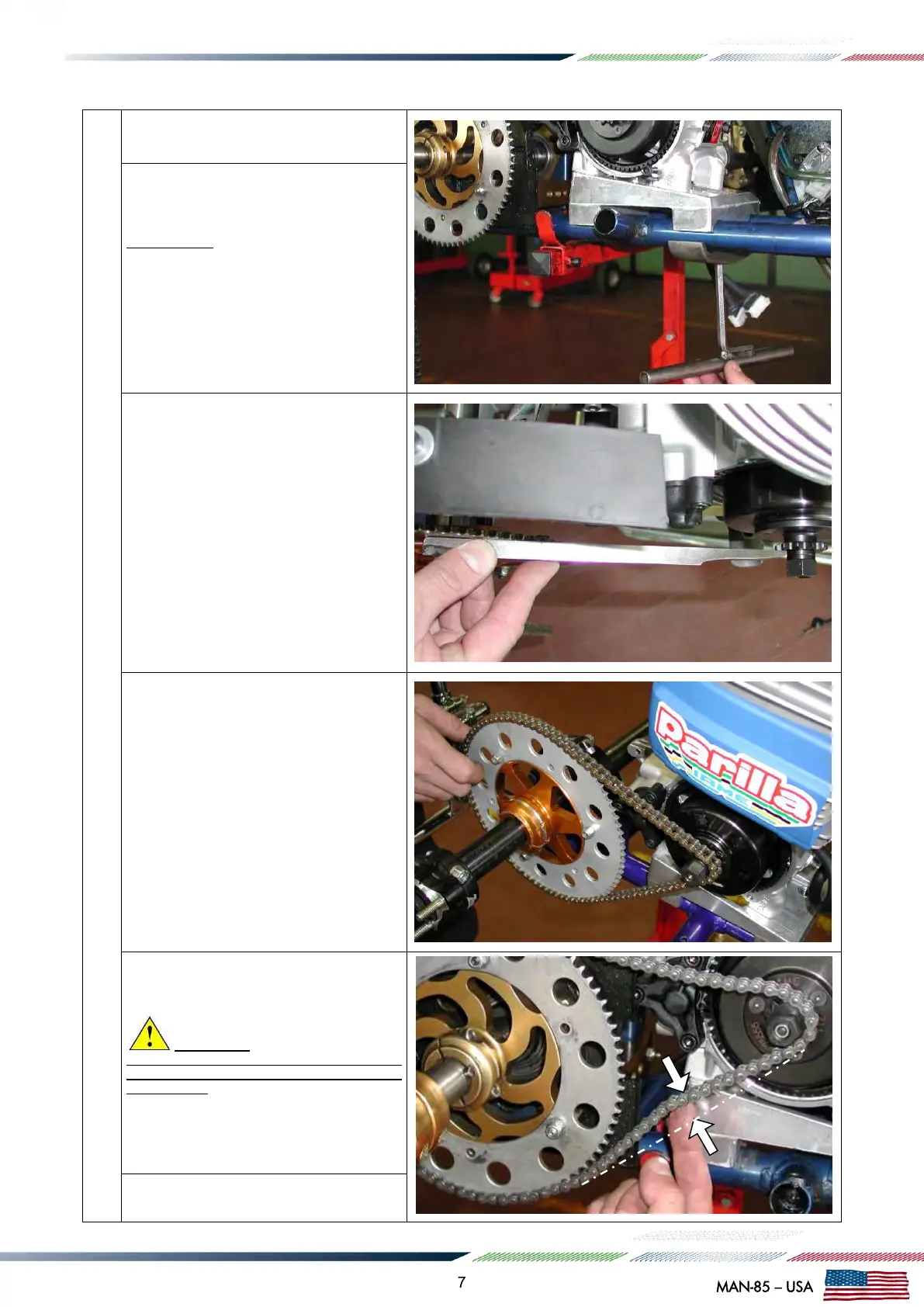

INSTINSTALL THE ENGINE ON
CHASSIS
3.5.1 PLACE THE ENGINE ON THE 2 OUTSIDE
MAIN RAILS AND FIX THE MOTOR-MOUNT
WITH THE TWO CLAMPS (SEE FIG.12).
SUGGESTION:
NEVER TORQUE COMPLETELY THE CLAMPS
UNTIL THE CHAIN IS INSTALLED AND
PROPERLY ALIGNED.
3.5.2 CHECK THE ALIGNMENT OF THE
ENGINE SPROCKET AND THE AXLE
SPROCKET (SEE FIG. 13).
3.5.3 INSTALL THE CHAIN (PITCH: 7.775).
(SEE FIG. 14).
3.5.4 MOVE THE ENGINE ON THE RAILS AND
OPTIMIZE THE CHAIN TENSION.
ATTENTION:
THE PLAY OF THE CHAIN MUST BE APPR.
15mm, MEASURED IN THE SHOWN POINT
(SEE FIG. 15)
3.5.5 TORQUE THE CLAMPS SCREWS
Fig.12
Fig.13
Fig.14
Fig.15
15mm
