IAME MINI SWIFT 60CC - USA User Manual

6
MAN-85 – USA
3.3

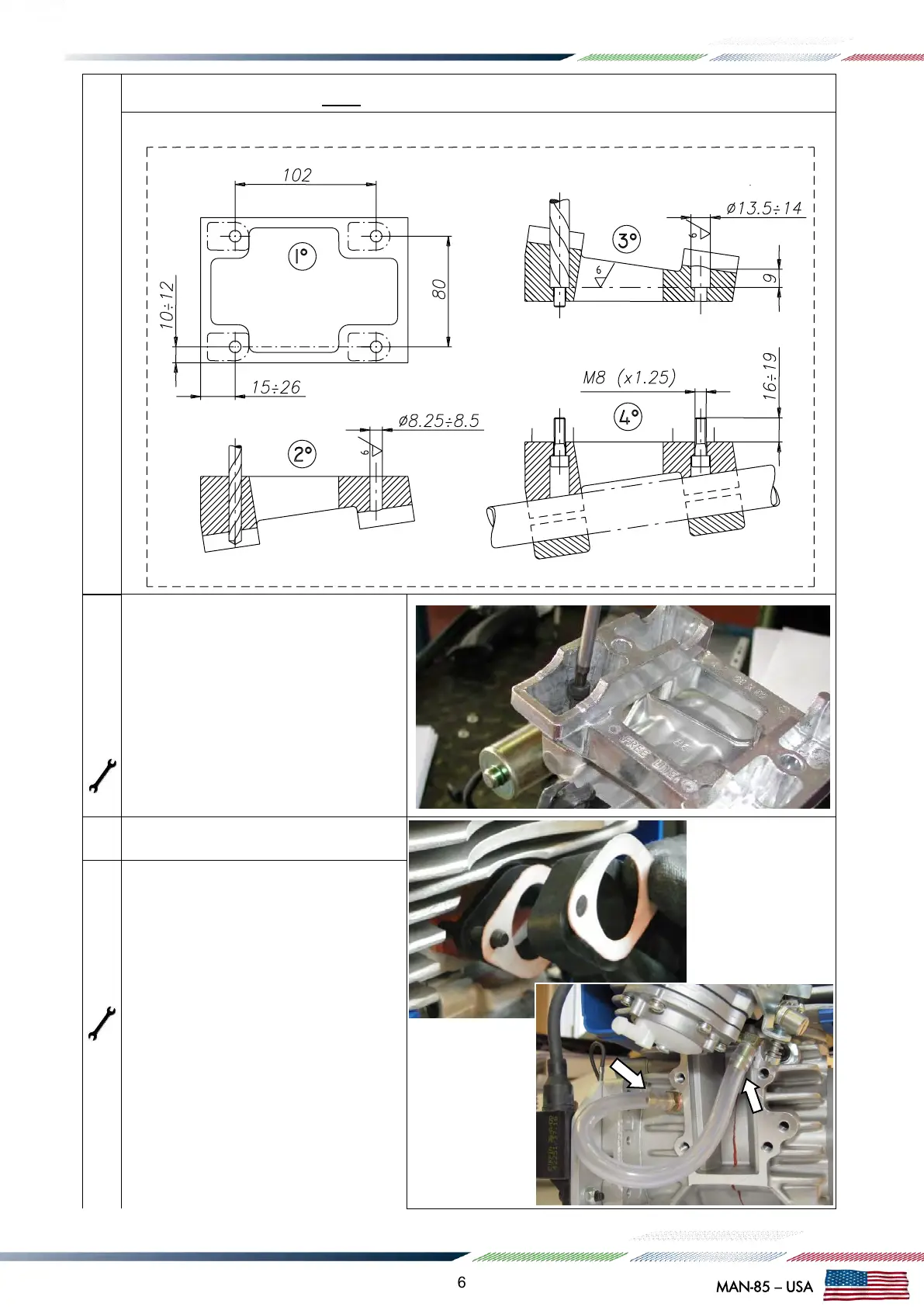

PREPARATION AND INSTALLATION OF THE MOTOR-MOUNT
NOTE: ALL THE DIMENSIONS ARE IN MILLIMETERS
3.3.1 DRILL 4 HOLES (DIAM. 8.5mm) INTO THE MOTOR-MOUNT .
3.3.2 INSTALL THE MOTOR-MOUNT. MAKE
SURE TO USE M8 ALLEN SCREWS WITH A
LENGTH SUCH AS TO ENGAGE, IN THE
CRANKCASE, A THREADED PORTION
LENGHT OF 16÷19mm (THE SCREW MUST
PROTRUDE FROM THE PLATE, FOR
(16÷19mm) (SEE FIG. 4 AND DRAW. )
4 ALLEN SCREWS M8
TORQUE AT 22÷24 Nm (190 ÷ 210 in-lb)
(6mm ALLEN WRENCH)
3.4
INSTALL THE CARBURETTOR
 REMOVE THE PLASTIC CAP
 KEEPING 1 CARBURETTOR GASKET ON
THE ENGINE, INSTALL:
(SEE FIG.10)
- N.2 THERMICAL SPACER
(15mm+11.5mm)
- N.2 CARBURETTOR GASKET
- CARBURETTOR
- N.2 COLOMN NUTS
12 POINT WRENCH 5mm
-CONNECT BY APPROPRIATE PIPE; THE
INTAKE PRESSURE MANIFOLD ON THE
CARBURETTOR AND THE INTAKE PRESSURE
MANIFOLD ON THE CRANKCASE.
MOTOR-MOUNT HORIZONTAL VIEW
Fig.4
Fig.10
