IAME MINI SWIFT 60CC - USA User Manual

5
MAN-85 – USA
3.2

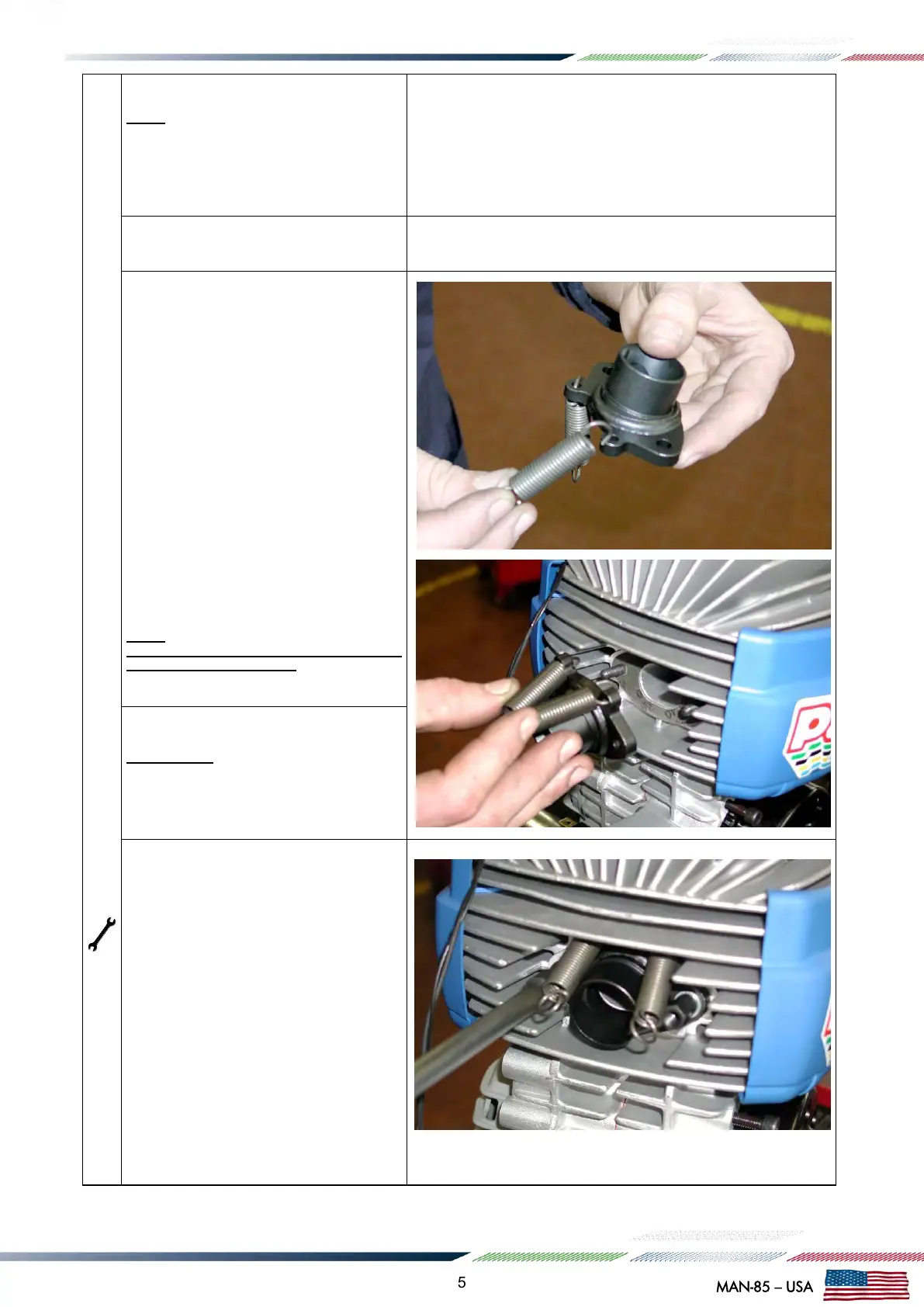

EXHAUST HEADER ASSEMBLY
NOTE:
THE ENGINE IS SUPPLIED WITH THE
EXHAUST GASKET AND NUTS ALREADY
INSERTED , WHEN THE SHIPMENT IS MADE
AN EXHAUST COVER GASKET IS PROVIDED
TO PROTECT THE INTERNAL PARTS.
3.2.1 REMOVE NUTS AND EXHAUST COVER.
3.2.2 INSTALL SPRINGS ON THE EXHAUST
HEADER (SEE FIG 1).
MAKE SURE THAT THE EXHAUST GASKET IS
IN SEAT AND INSTALL THE EXHAUST
HEADER (SEE FIG 2).
NOTE:
ON THE “BABY” VERSION THE EXHAUST
HEADER IS NOT REQUIRED.
3.2.3 INSTALL THE 2 WASHERS 6mm
SUGGESTION:
PUT THE ENGINE IN HORIZONTAL POSITION
(USE A SCREWDRIVER IF NECESSARY) AND
INSTALL THE WASHERS IN SEAT.
3.2.4 INSTALL THE 2 NUTS
(SEE FIG 3).
TORQUE AT 9 ÷ 11 Nm (80 ÷ 100 in-lb)
“T” WRENCH 10 mm
Fig.3
Fig.1
Fig.2
