IAME MINI SWIFT 60CC - USA - 3.6 Install the Clutch Cover with H.T. Coil; Install Clutch Cover and Coil

8
MAN-85 – USA
3.6
INSTALL THE CLUTCH COVER WITH
H.T. COIL

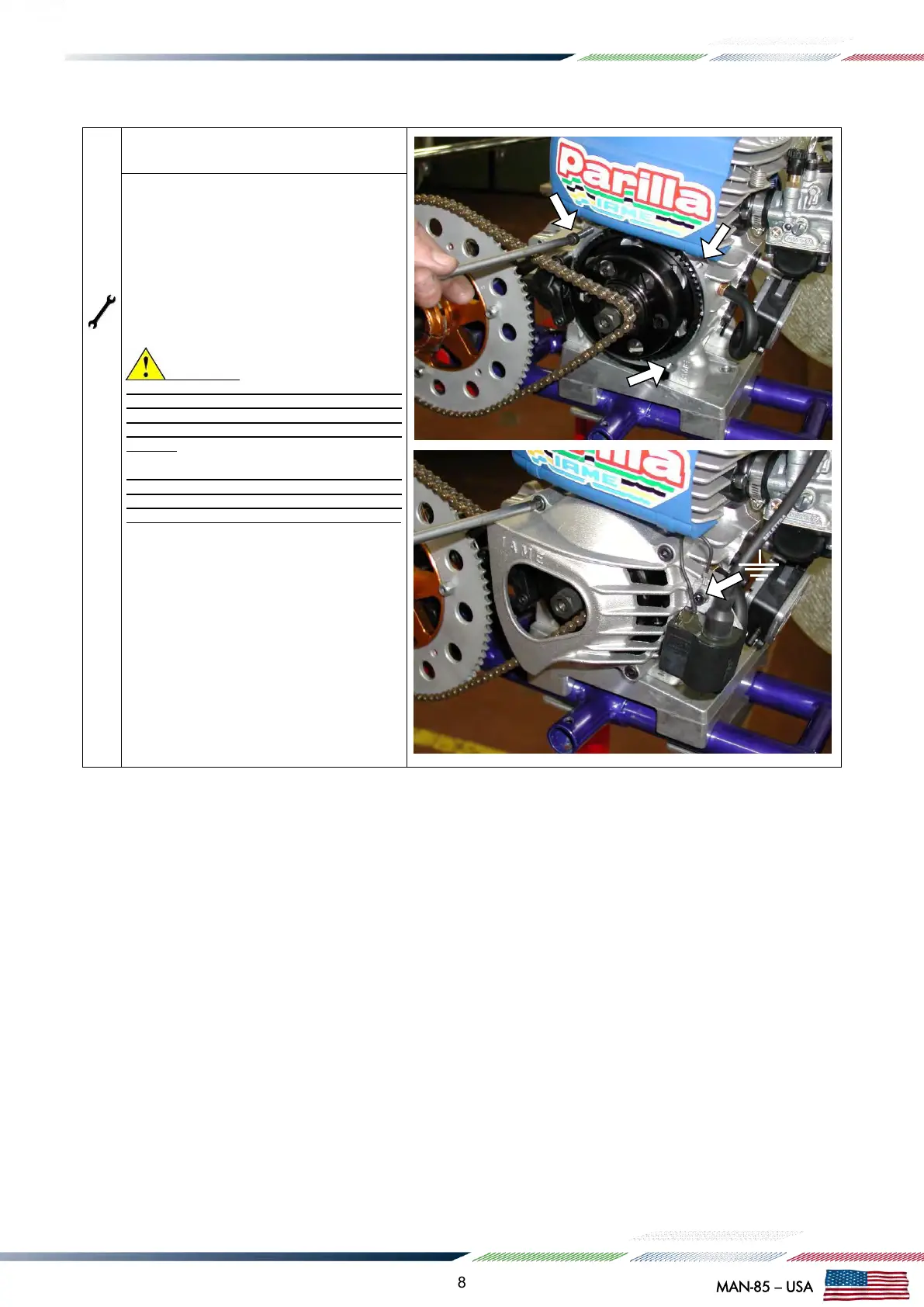

3.6.1 REMOVE THE 3 SCREWS M6x30 ON THE
CRANKCASE (SEE FIG. 16-A) AND INSTALL
THE CLUTCH COVER WITH H.T. COIL
(SEE FIG.16-B)
TORQUE THE 3 SCREWS AT 8 ÷ 10 Nm
(70 ÷ 90 In-lb)
(5 mm ALLEN WRENCH)
ATTENTION:
MAKE SURE THAT THE COPPER GROUND
CABLE ALWAYS CONNECTS THE COIL WITH
THE ENGINE. AN INADEQUATE GROUNDING
COULD DAMAGE THE IGNITION BEYOND
REPAIR.
THE POSITION OF THE H.T. COIL HAS BEEN
CHOSEN TO BE AS FAR AS POSSIBLE FROM
THE EXHAUST AS THE EXCESSIVE HEAT
COULD DAMAGE THE COIL BEYOND REPAIR.
Fig.16-A
Fig.16-B
