ELECTRICAL CONNECTIONS
(refer to the attached electrical schematic)

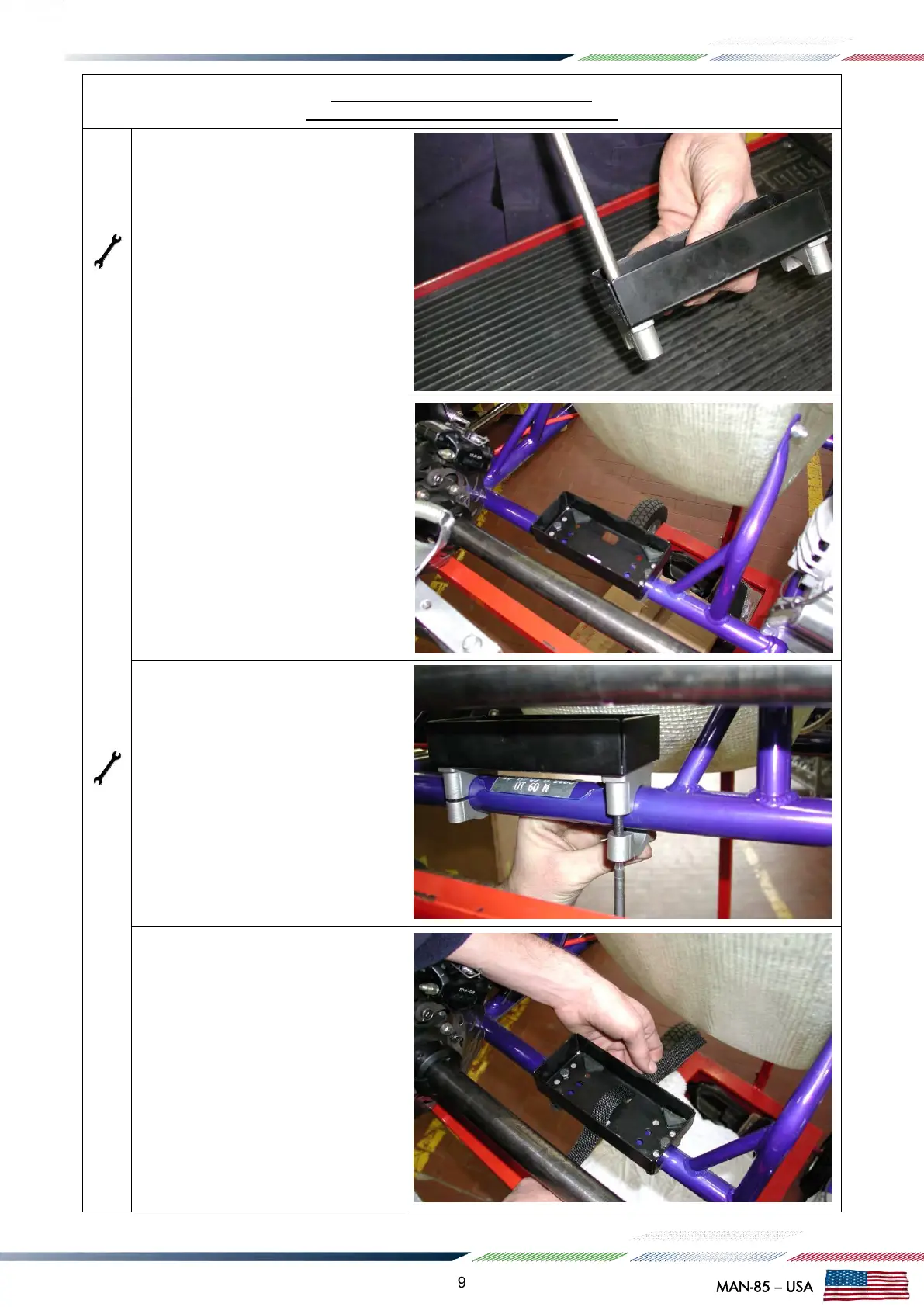

3.7
INSTALL THE CLAMPS ON THE BATTERY
SUPPORT (SEE FIG.17).
N°2 SCREWS M6x10
TORQUE SCREWS AT 8÷10 Nm
(70 ÷ 90 in-lb)
(12 POINT WRENCH 10 mm)
3.7.1 POSITION THE SUPPORT ON THE
CHASSIS REAR RAIL
(SEE FIG.18).
3.7.2 FIX THE CLAMPS (SEE FIG.19).
N° 2 SCREWS M6x25
TORQUE SCREWS AT 8÷10 Nm
(70 ÷ 90 in-lb)
(5 mm ALLEN WRENCH )
3.7.3 INSERT THE STRAP INTO THE
SUPPORT SLOTS
(SEE FIG.20).
Fig.18
Fig.19
Fig.20
Fig.17
