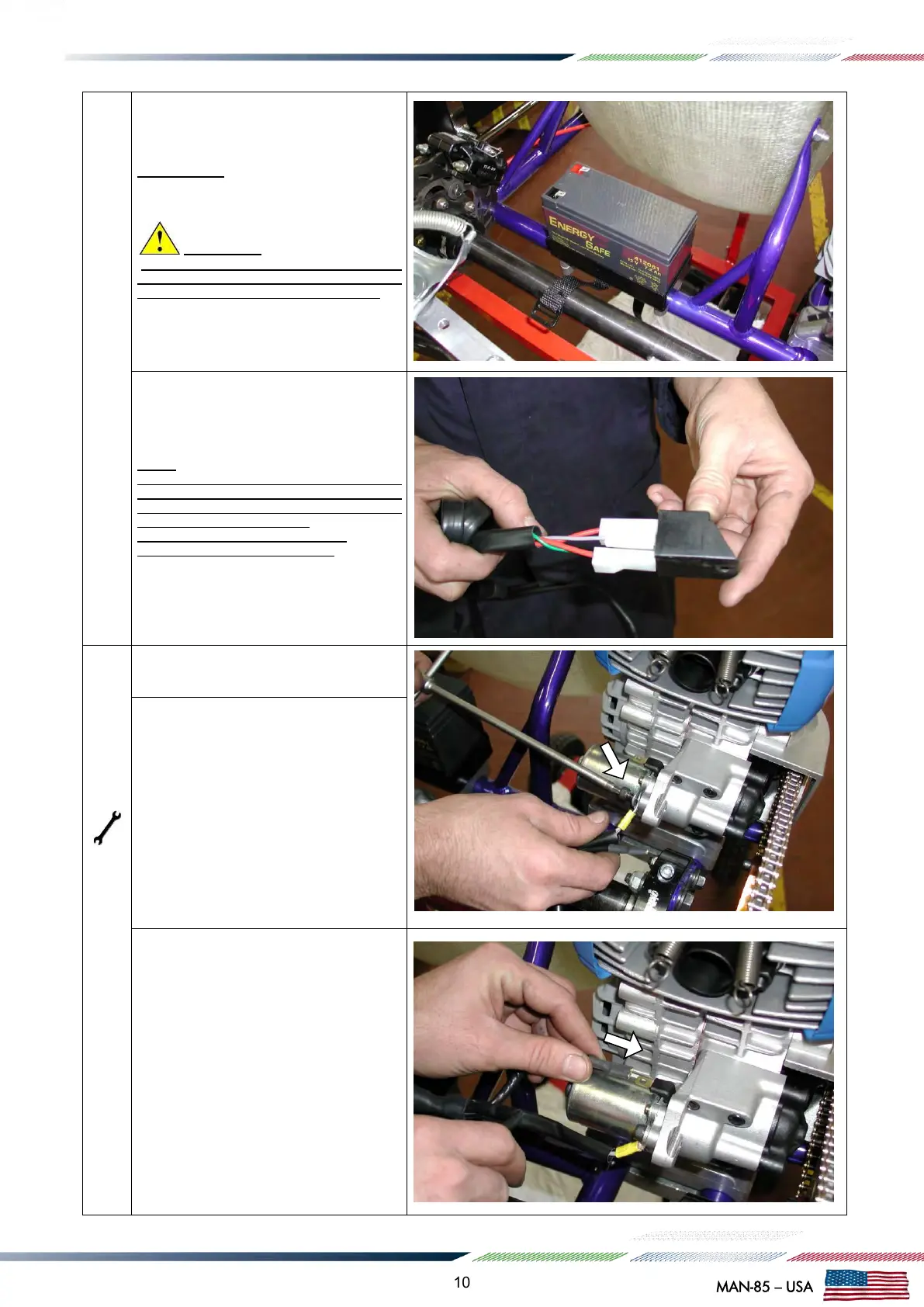

3.7.4 POSITION THE BATTERY ON THE
SUPPORT (SEE FIG.21).
SUGGESTION:
NEVER CONNECT THE BATTERY UNTIL
YOU ARE READY TO START THE ENGINE.
ATTENTION:
PAY ATTENTION NOT TO SHORT CIRCUIT
THE BATTERY TERMINALS AS BATTERY
COULD BE DAMAGED BEYOND REPAIR.
3.7.5 CONNECT THE STARTER RELAY TO
THE CABLE TERMINALS (SEE FIG.22).
NOTE:
THE 2 CABLES PROVIDED WITH 10mm
TERMINALS CAN BE INVERTED ON THE
STARTER RELAY, WITHOUT CAUSING ANY
MALFUNCTION PROBLEMS.
ALSO THE 2 CABLES WITH 6.3mm
TERMINALS CAN BE INVERTED .
3.8
ELECTRICAL CONNECTIONS ON
THE ENGINE (REFER TO THE
ATTACHED ELECTRICAL SCHEMATIC)
UNSCREW THE M6 SCREW ON THE
STARTER AND CONNECT THE GROUND
CABLE TO THE ENGINE.
(SEE FIG.23).
TORQUE SCREW AT 8÷10 Nm
(70 ÷ 90 in-lb)
(5 mm ALLEN WRENCH)
3.8.1 CONNECT THE TERMINAL (8mm) OF
THE HARNESS TO THE STARTER (SEE
FIG.24).
Fig.21
Fig.22
Fig.21
Fig.23
Fig.24
