IAME MINI SWIFT 60CC - USA - 3.8 Electrical Connections on the Engine (Continued); Connect Ignition Stator to Coil; Connect Stator to Harness; Secure Harness to Chassis

11
MAN-85 – USA

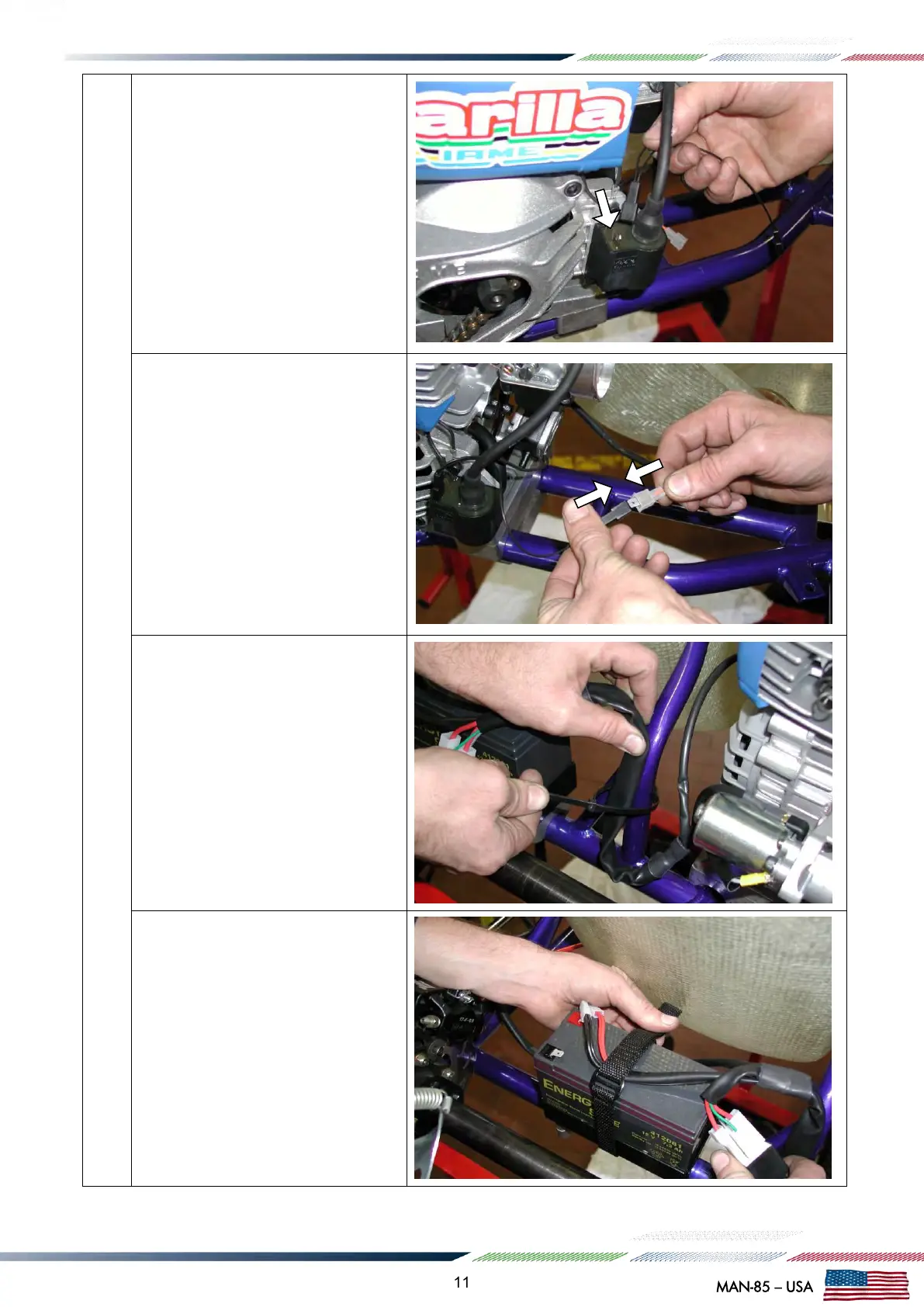

3.8.2 CONNECT THE TERMINAL OF THE
IGNITION STATOR TO THE H.T. COIL (SEE
FIG.25).
3.8.3 CONNECT THE SECOND TERMINAL
OF THE IGNITION STATOR TO THE "MALE"
CONNECTOR OF THE HARNESS (SEE
FIG.26).
3.8.4 FIX THE HARNESS WITH PLASTIC
CLAMPS, ALONG THE CHASSIS REAR RAIL
(SEE FIG.27).
3.8.5 FIX THE BATTERY AND HARNESS
TERMINALS BY MEANS OF THE STRAP
(SEE FIG.28).
Fig.25
Fig.26
Fig.27
Fig.28
