IAME MINI SWIFT 60CC - USA - 3.8 Electrical Connections on the Engine (Continued); Mount Starter Relay; Route Remaining Harness; Mount Push Button Bracket

12
MAN-85 – USA

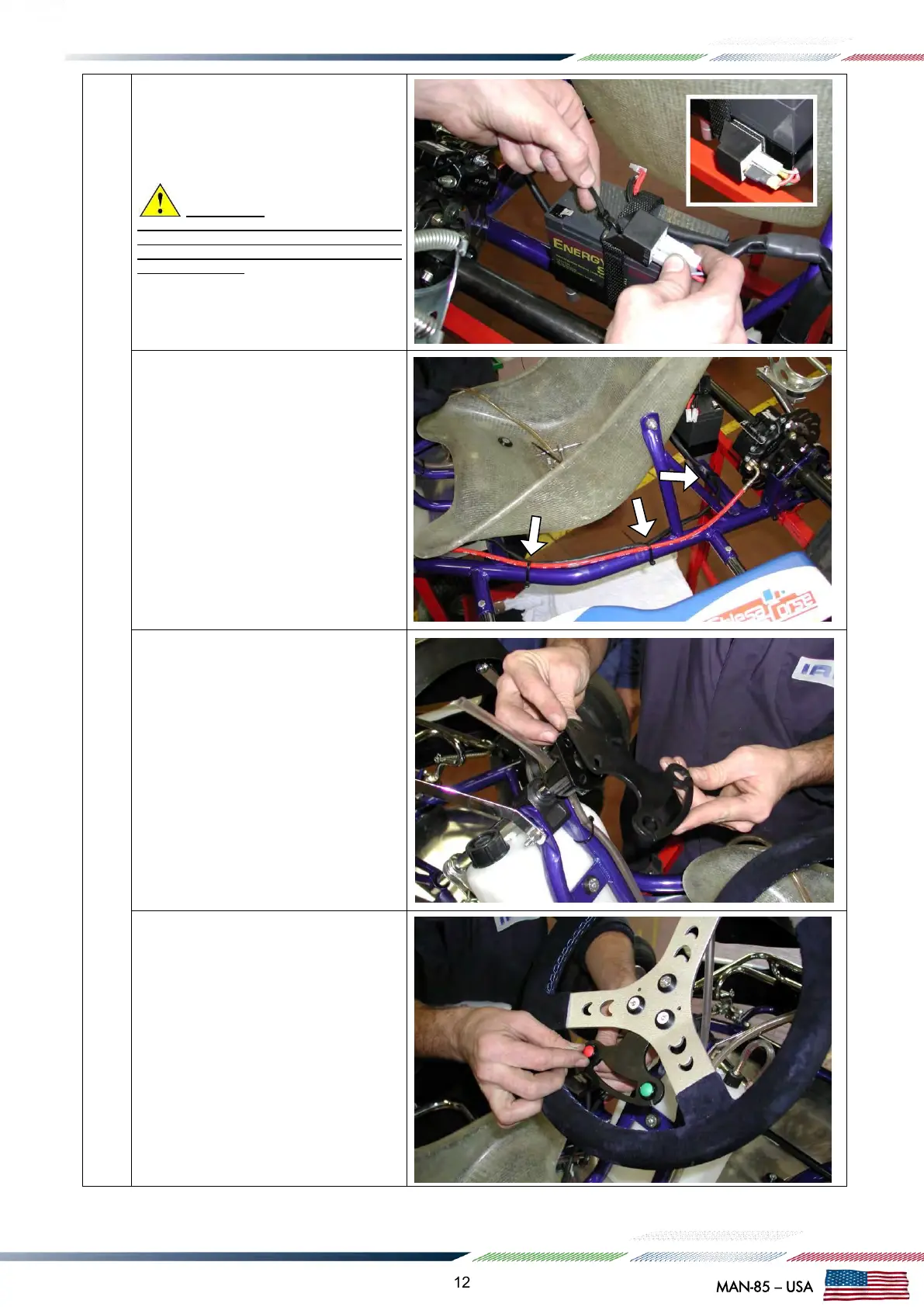

3.8.6 FIX THE STARTER RELAY TO THE
FIXING STRAP BY MEANS OF A CLAMP, OR
FIX IT TO THE BATTERY SUPPORT WITH
THE BIADHESIVE TAPE (SEE FIG.29).
ATTENTION :
NEVER LET THE HARNESS GET IN TOUCH
WITH THE GROUND OR WITH ROTATING
PARTS AS IT COULD BE DAMAGED
BEYOND REPAIR.
3.8.7 FIX THE REMAINING HARNESS
ALONG THE RAIL, BRAKE SIDE, WITH
PLASTIC CLAMPS.
(SEE FIG.30).
3.8.8 REMOVE THE STEERING WHEEL AND
POSITION THE PUSH BUTTON SUPPORT
BRACKET ON THE HUB. (SEE FIG.31).
3.8.9 ASSEMBLE THE PUSH BUTTONS INTO
THE SUPPORT BRACKET (SEE FIG.32).
Fig.29
Fig.27
Fig.30
Fig.31
Fig.32
