IAME MINI SWIFT 60CC - USA - 3.8 Electrical Connections on the Engine (Continued); Connect Button Connectors; Install Spark Plug Cap; Secure Spark Plug Cap

13
MAN-85 – USA

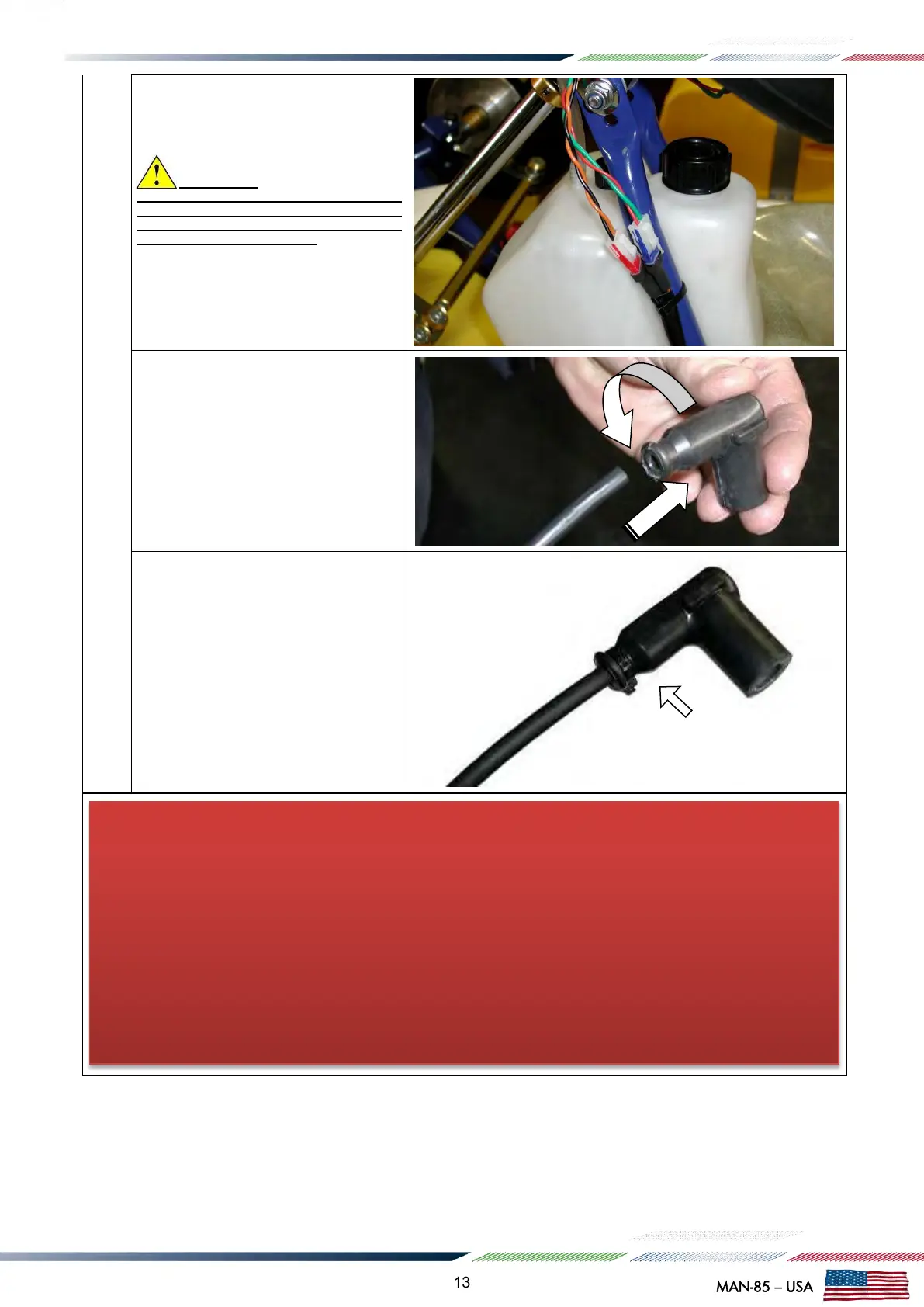

3.8.10 CONNECT THE BUTTON
CONNECTORS WITH THE HARNESS
CONNECTORS (SEE FIG.33).
ATTENTION :
PAY ATTENTION TO MATCH THE
CONNECTORS ACCORDING TO THE
CORRESPONDING COLOUR IN ORDER TO
CONNECT THEM PROPERLY.
3.8.11 TIGHTEN THE SPARK PLUG CAP ON
THE H.T. COIL CABLE
(SEE FIG. 34).
3.8.12 FIX THE SPARK-PLUG CAP ON THE
H.T. CABLE WITH A PLASTIC CLAMP (SEE
FIG. 35).
- INSTALL THE SPARK PLUG SUPPLIED
WITH THE ENGINE
TORQUE AT 20 ÷ 26 Nm (175 ÷ 230 in-lb)
- POSITION THE SPARK PLUG CAP ON THE
SPARK-PLUG.
Fig.33
Fig.34
Fig.35
Caution should be taken when installing the spark plug. Always clean and inspect the
spark plug threads before installation. Always apply anti seize compound, grease or oil.
- NEVER INSTALL THE SPARK PLUG WITHOUT SOME LUBRICATION -
You should be able to freely turn the plug into the head using only your fingers to turn
the plug. Do not force the plug with a tool or damage will occur. After rotating the plug
into the head by hand only. Torque to 175-230 lbs-in (20÷26 Nm).
