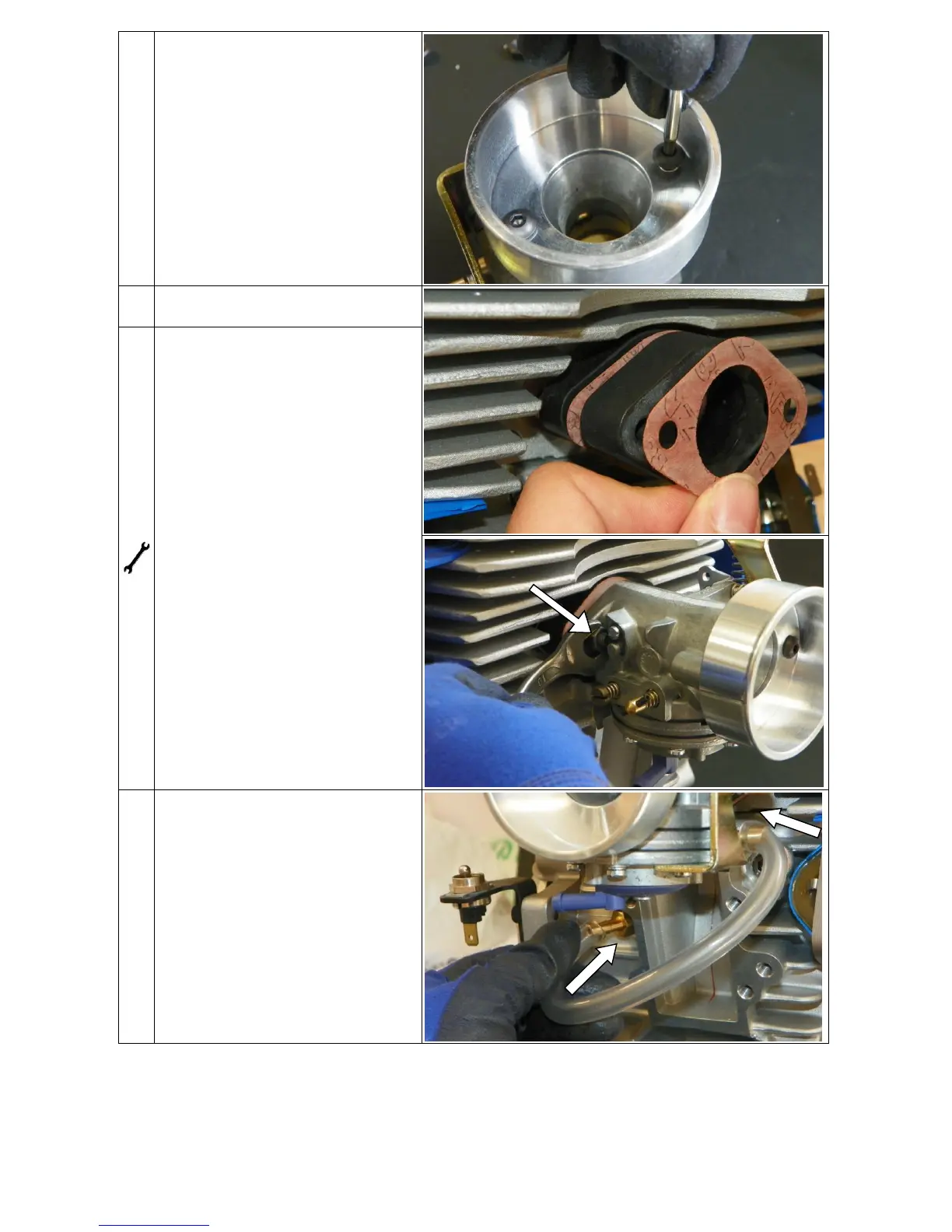

--INSTALL THE INTAKE SUPPORT
N°2 SCREWS M5x10
(SEE FIG. 10)
ALLEN WRENCH 3mm
3.4
INSTALL THE CARBURETTOR
 REMOVE THE N°2 M6 NUTS
 REMOVE THE PLASTIC CAP
 KEEPING 1 CARBURETTOR GASKETS ON
THE ENGINE , INSTALL:
(SEE FIG.11-12)
- N.2 THERMICAL SPACER
- N.2 CARBURETTOR GASKET
- CARBURETTOR
- N.2 NUTS M6
TORQUE AT 6 ÷ 10 Nm (50 ÷ 90 in-lb)
12 POINT WRENCH 10mm
-CONNECT BY APPROPRIATE PIPE; THE INTAKE
PRESSURE MANIFOLD ON THE CARBURETTOR
AND THE INTAKE PRESSURE MANIFOLD ON
THE CRANKCASE.
(SEE FIG.13)
Fig.13
Fig.13
Fig.10
Fig.11
Fig.12
