IAME Parilla Norswift 60cc User Manual

9 MAN-071
3.5

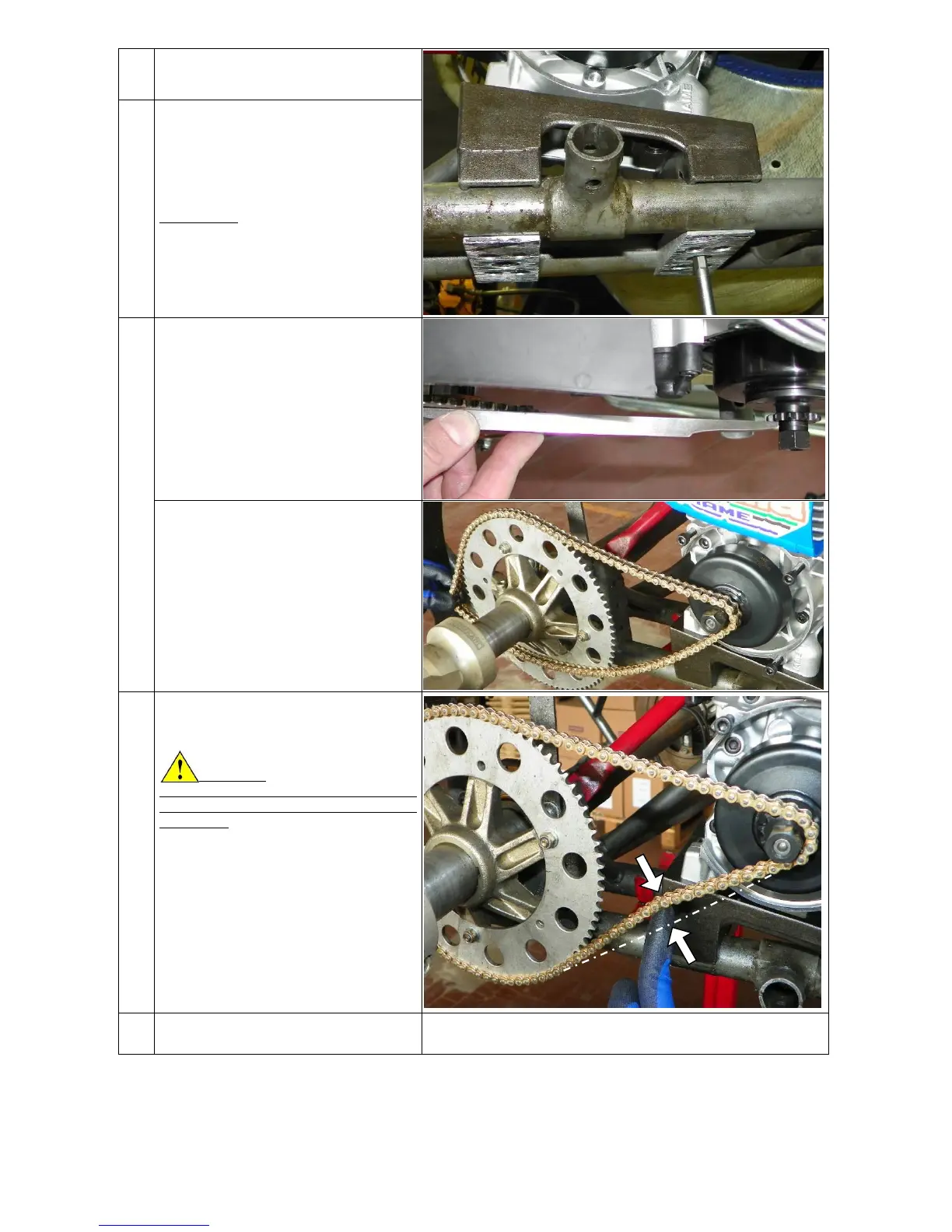

INSTALL ENGINE ON THE CHASSIS
-POSITION THE ENGINE ON THE 2 MAIN RAILS
AND FIX THE MOTOR-MOUNT WITH THE TWO
CLAMPS
(SEE FIG.14)
SUGGESTION:
NEVER TORQUE COMPLETELY THE CLAMPS
UNTIL THE CHAIN IS INSTALLED AND PROPERLY
ALIGNED.
-CHECK THE ALIGNMENT OF THE ENGINE
SPROCKET AND THE AXLE SPROCKET WITH A
STRAIGHT EDGE (SEE FIG. 15).
-INSTALL THE CHAIN
(PITCH : 7.775mm)
(SEE FIG. 16)
-MOVE THE ENGINE ON THE RAILS AND
OPTIMIZE THE CHAIN TENSION .
ATTENTION:
THE PLAY OF THE CHAIN MUST BE APPR. 15mm
(½÷¾ inch) MEASURED IN THE SHOWN POINT
(SEE FIG. 17)
-TORQUE THE CLAMP SCREWS
15mm
Fig.14
Fig.15
Fig.16
Fig.17
