IAME Parilla Norswift 60cc User Manual

7 MAN-071
3.3

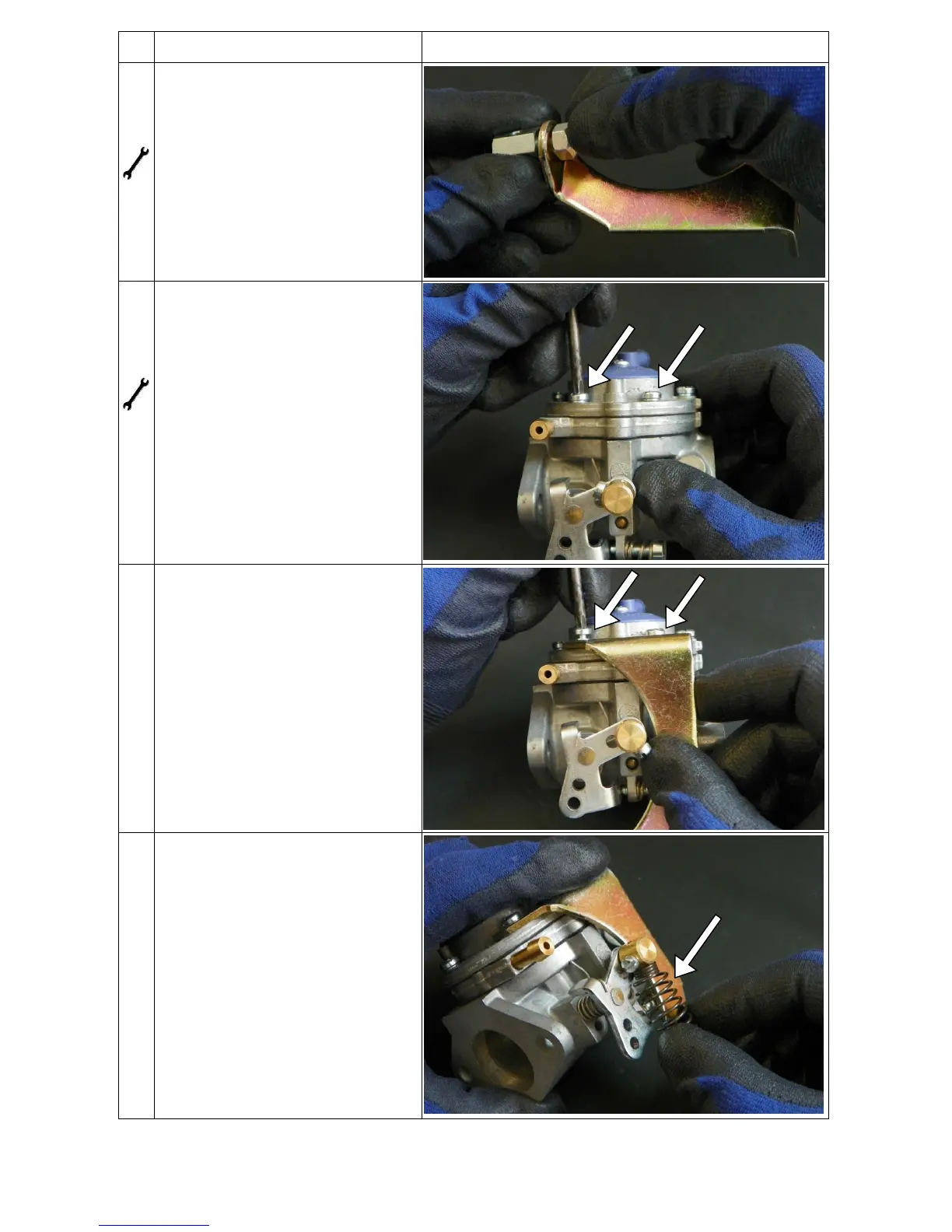

ASSEMBLING THE CARBURETTOR
-INSTALL THE GAS CABLE CLAMP ON THE
SUPPORT
(SEE FIG. 6)
12 POINT WRENCH 10mm
-REMOVE THE 2 SCREWS 3.5mm ON THE
CARB PUMP (IN CORRESPONDENCE OF THE
GAS CABLE BRACKET)
(SEE FIG. 7)
SCREWDRIVER 4.8 mm / TORX TOOL T20
-INSERT THE GAS CABLE BRACKET, THE 2
SCREWS AND TIGHTEN.
(SEE FIG. 8)
-INSTALL THE THROTTLE CABLE SPRING ON THE
CARBURETTOR
(SEE FIG. 9)
Fig.9
Fig.7
Fig.6
Fig.8
