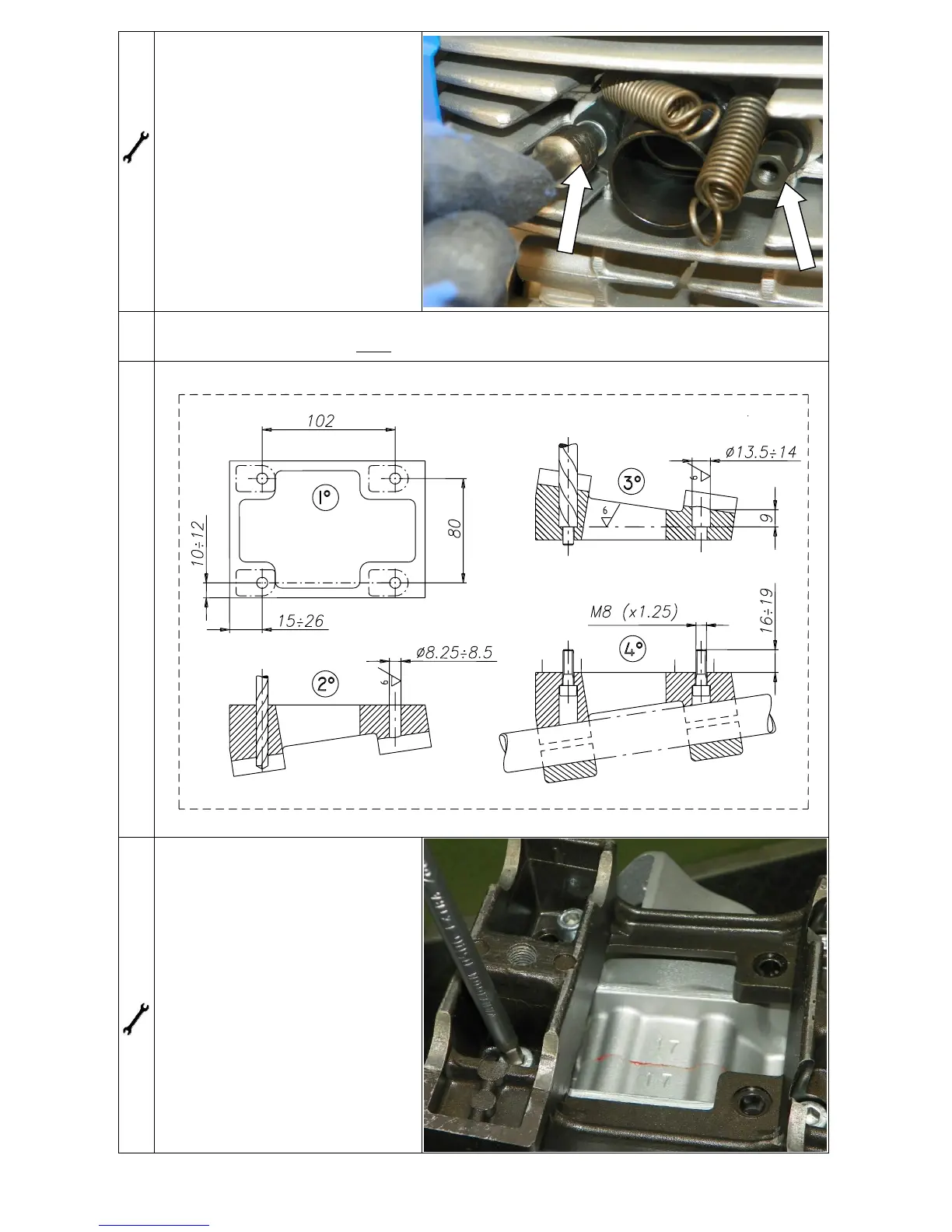

-INSTALL THE 2 NUTS
(SEE FIG. 4)
TORQUE AT 9 ÷ 11 Nm (80 ÷ 100 in-lb)
“T” WRENCH 10 mm
3.2
PREPARATION AND INSTALLATION OF THE MOTOR-MOUNT
NOTE: ALL THE DIMENSIONS ARE IN MILLIMETERS
-DRILL 4 HOLES (DIAM. 8.5mm) INTO THE MOTOR-MOUNT.
- INSTALL THE MOTOR-MOUNT. MAKE SURE TO
USE M8 ALLEN SCREWS WITH A LENGTH SUCH
AS TO ENGAGE, IN THE CRANKCASE, A
THREADED PORTION LENGHT OF 16÷19mm
(THE SCREW MUST PROTRUDE FROM THE
PLATE, FOR (16÷19mm).
(SEE FIG. 5 AND DRAW. )
4 ALLEN SCREWS M8
TORQUE AT 22÷24 Nm (190÷210 in-lb)
(6mm ALLEN WRENCH)
MOTOR-MOUNT HORIZONTAL VIEW
Fig.5
Fig.4
