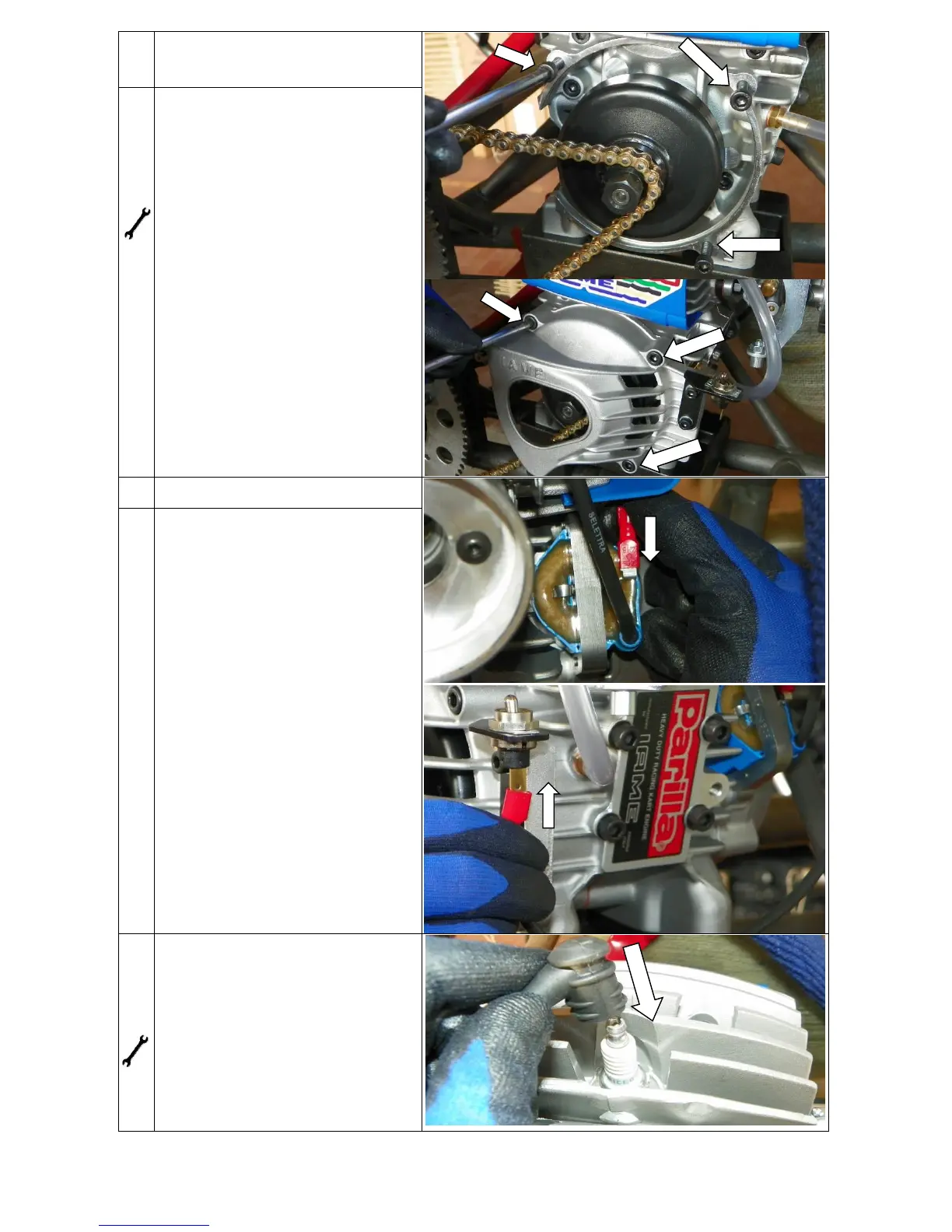

INSTALL THE CLUTCH COVER
-REMOVE THE 3 SCREWS M6x30 ON THE
CRANKCASE (SEE FIG. 18) AND INSTALL THE
CLUTCH COVER (SEE FIG.19).
TORQUE THE 3 SCREWS AT 8 ÷ 10 Nm
(70 ÷ 90 in-lb)
5 mm ALLEN WRENCH
3.7
ELECTRICAL CONNECTION
-CONNECT THE COIL CABLE (SMALL ONE) TO
THE TERMINAL ON THE COIL.
(SEE FIG. 20).
-CONNECT THE COIL CABLE AT THE TERMINAL
ON THE ON/OFF SWITCH
(SEE FIG. 21).
-INSTALL THE SPARK PLUG ON THE CYLINDER
HEAD AND INSTALL THE SPARK PLUG CAP.
MAKING SURE THAT THE SPARK PLUG CAP IS
WELL INSERTED IN THE SPARK PLUG.
(SEE FIG. 22)
HEXAGONAL PIPE WRENCH 20.8
TOURQUE SPARKPLUG AT 20÷26 Nm (175÷230
in-lb)
Fig. 22
Fig. 19
FIG. 20
Fig. 21
Fig. 20
Fig. 18
