5 MAN-071
3- PREPARATION AND INSTALLATION OF THE ENGINE ON THE CHASSIS
NOTE:
In case the engine is supplied already assembled on to the chassis, it is at care of the assembler to follow these
instructions. The final customer, in this case, can skip this section and can start reading from section 4.
Whenever the engine or a component is disassembled, it is necessary to always follow the under shown
instructions for proper reassembly.
3.1

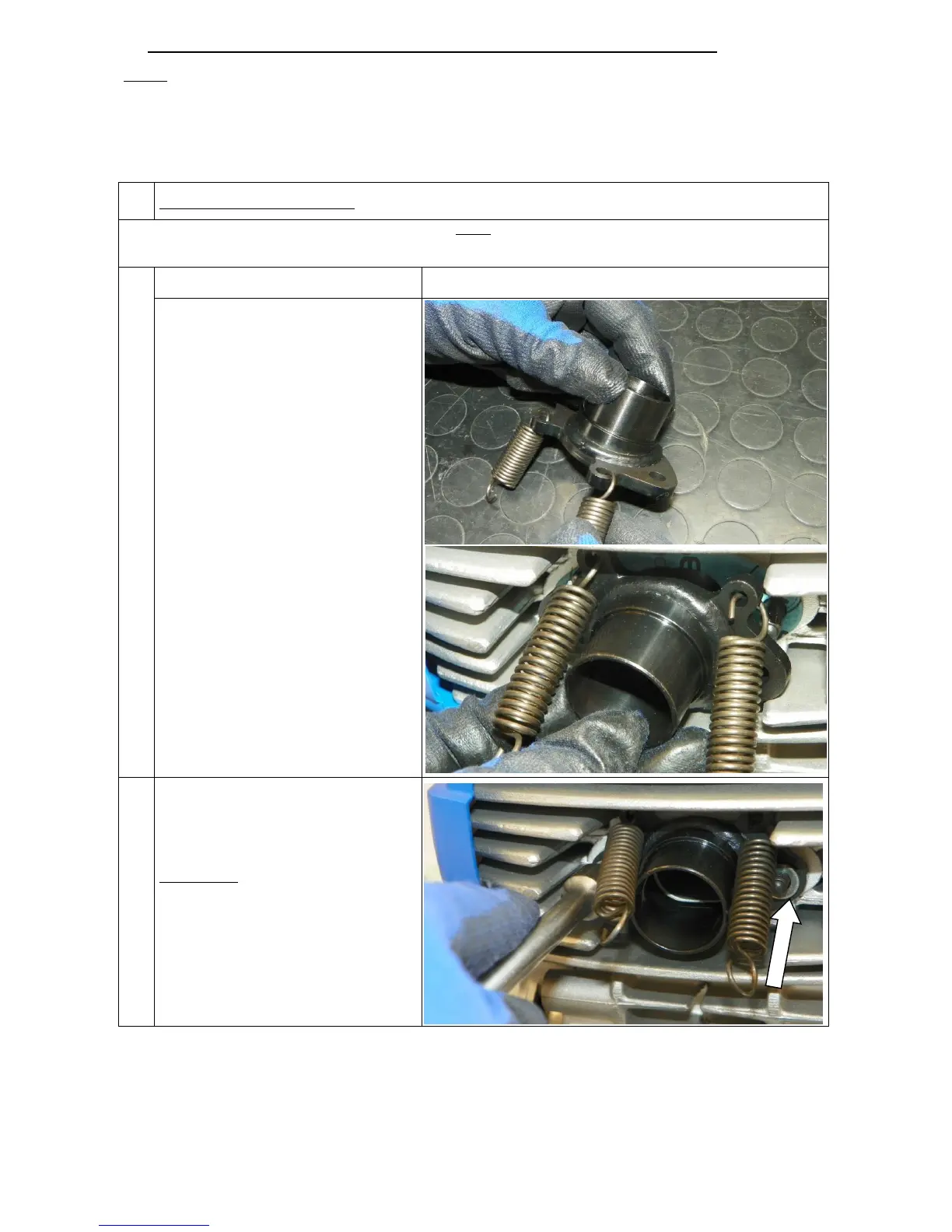

EXHAUST HEADER ASSEMBLY
NOTE:
THE ENGINE IS SUPPLIED WITH THE EXHAUST GASKET AND NUTS ALREADY INSERTED , WHEN THE SHIPMENT IS MADE AN
EXHAUST COVER GASKET IS PROVIDED TO PROTECT THE INTERNAL PARTS.
-REMOVE THE EXHAUST COVER GASKET AND
THE NUTS.
-INSTALL SPRINGS ON THE EXHAUST
HEADER
(SEE FIG. 1)
MAKE SURE THAT THE EXHAUST GASKET IS IN
SEAT AND INSTALL THE EXHAUST HEADER.
(SEE FIG. 2)
-INSTALL THE 2 WASHERS 6mm
(SEE FIG. 3)
SUGGESTION:
PUT THE ENGINE IN HORIZONTAL POSITION
(USE A SCREWDRIVER IF NECESSARY) AND
INSTALL THE WASHERS IN SEAT.
Fig.1
Fig.2
Fig.3
