165

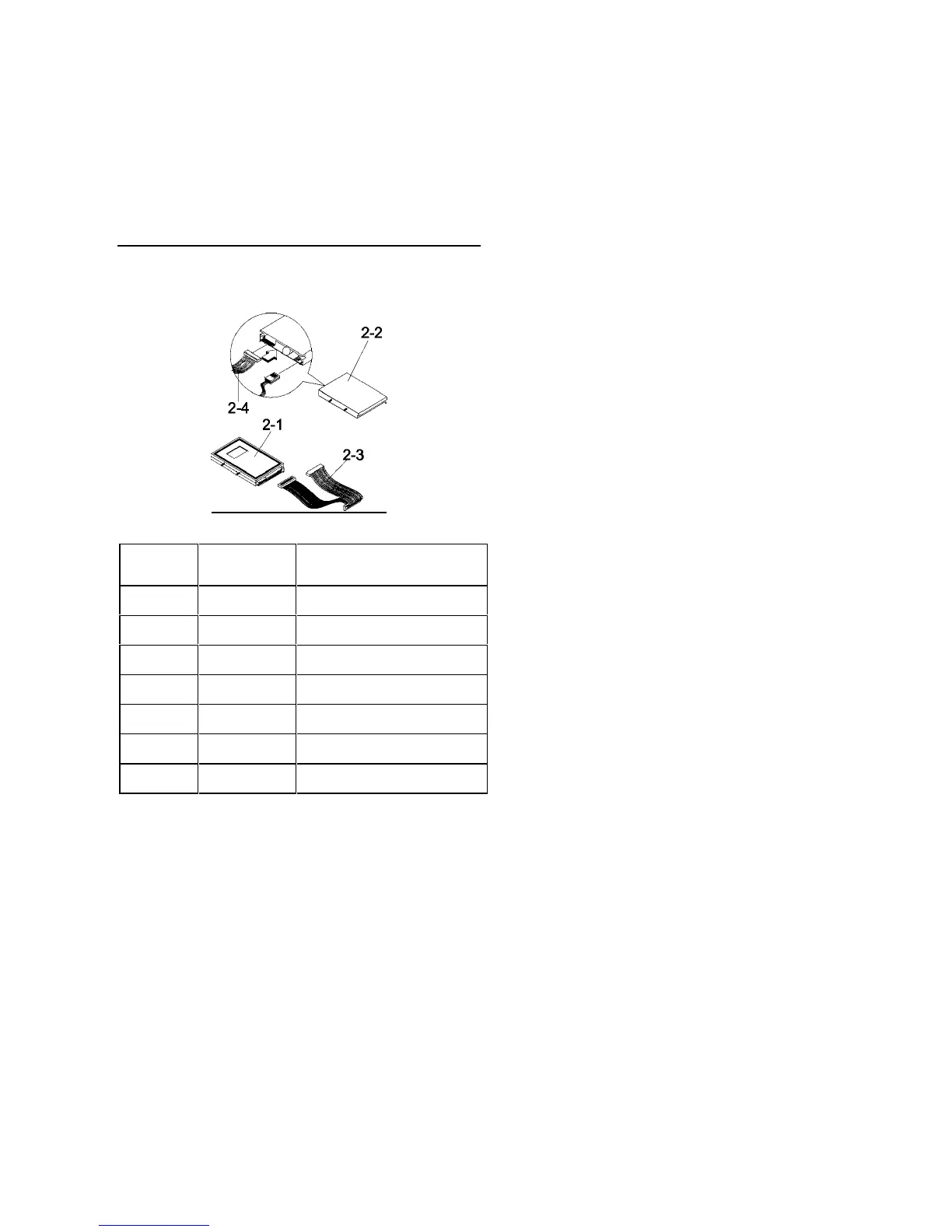

A
ssembl
y 2: Diskette Drive, Hard Disk Drive
A
sm-I
ndex
FRU Number
Descrip
tion
2-1
19K3298
5 GB
Hard Disk Drive
, 3.5”
2-1
10K2059
10 GB Hard Disk Drive, 3.5”
2-1
19K3299
15 GB Hard Disk Drive, 3.5”
2-1
19K3355
20 GB Hard Disk Drive, 3.5”
2-2
36L9130
3.
5”, Diskett
e Drive
2-3
19K3341
Hard Disk Drive Cable
2-4
19K3340
Diskette Drive Cable
176
178
Table of Contents
Default Chapter
9
Table of Contents
9
Notices
13
Voltage Supply Switch Settings
13
Safety Information
14
Laser Compliance Statement
40
Trademarks
41
Preface
42
General Information
43
Introduction
44
Product Overview
44
Hardware Interfaces
48
CMOS Reset
50
Flash (BIOS) Update Procedure
50
BIOS-Contained Model Number and Serial Number
51
BIOS Setup Utility
52
Working with the Setup Menus
52
Start Options
54
Advanced Setup
56
Power Management Setup
59
ISA Legacy Resource
61
Set Password
61
Specifications
62
Operating Requirements
63
Special Tools
63
Check Procedures
65
Introduction
66
Start
67
Index of Symptoms, Messages, Error Codes, or Beeps
71
Troubleshooting
88
Factory-Installed Storage Devices
89
Factory-Installed Modem Card
91
Audio (Not Supported by Diagnostics Program)
93
CD-ROM Drive
95
Memory
96
Keyboard
97
Mouse
98
Power Supply
100
Monitor
103
Undetermined Problems
105
Diagnostic Aids
107
Introduction
108
Power-On Self Test
108
Diagnostics Tools
109
Using Diagnostics Program from Recovery CD
109
Diagnostics Program Features
110
Repair Information
113
Removals and Replacements for Machine Types 2193, 2194 and 6345
114
Removals and Replacements for Machine Type 2193, 2194 and 6345
114
Identifying the Parts of the System Unit
115
Top Cover
117
Adapter Cards
118
Diskette Drive
120
CD-ROM Drive
122
Hard Disk Drive
123
System Board
124
Power Supply
127
Memory (DIMM)
127
Removals and Replacements for Machine Types 2196, 2197
128
And 6344
128
Removals and Replacements for Machine Type 2196, 2197
128
Identifying the Parts of the System Unit
129
Top Cover
131
Adapter Cards
132
Diskette Drive
133
CD-ROM Drive
134
Hard Disk Drive
135
System Board
136
Power Supply
139
Memory (DIMM)
139
Parts/Test Point Locations
141
Introduction
142
Layout of the System Board of Machine Types 2197 and 6344
143
Jumper Settings
144
Connectors and Functions
145
Layout of the System Board of Machine Types 2193 and 2196
146
Jumper Settings
147
Connectors and Functions
148
Power Supply Cable Connector Specifications
149
Main Output Pin Assignment
150
Factory-Installed Modem Card Layout
152
Factory-Installed Modem Card Connector Functions
152
3.5-In. Hard Disk Drive Jumper Locations & Settings
153
CD-ROM Drive
154
Rear Panel Connectors and Features
155
CD-ROM Drive Jumper Settings
155
DIMM Configurations
156
System Board Connector Pin Signals
156
Monitor Port Signals
156
Serial Port Signals
156
Parallel Port Signals
157
Mouse Port Signals
157
Keyboard Port Signals
157
Diskette Drive Cable Connector Signals
158
IDE Cable Connector Signals
159
Safety Inspection Guide
161
General Guidelines
162
Parts Catalog
163
Parts Catalog of Machine Type 2193, 2194 and 6345
164
Assembly 1 : System Unit
164
Assembly 2 : Diskette Drive, Hard Disk Drive
167
Assembly 3 : CD-ROM, Modem Card
168
Assembly 4 : Keyboard and Mouse
170
Parts Catalog of Machine Type 2196, 2197 and 6344
174
Assembly 1: System Unit
174
Assembly 2: Diskette Drive, Hard Disk Drive
177
Assembly 3: CD-ROM, Modem Card
178
Assembly 4: Keyboard and Mouse
180
Appendix A. Online Support Information
184
Appendix B. System Board of Machine Types 2194 and 6345
185
