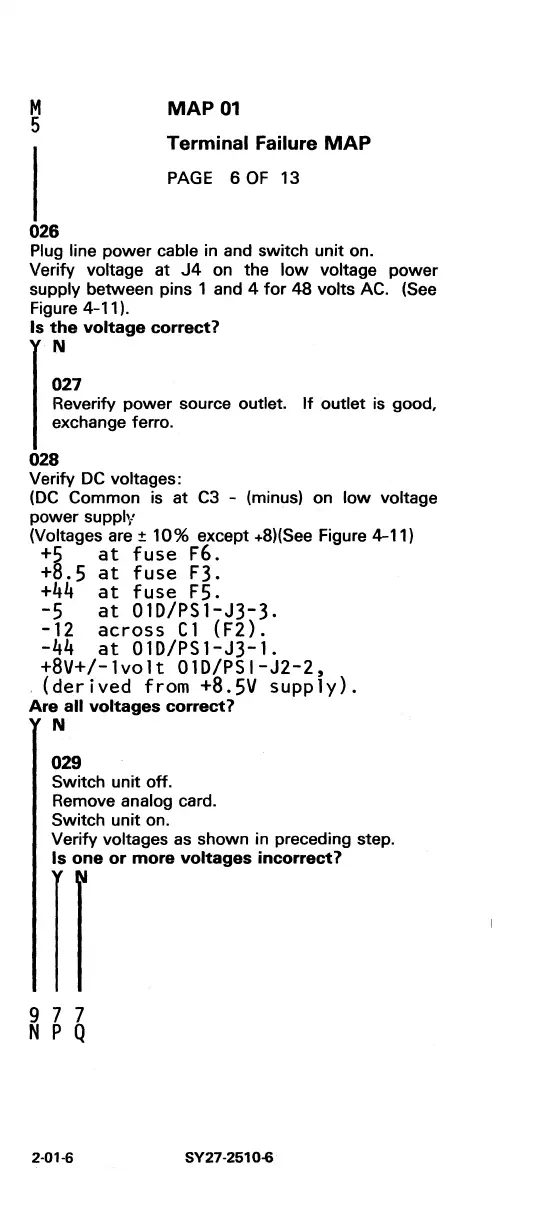

M
5
MAP
01
Terminal
Failure
MAP
PAGE 6
OF
13
026
Plug line
power
cable
in
and switch
unit
on.
Verify
voltage
at
J4
on the
low
voltage
power
supply between pins 1 and 4
for
48
volts AC. (See
Figure 4-11).
Is
the
voltage
correct?
1
:27
Reverify
power
source outlet.
If
outlet
is good,
exchange ferro.
028
Verify DC voltages:
(DC Common is at C3 - (minus)
on
low
voltage
power
supply
(Voltages are ±
10%
except +8)(See Figure 4-11)
+5
at
fuse
F6.
+8.5
at
fuse
F3.
+44
at
fuse
F5.
-5
at
010/PS1-J3-3.
-12
across
Cl
(F2).
-44
at
010/PS1-J3-1.
+8V+/-lvolt
010/PSI-J2-2,
.
(derived
from +8.5V
supply).
Are all
voltages
correct?
N
029
Switch unit
off.
Remove analog card.
Switch
unit
on.
Verify voltages
as
shown in preceding step.
Is
one
or
more
voltages
incorrect?
11
977
N P Q
2·01·6
SY27-2510-6
