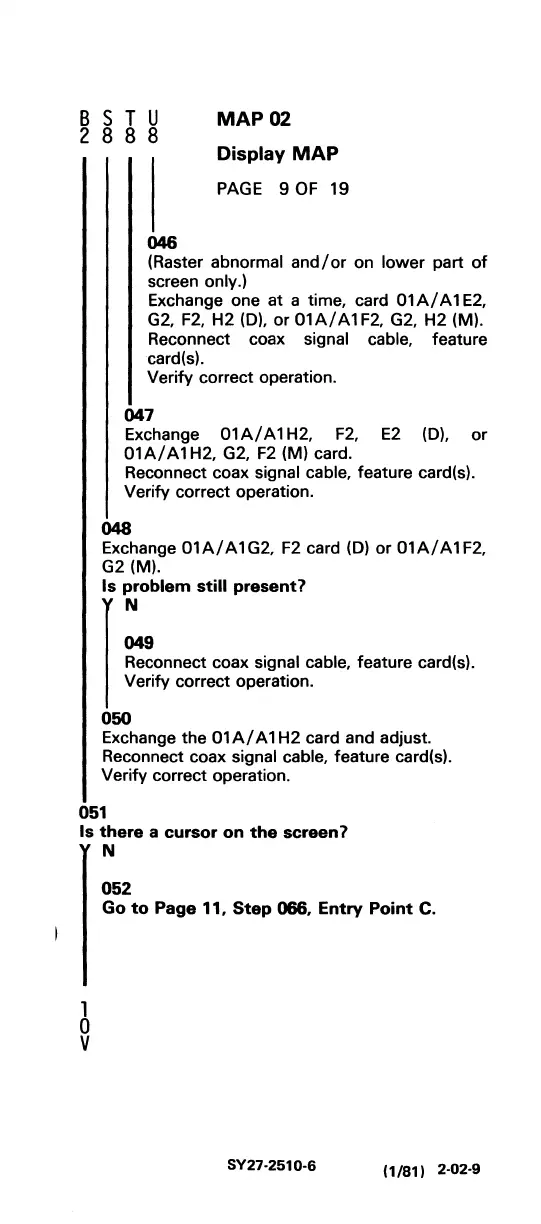

IBM 3278 Series

B STU
2 888
MAP 02
Display
MAP
PAGE 9 OF 19
046
(Raster abnormal and/or on lower part of
screen only.)
Exchange one at a time, card 01 A/ A 1 E2,
G2, F2, H2 (0), or 01 A/ A 1 F2, G2, H2 (M).
Reconnect coax
signal cable, feature
card(s).
Verify correct operation.
047
Exchange 01 A/ A 1 H2, F2, E2 (0), or
01 A/A 1 H2, G2, F2 (M) card.
Reconnect coax
signal cable, feature card(s}.
Verify correct operation.
048
Exchange 01A/A1G2, F2 card (0) or 01A/A1F2,
G2 (M).
Is problem still present?
r
~
Reconnect coax signal cable, feature card(s}.
Verify correct operation.
050
Exchange the 01 A/ A 1 H2 card and adjust.
Reconnect coax
signal cable, feature card(s}.
Verify correct operation.
051
Is there a cursor on the screen?
N
052
Go to Page 11, Step 066, Entry Point C.
1
o
V
SY27·251 0·6
(1/81) 2·02·9
