IBM 3278 Series

W
1
o

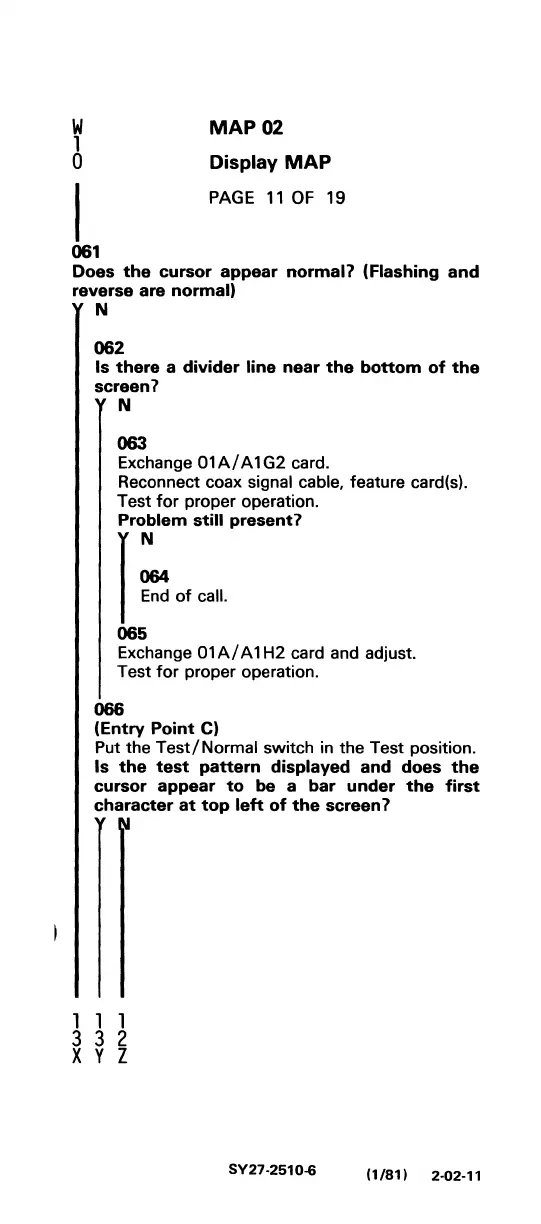

MAP 02
Display
MAP
PAGE 11 OF 19
061
Does the cursor appear normal? (Flashing and
reverse are normal)
N
062
Is there a divider line near the bottom of the
screen?
N
063
Exchange 01 A/ A 1 G2 card.
Reconnect coax
signal cable, feature card(s).
Test
for proper operation.
Problem still present?
l
~
End of call.
065
Exchange 01 A/ A 1 H2 card and adjust.
Test
for proper operation.
066
(Entry Point C)
Put the
Test/Normal switch in the Test position.
Is the test pattern displayed and does the
cursor appear to be a bar under the first
character at top left of the screen?
1 1 1
332
X y Z
SY27-2510-6
(1181) 2-02-11
