MAP 04
Feature
Error
MAP
PAGE
8
OF
15
(Entry
Point
OJ

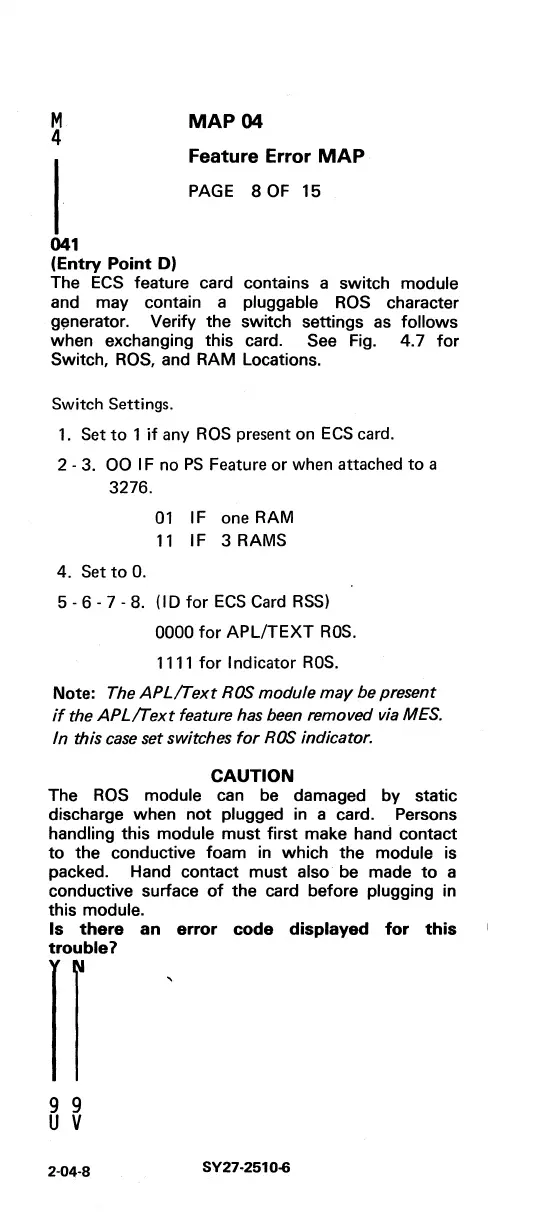

The
ECS
feature card contains a switch module
and may contain a pluggable
ROS
character
generator. Verify the switch settings
as
follows
when exchanging this card. See Fig.
4.7
for
Switch,
ROS,
and RAM Locations.
Switch Settings.
1.
Set
to
1
if
any
ROS
present on
ECS
card.
2 - 3.
00
I F no
PS
Feature
or
when attached
to
a
3276.
4. Set
to
O.
01
IF one RAM
11
IF 3 RAMS
5 - 6 - 7 -
8.
(ID
for
ECS
Card
RSS)
0000
for
APL!TEXT
ROS.
1111
for
Indicator
ROS.
Note: The
APL!Text
ROS
module
may
be present
if
the
APL!Text
feature
has
been removed
via
MES.
In
this
case
set switches
for
ROS
indicator.
CAUTION
The
ROS
module can be damaged by static
discharge when not
plugged in a card. Persons
handling this module
must
first
make hand contact
to
the conductive foam in which the module is
packed. Hand contact
must
also· be made
to
a
conductive surface
of
the card before plugging in
this
module.
Is
there
an
error
code
displayed
for
this
trouble?
If
9 9
U V
2·04-8
SY27-2510-6
