IBM 3278 Series

K L W X
4 4 9 9

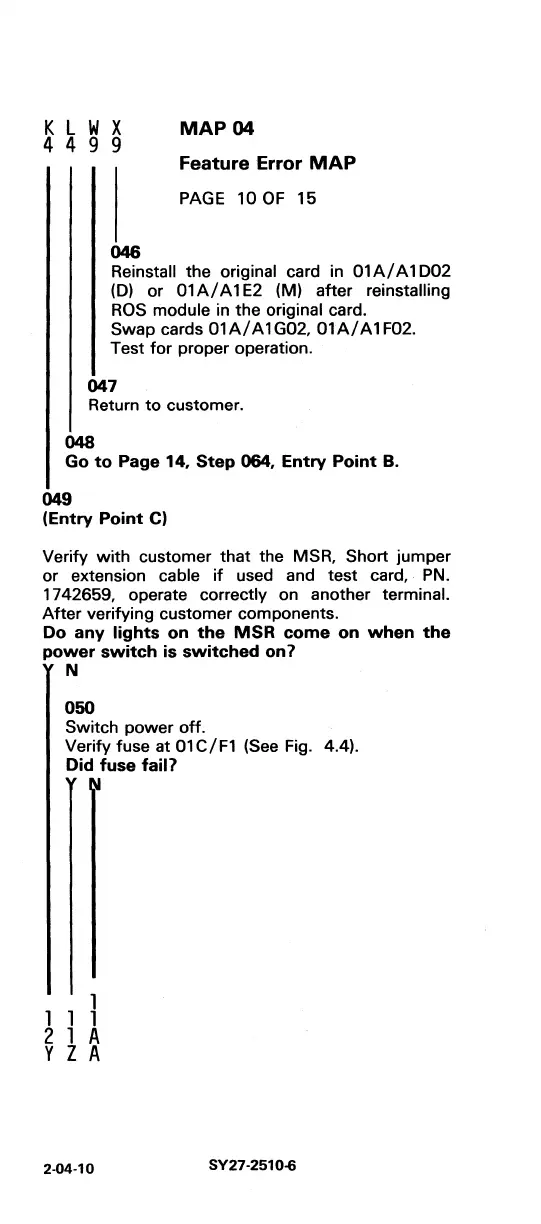

MAP 04
Feature Error MAP
PAGE 10 OF 15
046
Reinstall the original card in 01 AI A 1 D02
(D) or 01 AlA 1 E2 (M) after reinstalling
ROS module in the original card.
Swap cards 01 AI A 1 G02, 01 AI A 1 F02.
Test
for proper operation.
047
Return to customer.
048
Go to Page 14. Step 064. Entry Point B.
049
(Entry Point C)
Verify with customer that the MSR, Short jumper
or extension cable if used and test card, PN.
1742659, operate correctly on another terminal.
After verifying customer components.
Do any lights on the MSR come on when the
power switch is switched on 7
N
050
Switch power off.
Verify fuse at 01 e/F1 (See Fig. 4.4).
Did fuse fail?
1
1 1 1
2 1 A
Y Z A
2·04·10
SY27·2510-6
